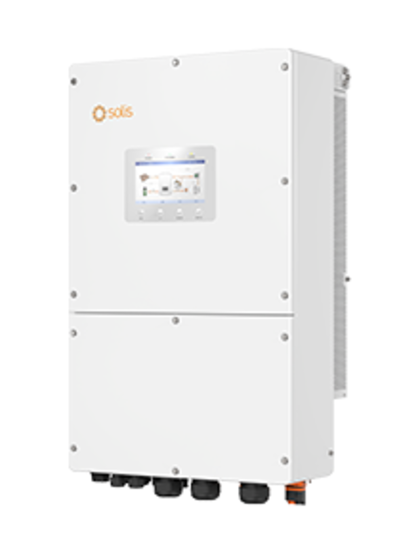

The Solis S6 Hybrid inverter range offers advanced features suitable to meet and excel in todays solar market. Smart LCD display, generator integration and so much more.
Features:
- Allowable PV of up to 100kW, on the 180-1000V MPPT.
- 4-MPPTs, rated at 40A each, with 2-string inputs each allowing for 8 strings of high power/current PV modules.
- Supports Grid and Generator AC inputs.
- Parallel up to 6 x inverters for up to 300kW of back-up load.
- Battery Charge and Discharge current of up to 140A.
- UPS transfer time of less than 10ms.
- 160% surge power for 2s to accommodate inductive loads.
- Integrated AFCI (DC arc-fault circuit protection) – mitigating fire risks.
- LCD display and remote firmware upgrades with included S4 Wi-Fi/LAN Stick and Solis Cloud support/monitoring.
- Solis reliability with 5-year warranty. (extendable to 10/15/20-years)
Supplier Part No:S6-EH3P50K-H-EUWeight:73 kgRated Power:50,000 WMin PPT Voltage:180 VMax PPT Voltage:850 VDC Startup Voltage:180 VDC Shutdown Voltage:150 VMax Input Voltage:1,000 VMax DC Power:100,000 WMax AC Power (5 Minutes):50,000 WSurge AC Power (1 Second):80,000 WMax DC Current:160 AMax DC Inputs:8Has DC Fuses:0Connector:MC4 Included Connectors:8Euro Efficiency:97.4 %Transformer:NoneMPPT Quantity :4Has Integrated DC Switch:YesWarranty:5 years
