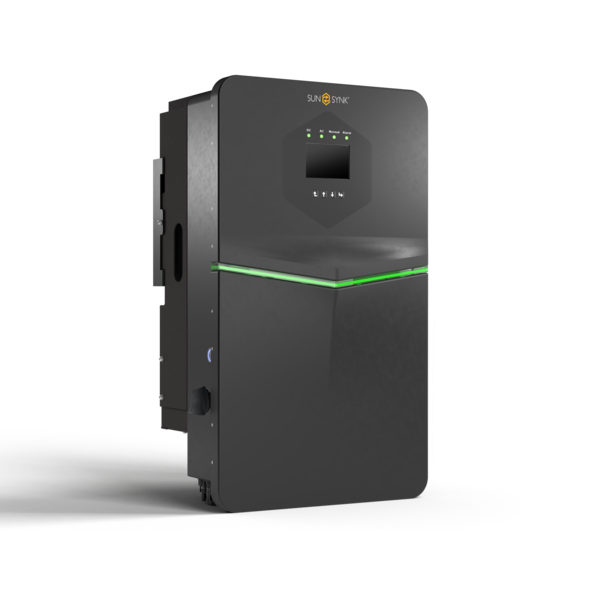

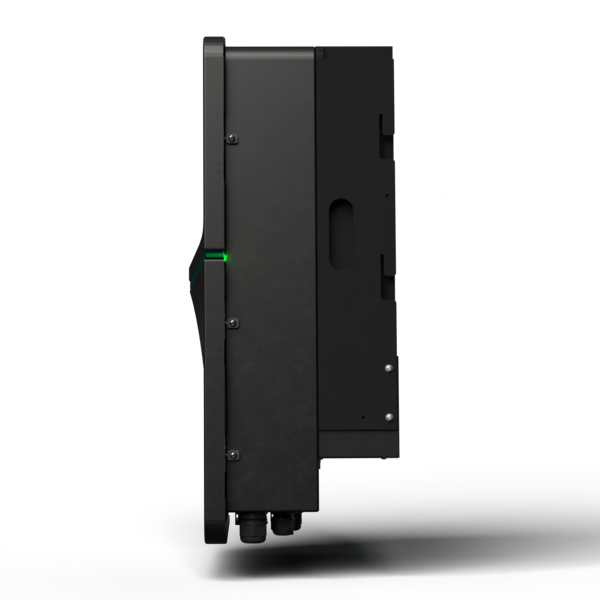

Sunsynk Acure 7kW Black Single-Phase Hybrid Inverter

Developed to improve efficiency, the Sunsynk Acure hybrid inverter is quick to install with minimal cabling to reduce complexity. It's also compatible with the Sunsynk Connect Pro cloud-based energy management system which allows installers to log on remotely and perform commissioning, adjustments and troubleshooting without having to visit site. All of this is designed to speed up installation times and reduce downtime.

Inbuilt arc fault detection and protection against issues such as overvoltage and overcurrent offer safety and reliability, while a PV circuit alarm provides alerts the user if the unit is tampered with or disconnected. Plus, its five-year standard warranty can be increased to 10 years if installed with a Sunsynk battery.

Key features:

1. Efficient 7kW hybrid inverter
2. Two MPPTs with two strings per MPPT
3. Inbuilt communication via RS485, RS232 or CAN, and monitoring via GPRS, Wi-Fi, Bluetooth, 4G and LAN (optional)
4. Wireless CT coil and support for up to 10 wireless smart switches to reduce unnecessary cabling and enable dynamic load management
5. Support for rapid shutdown and dry contact generator start for grid failure backup or off-grid usage
6. Hinged terminal cover and discreet cable routing for a sleek finish and enhanced safety
7. Inbuilt arc fault detection to reduce risk of fires
8. PV circuit alarm offers alerts in the event of tamper or disconnection
9. Compatible with Sunsynk Connect Pro cloud-based energy management platform so users can track generation, consumption and battery status in real time
10. Remote commissioning, adjustments and troubleshooting to reduce site visits and downtime
11. Maximum efficiency: 97.6%
12. Ingress protection: IP65
13. Dimensions: 366mm (W) x 630mm (H) x 281.41mm (D) (excluding connectors and brackets)
14. Weight: 27.1kg
15. Five-year warranty (10 years if installed with a Sunsynk battery)
