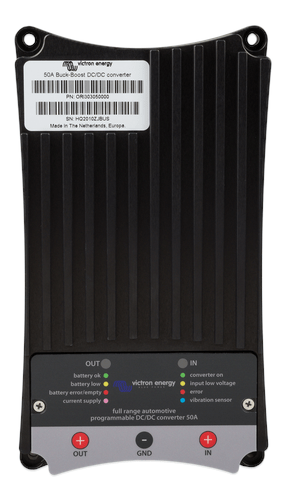

DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator (regenerative braking, Euro 5 and Euro 6 engines)
The Buck-Boost DC-DC Converter is a DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator. The converter will charge the auxiliary battery with a pre-set charge voltage, eliminating high voltages (e.g. Mercedes: 15,4V) and low voltages.
‘Engine running’ detection system
Deep discharge of the vehicle’s starting battery is avoided by a built-in ‘engine running’ detection system.
Instead of this detection system, the converter can also be activated by means of a programmable input (D+, CAN bus or (+)15 connection).
Fully programmable
The converter can be fully programmed by means of a simple and user-friendly PC application. (USB type A male to USB type B male cable needed)
One product for 12V, 24V and 12/24V systems
The converter can be programmed to charge a 12V or a 24V auxiliary battery from either a 12V or a 24V alternator and starter battery.
Charge current and input current limiter
The output current is determined by the following factors:
- The maximum charge current setting.
- The maximum input current setting.
- The maximum operating temperature limit of the converter
PLEASE CLICK HERE FOR SPEC SHEET
| Brand |
Victron Energy
|
| Manufacturer Part Number |
ORI303025000
|
| Input Voltage Range |
10-30V
|
| Output Voltage Range |
10-30V
|
| Under Voltage Threshold |
10V
|
| Max. Input Voltage |
30V
|
| Max. Charge Current |
12V : 25A, 24V : 15A
|
| Dimensions |
L165 x W120 x D30mm
|
| Weight (kg) |
0.6
|
| Warranty |
5 Years
|
