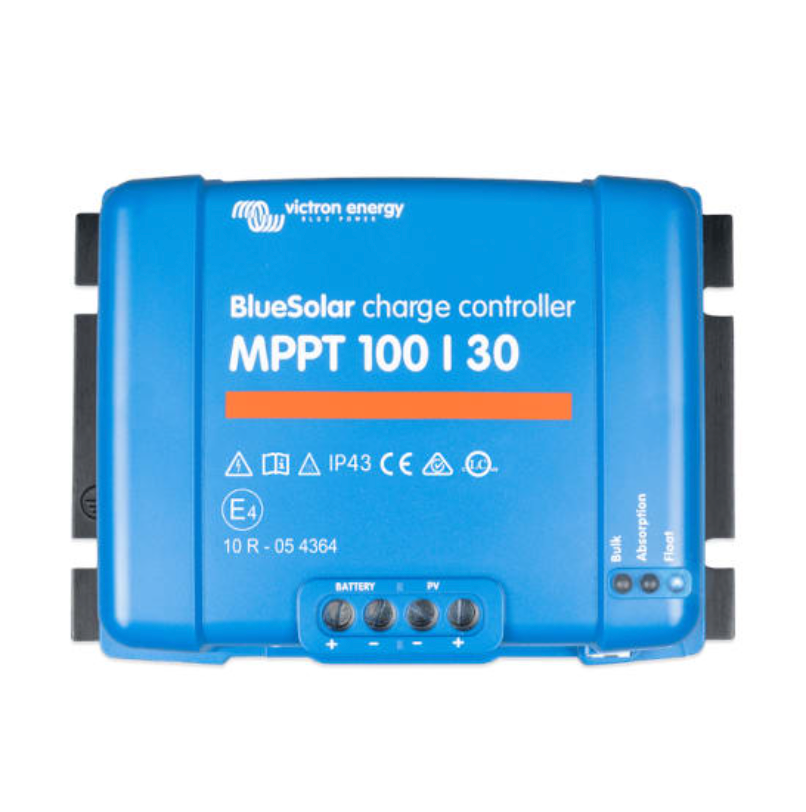

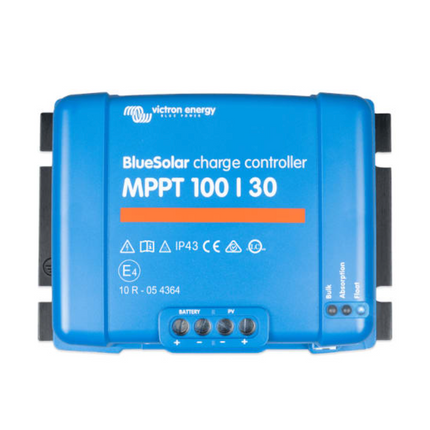

Victron Energy BlueSolar MPPT 100/30 – SCC020030200

Description

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.



Features

Ultrafast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40°C (104°F).

Flexible charge algorithm

Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high.

  • PV short circuit and PV reverse polarity protection.
  • PV reverse current protection.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature.

Real-time data display options

  • ColorControl GX or other GX devices
  • A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.

           CLICK HERE FOR SPEC SHEET

          Brand

          Victron Energy

          Manufacturer Part Number

          SCC020030200

          GTIN

          8719076025542

          Battery Voltage

          12/24V Auto Select

          Rated Charge Current

          30A

          Nominal PV Power, 12V

          440W

          Nominal PV Power, 24V

          880W

          Max. PV Short Circuit Current

          35A

          Maximum PV Open Circuit Voltage

          100V

          Efficiency

          98%

          Charge Algorithm

          Multi-stage adaptive

          Data Communication Port

          VE.Direct

          IP Rating

          IP43 (electronic components), IP22 (connection area)

          Dimensions

          H130 x W186 x D70mm

          Weight

          1.3Kg

          Warranty

          5 Years


          Product form

          A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology,... Read more

          £121.67 Exc. VAT
          £146.00 Inc. VAT

          • Quality
          • Reliabilty
          • Trusted

          Description

          A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.



          Features

          Ultrafast Maximum Power Point Tracking (MPPT)

          Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

          Advanced Maximum Power Point Detection in case of partial shading conditions

          If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

          Outstanding conversion efficiency

          No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40°C (104°F).

          Flexible charge algorithm

          Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

          Extensive electronic protection

          Over-temperature protection and power derating when temperature is high.

          • PV short circuit and PV reverse polarity protection.
          • PV reverse current protection.

          Internal temperature sensor

          Compensates absorption and float charge voltage for temperature.

          Real-time data display options

          • ColorControl GX or other GX devices
          • A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.

                   CLICK HERE FOR SPEC SHEET

                  Brand

                  Victron Energy

                  Manufacturer Part Number

                  SCC020030200

                  GTIN

                  8719076025542

                  Battery Voltage

                  12/24V Auto Select

                  Rated Charge Current

                  30A

                  Nominal PV Power, 12V

                  440W

                  Nominal PV Power, 24V

                  880W

                  Max. PV Short Circuit Current

                  35A

                  Maximum PV Open Circuit Voltage

                  100V

                  Efficiency

                  98%

                  Charge Algorithm

                  Multi-stage adaptive

                  Data Communication Port

                  VE.Direct

                  IP Rating

                  IP43 (electronic components), IP22 (connection area)

                  Dimensions

                  H130 x W186 x D70mm

                  Weight

                  1.3Kg

                  Warranty

                  5 Years
