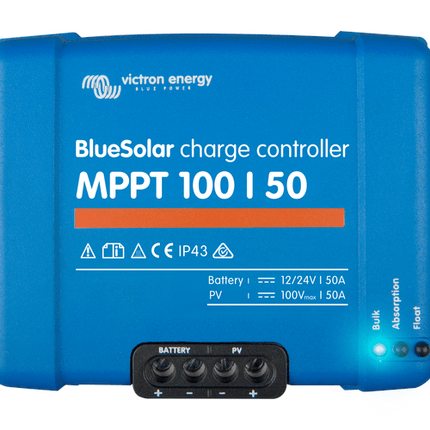

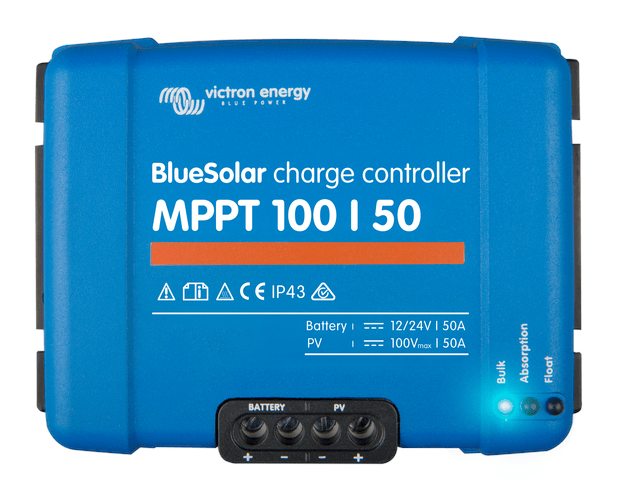

Victron Energy BlueSolar MPPT 100/50 – SCC020050200

Description

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.



Features

Ultrafast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40°C (104°F).

Flexible charge algorithm

Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high.

  • PV short circuit and PV reverse polarity protection.
  • PV reverse current protection.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature.

Real-time data display options

  • ColorControl GX or other GX devices
  • A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.

               CLICK HERE FOR SPEC SHEET

              Brand

              Victron Energy

              Manufacturer Part Number

              SCC020050200

              GTIN

              8719076025566

              Battery Voltage

              12/24V Auto Select

              Rated Charge Current

              50A

              Nominal PV Power, 12V

              700W

              Nominal PV Power, 24V

              1400W

              Max. PV Short Circuit Current

              60A

              Maximum PV Open Circuit Voltage

              100V

              Efficiency

              98%

              Charge Algorithm

              Multi-stage adaptive

              Data Communication Port

              VE.Direct

              IP Rating

              IP43 (electronic components), IP22 (connection area)

              Dimensions

              H130 x W186 x D70mm

              Weight

              1.3Kg

              Warranty

              5 Years


              Product form

              A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology,... Read more

              £182.05 Exc. VAT
              £218.46 Inc. VAT

              • Quality
              • Reliabilty
              • Trusted

              Description

              A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.



              Features

              Ultrafast Maximum Power Point Tracking (MPPT)

              Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

              Advanced Maximum Power Point Detection in case of partial shading conditions

              If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

              Outstanding conversion efficiency

              No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40°C (104°F).

              Flexible charge algorithm

              Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

              Extensive electronic protection

              Over-temperature protection and power derating when temperature is high.

              • PV short circuit and PV reverse polarity protection.
              • PV reverse current protection.

              Internal temperature sensor

              Compensates absorption and float charge voltage for temperature.

              Real-time data display options

              • ColorControl GX or other GX devices
              • A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.

                           CLICK HERE FOR SPEC SHEET

                          Brand

                          Victron Energy

                          Manufacturer Part Number

                          SCC020050200

                          GTIN

                          8719076025566

                          Battery Voltage

                          12/24V Auto Select

                          Rated Charge Current

                          50A

                          Nominal PV Power, 12V

                          700W

                          Nominal PV Power, 24V

                          1400W

                          Max. PV Short Circuit Current

                          60A

                          Maximum PV Open Circuit Voltage

                          100V

                          Efficiency

                          98%

                          Charge Algorithm

                          Multi-stage adaptive

                          Data Communication Port

                          VE.Direct

                          IP Rating

                          IP43 (electronic components), IP22 (connection area)

                          Dimensions

                          H130 x W186 x D70mm

                          Weight

                          1.3Kg

                          Warranty

                          5 Years
