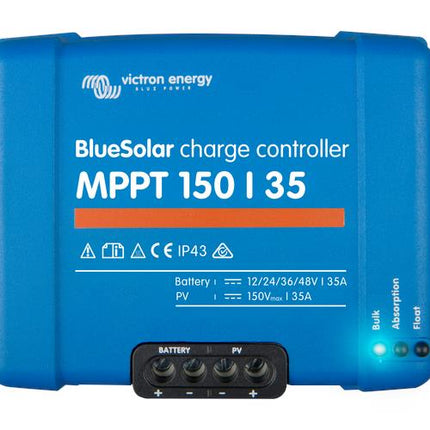

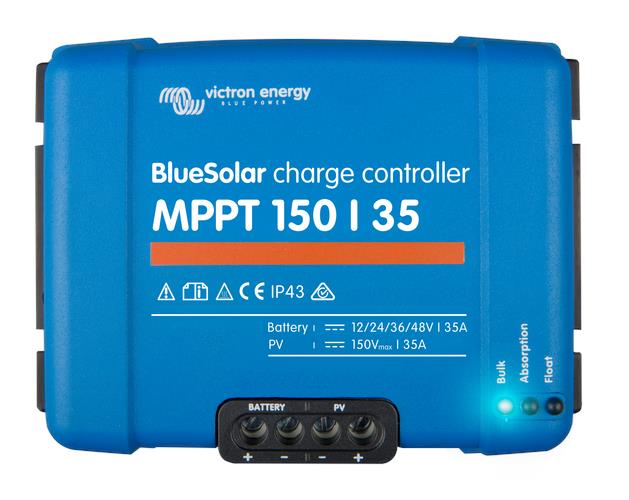

Victron Energy BlueSolar MPPT 150/35 – SCC020035000

Description

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.



Features

Ultrafast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).

Flexible charge algorithm

Fully programmable charge algorithm, and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high.

  • PV short circuit and PV reverse polarity protection.
  • PV reverse current protection.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature.

Real-time data display options

  • Color Control GX or other GX devices: see the Venus documents on our website.
  • A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed

             CLICK HERE FOR SPEC SHEET

            Brand

            Victron Energy

            Manufacturer Part Number

            SCC020035000

            GTIN

            8719076025559

            Battery Voltage

            12 / 24 / 48V Auto Select (software tool needed to select 36V)

            Rated Charge Current

            35A

            Nominal PV Power, 12V

            500W

            Nominal PV Power, 24V

            1000W

            Max. PV Short Circuit Current

            40A

            Maximum PV Open Circuit Voltage

            150V absolute maximum coldest conditions 145V start-up and operating maximum

            Efficiency

            98%

            Charge Algorithm

            Multi-stage adaptive

            Data Communication Port

            VE.Direct

            IP Rating

            IP43 (electronic components), IP22 (connection area)

            Dimensions

            H130 x W186 x D70mm

            Weight

            1.25Kg

            Warranty

            5 Years


            Product form

            A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology,... Read more

            £182.15 Exc. VAT
            £218.58 Inc. VAT

            • Quality
            • Reliabilty
            • Trusted

            Description

            A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.



            Features

            Ultrafast Maximum Power Point Tracking (MPPT)

            Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

            Advanced Maximum Power Point Detection in case of partial shading conditions

            If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

            Outstanding conversion efficiency

            No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).

            Flexible charge algorithm

            Fully programmable charge algorithm, and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).

            Extensive electronic protection

            Over-temperature protection and power derating when temperature is high.

            • PV short circuit and PV reverse polarity protection.
            • PV reverse current protection.

            Internal temperature sensor

            Compensates absorption and float charge voltage for temperature.

            Real-time data display options

            • Color Control GX or other GX devices: see the Venus documents on our website.
            • A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed

                       CLICK HERE FOR SPEC SHEET

                      Brand

                      Victron Energy

                      Manufacturer Part Number

                      SCC020035000

                      GTIN

                      8719076025559

                      Battery Voltage

                      12 / 24 / 48V Auto Select (software tool needed to select 36V)

                      Rated Charge Current

                      35A

                      Nominal PV Power, 12V

                      500W

                      Nominal PV Power, 24V

                      1000W

                      Max. PV Short Circuit Current

                      40A

                      Maximum PV Open Circuit Voltage

                      150V absolute maximum coldest conditions 145V start-up and operating maximum

                      Efficiency

                      98%

                      Charge Algorithm

                      Multi-stage adaptive

                      Data Communication Port

                      VE.Direct

                      IP Rating

                      IP43 (electronic components), IP22 (connection area)

                      Dimensions

                      H130 x W186 x D70mm

                      Weight

                      1.25Kg

                      Warranty

                      5 Years
