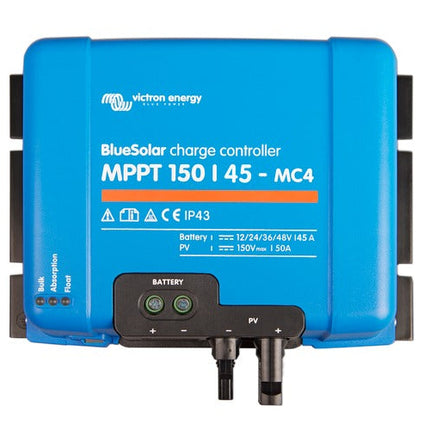

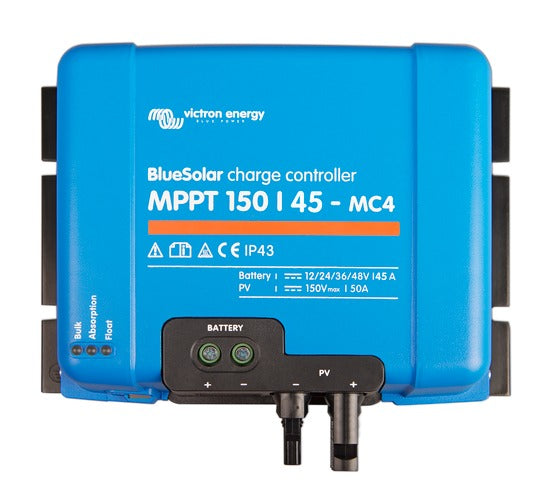

Victron Energy BlueSolar MPPT 150/45-MC4 – SCC010045300

Description

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.



Features

Ultra-fast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30 % compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98 %.

Flexible charge algorithm

Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high.

  • PV short circuit and PV reverse polarity protection.
  • PV reverse current protection.

Internal temperature sensor and optional external battery voltage, temperature and current sensing via Bluetooth

A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature (and current, in case of a BMV-712 or a SmartShunt) to one or more BlueSolar Charge Controllers. (VE.Direct Bluetooth Smart dongle needed)

Real-time data display options

  • Color Control GX or other GX devices: see the Venus documents on our website.
  • A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.

                 CLICK HERE FOR SPEC SHEET

                Brand

                Victron Energy

                Manufacturer Part Number

                SCC010045300

                GTIN

                8719076025443

                Battery Voltage

                12/24/48V Auto Select (software tool needed to select 36V)

                Rated Charge Current

                45A

                Nominal PV Power, 12V

                650W

                Nominal PV Power, 24V

                1300W

                Max. PV Short Circuit Current

                50A

                Maximum PV Open Circuit Voltage

                150V absolute maximum coldest conditions 145V start-up and operating maximum

                Efficiency

                98%

                Charge Algorithm

                Multi-stage adaptive

                Data Communication Port

                VE.Direct

                IP Rating

                IP43 (electronic components), IP22 (connection area)

                Dimensions

                H215 x W250 x D95mm

                Weight

                3Kg

                Warranty

                5 Years


                Product form

                A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology,... Read more

                £310.55 Exc. VAT
                £372.66 Inc. VAT

                • Quality
                • Reliabilty
                • Trusted

                Description

                A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.



                Features

                Ultra-fast Maximum Power Point Tracking (MPPT)

                Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30 % compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers.

                Advanced Maximum Power Point Detection in case of partial shading conditions

                If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

                Outstanding conversion efficiency

                No cooling fan. Maximum efficiency exceeds 98 %.

                Flexible charge algorithm

                Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

                Extensive electronic protection

                Over-temperature protection and power derating when temperature is high.

                • PV short circuit and PV reverse polarity protection.
                • PV reverse current protection.

                Internal temperature sensor and optional external battery voltage, temperature and current sensing via Bluetooth

                A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature (and current, in case of a BMV-712 or a SmartShunt) to one or more BlueSolar Charge Controllers. (VE.Direct Bluetooth Smart dongle needed)

                Real-time data display options

                • Color Control GX or other GX devices: see the Venus documents on our website.
                • A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.

                               CLICK HERE FOR SPEC SHEET

                              Brand

                              Victron Energy

                              Manufacturer Part Number

                              SCC010045300

                              GTIN

                              8719076025443

                              Battery Voltage

                              12/24/48V Auto Select (software tool needed to select 36V)

                              Rated Charge Current

                              45A

                              Nominal PV Power, 12V

                              650W

                              Nominal PV Power, 24V

                              1300W

                              Max. PV Short Circuit Current

                              50A

                              Maximum PV Open Circuit Voltage

                              150V absolute maximum coldest conditions 145V start-up and operating maximum

                              Efficiency

                              98%

                              Charge Algorithm

                              Multi-stage adaptive

                              Data Communication Port

                              VE.Direct

                              IP Rating

                              IP43 (electronic components), IP22 (connection area)

                              Dimensions

                              H215 x W250 x D95mm

                              Weight

                              3Kg

                              Warranty

                              5 Years
