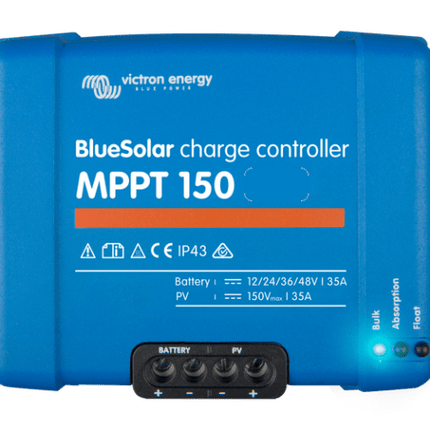

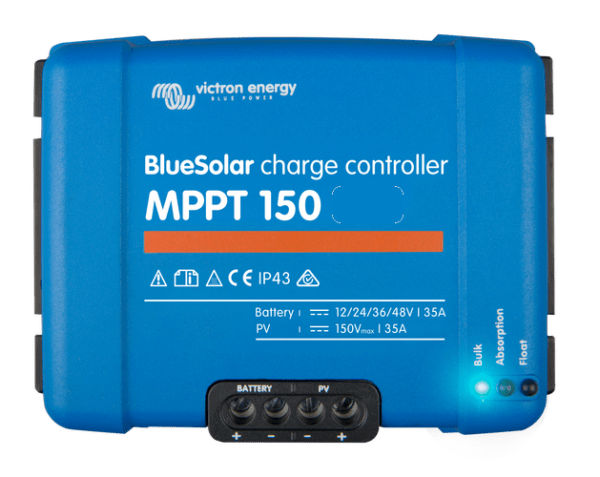

Victron Energy BlueSolar MPPT 150/45 – SCC115045222

Description

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control

Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations – even when there is no internet connection or phone signal nearby – you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98%.

Full output current up to 40°C (104°F).

Flexible charge algorithm

Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high.

PV short circuit and PV reverse polarity protection.

PV reverse current protection.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature.

Real-time data display options

  • Color Control GX or other GX devices: see the Venus documents on our website.
  • A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.

                   CLICK HERE FOR SPEC SHEET

                  Brand

                  Victron Energy

                  Manufacturer Part Number

                  SCC115045222

                  GTIN

                  8719076053033

                  Battery Voltage

                  12/24/48V Auto Select (software tool needed to select 36V)

                  Rated Charge Current

                  45A

                  Nominal PV power

                  12V: 650W / 24V: 1300W / 36V: 1950W / 48V: 2600W

                  Max. PV short circuit current

                  50A

                  Maximum PV Open Circuit Voltage

                  150V absolute maximum coldest conditions 145V start-up and operating maximum

                  Maximum efficiency

                  98%

                  Charge Algorithm

                  multi-stage adaptive (eight pre-programmed algorithms)

                  Data Communication Port

                  VE.Direct

                  Protection Category

                  IP43 (electronic components), IP22 (connection area)

                  Dimensions

                  H130 x W186 x D70mm

                  Weight

                  1.25Kg

                  Warranty

                  5 Years


                  Product form

                  A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology,... Read more

                  £218.61 Exc. VAT
                  £262.33 Inc. VAT

                  • Quality
                  • Reliabilty
                  • Trusted

                  Description

                  A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

                  MPPT: Ultra Fast Maximum Power Point Tracking

                  By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

                  Remote Monitoring and Control

                  Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations – even when there is no internet connection or phone signal nearby – you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.

                  Advanced Maximum Power Point Detection in case of partial shading conditions

                  If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

                  Outstanding conversion efficiency

                  No cooling fan. Maximum efficiency exceeds 98%.

                  Full output current up to 40°C (104°F).

                  Flexible charge algorithm

                  Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).

                  Extensive electronic protection

                  Over-temperature protection and power derating when temperature is high.

                  PV short circuit and PV reverse polarity protection.

                  PV reverse current protection.

                  Internal temperature sensor

                  Compensates absorption and float charge voltage for temperature.

                  Real-time data display options

                  • Color Control GX or other GX devices: see the Venus documents on our website.
                  • A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.

                                   CLICK HERE FOR SPEC SHEET

                                  Brand

                                  Victron Energy

                                  Manufacturer Part Number

                                  SCC115045222

                                  GTIN

                                  8719076053033

                                  Battery Voltage

                                  12/24/48V Auto Select (software tool needed to select 36V)

                                  Rated Charge Current

                                  45A

                                  Nominal PV power

                                  12V: 650W / 24V: 1300W / 36V: 1950W / 48V: 2600W

                                  Max. PV short circuit current

                                  50A

                                  Maximum PV Open Circuit Voltage

                                  150V absolute maximum coldest conditions 145V start-up and operating maximum

                                  Maximum efficiency

                                  98%

                                  Charge Algorithm

                                  multi-stage adaptive (eight pre-programmed algorithms)

                                  Data Communication Port

                                  VE.Direct

                                  Protection Category

                                  IP43 (electronic components), IP22 (connection area)

                                  Dimensions

                                  H130 x W186 x D70mm

                                  Weight

                                  1.25Kg

                                  Warranty

                                  5 Years
