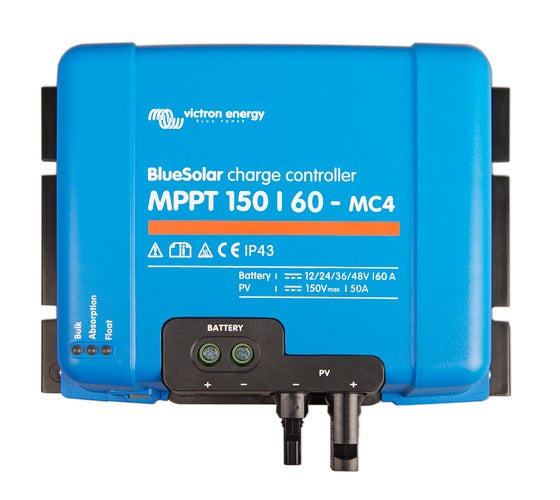

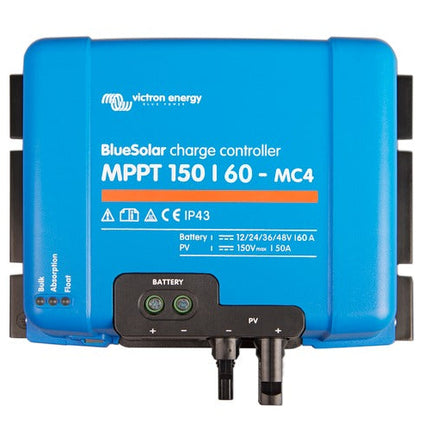

Victron Energy BlueSolar MPPT 150/60-MC4 – SCC010060300

Description

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.



Features

Ultra-fast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30 % compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98 %.

Flexible charge algorithm

Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high.

  • PV short circuit and PV reverse polarity protection.
  • PV reverse current protection.

Internal temperature sensor and optional external battery voltage, temperature and current sensing via Bluetooth

A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature (and current, in case of a BMV-712 or a SmartShunt) to one or more BlueSolar Charge Controllers. (VE.Direct Bluetooth Smart dongle needed)

Real-time data display options

  • Color Control GX or other GX devices: see the Venus documents on our website.
  • A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.

                       CLICK HERE FOR SPEC SHEET

                      Brand

                      Victron Energy

                      Manufacturer Part Number

                      SCC010060300

                      GTIN

                      8719076025481

                      Battery Voltage

                      12/24/48V Auto Select (software tool needed to select 36V)

                      Rated Charge Current

                      60A

                      Nominal PV Power, 12V

                      860W

                      Nominal PV Power, 24V

                      1720W

                      Max. PV Short Circuit Current

                      50A

                      Maximum PV Open Circuit Voltage

                      150V absolute maximum coldest conditions 145V start-up and operating maximum

                      Efficiency

                      98%

                      Charge Algorithm

                      Multi-stage adaptive

                      Data Communication Port

                      VE.Direct

                      IP Rating

                      IP43 (electronic components), IP22 (connection area)

                      Dimensions

                      H215 x W250 x D95mm

                      Weight

                      3Kg

                      Warranty

                      5 Years


                      Product form

                      A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology,... Read more

                      £354.93 Exc. VAT
                      £425.92 Inc. VAT

                      • Quality
                      • Reliabilty
                      • Trusted

                      Description

                      A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.



                      Features

                      Ultra-fast Maximum Power Point Tracking (MPPT)

                      Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30 % compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers.

                      Advanced Maximum Power Point Detection in case of partial shading conditions

                      If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

                      Outstanding conversion efficiency

                      No cooling fan. Maximum efficiency exceeds 98 %.

                      Flexible charge algorithm

                      Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

                      Extensive electronic protection

                      Over-temperature protection and power derating when temperature is high.

                      • PV short circuit and PV reverse polarity protection.
                      • PV reverse current protection.

                      Internal temperature sensor and optional external battery voltage, temperature and current sensing via Bluetooth

                      A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature (and current, in case of a BMV-712 or a SmartShunt) to one or more BlueSolar Charge Controllers. (VE.Direct Bluetooth Smart dongle needed)

                      Real-time data display options

                      • Color Control GX or other GX devices: see the Venus documents on our website.
                      • A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.

                                           CLICK HERE FOR SPEC SHEET

                                          Brand

                                          Victron Energy

                                          Manufacturer Part Number

                                          SCC010060300

                                          GTIN

                                          8719076025481

                                          Battery Voltage

                                          12/24/48V Auto Select (software tool needed to select 36V)

                                          Rated Charge Current

                                          60A

                                          Nominal PV Power, 12V

                                          860W

                                          Nominal PV Power, 24V

                                          1720W

                                          Max. PV Short Circuit Current

                                          50A

                                          Maximum PV Open Circuit Voltage

                                          150V absolute maximum coldest conditions 145V start-up and operating maximum

                                          Efficiency

                                          98%

                                          Charge Algorithm

                                          Multi-stage adaptive

                                          Data Communication Port

                                          VE.Direct

                                          IP Rating

                                          IP43 (electronic components), IP22 (connection area)

                                          Dimensions

                                          H215 x W250 x D95mm

                                          Weight

                                          3Kg

                                          Warranty

                                          5 Years
