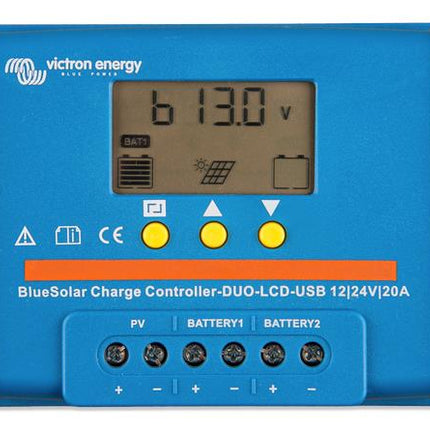

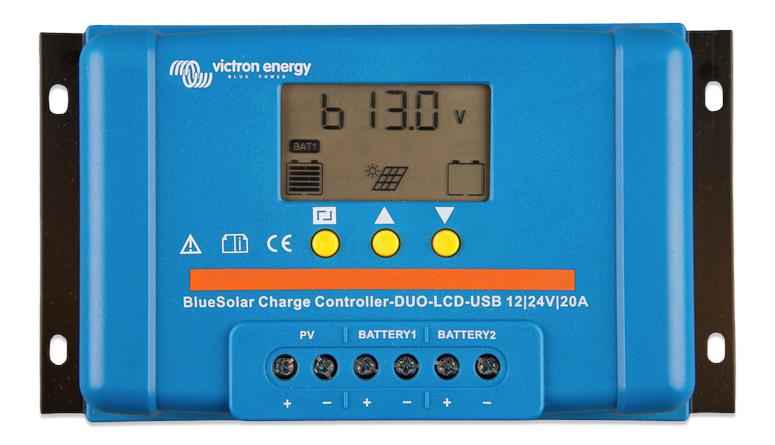

Victron Energy BlueSolar PWM DUO-LCD&USB 12/24V-20A – SCC010020060

Description

Features

Liquid crystal display. For status monitoring and set-up

External Temperature sensor included

2 Separate Battery outputs. Charges two separate batteries. For example, the starter battery and the service battery of a boat or mobile home.

Protections. Protected against reverse polarity connection of the solar panels and/or battery

Programmable battery charge algorithm. Algorithms for AGM, GEL or Flooded lead-acid batteries and LiFePO4 batteries (with internal BMS).

Two 5 Volt USB outputs. Maximum current of the two outputs combined: 2A



CLICK HERE FOR SPEC SHEET



Brand

Victron Energy

Manufacturer Part Number

SCC010020060

GTIN

8719076046219

Battery Voltage

12/24 V with automatic system voltage detection [for LiFePO4 no automatic system voltage detection]

Rated Charge Current

20A

Second battery output

Yes

Load Output

2 USB ports 5V/2A

Grounding

Common negative

Battery Temperature Sensor

Yes, remote sensor [included]

Protection Category

IP20

Dimensions

H101.5 x W184.0 x D47.1mm

Weight

0.3Kg

Warranty

5 Years


Product form

Features Liquid crystal display. For status monitoring and set-up External Temperature sensor included 2 Separate Battery outputs. Charges two separate... Read more

£48.88 Exc. VAT
£58.66 Inc. VAT

  • Quality
  • Reliabilty
  • Trusted

Description

Features

Liquid crystal display. For status monitoring and set-up

External Temperature sensor included

2 Separate Battery outputs. Charges two separate batteries. For example, the starter battery and the service battery of a boat or mobile home.

Protections. Protected against reverse polarity connection of the solar panels and/or battery

Programmable battery charge algorithm. Algorithms for AGM, GEL or Flooded lead-acid batteries and LiFePO4 batteries (with internal BMS).

Two 5 Volt USB outputs. Maximum current of the two outputs combined: 2A



CLICK HERE FOR SPEC SHEET



Brand

Victron Energy

Manufacturer Part Number

SCC010020060

GTIN

8719076046219

Battery Voltage

12/24 V with automatic system voltage detection [for LiFePO4 no automatic system voltage detection]

Rated Charge Current

20A

Second battery output

Yes

Load Output

2 USB ports 5V/2A

Grounding

Common negative

Battery Temperature Sensor

Yes, remote sensor [included]

Protection Category

IP20

Dimensions

H101.5 x W184.0 x D47.1mm

Weight

0.3Kg

Warranty

5 Years
