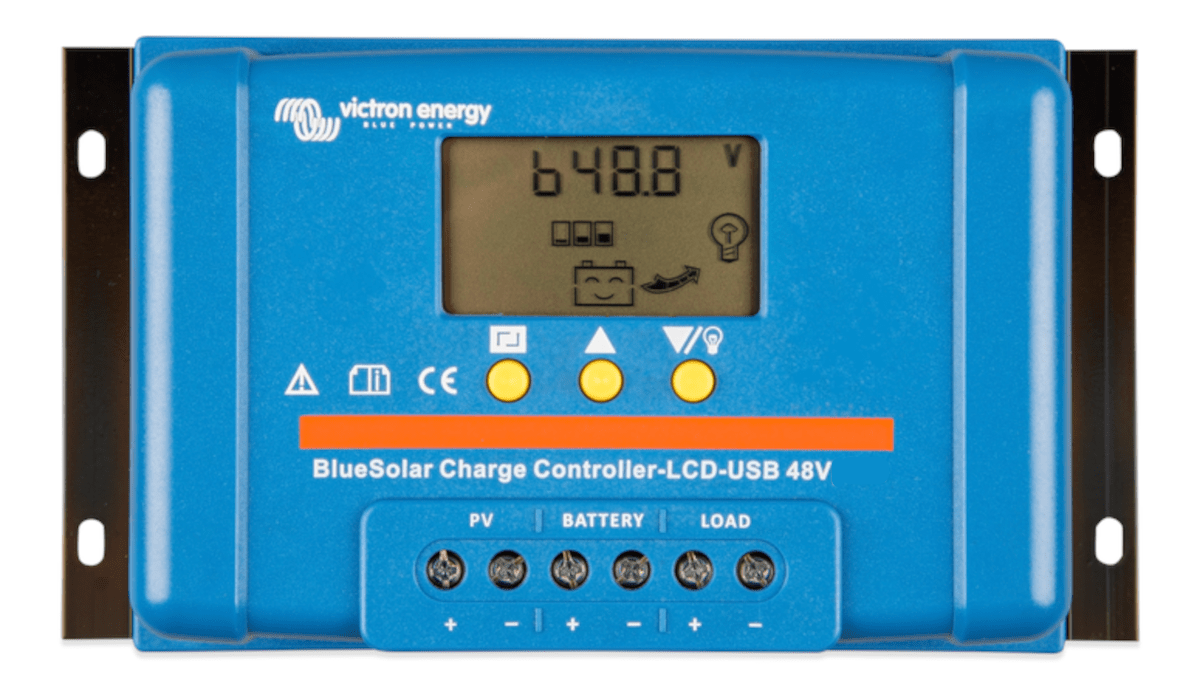

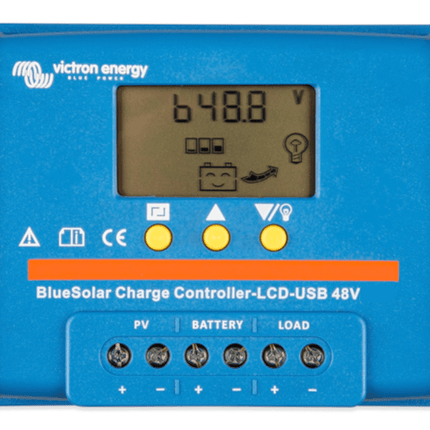

Victron Energy BlueSolar PWM LCD&USB 48V 30A – SCC040030050

Description

Liquid crystal display

For status monitoring and set-up

Load output

Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.

Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.

The connect and disconnect voltages are adjustable.

Day/night timing of the load output

This option allows for a pre-set ON-time after dusk.

Programmable battery charge algorithm

Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)

Two 5 Volt USB outputs

Maximum current (both outputs combined): 2A

CLICK HERE FOR SPEC SHEET



Brand

Victron Energy

Manufacturer Part Number

SCC040030050

GTIN

8719076046257

Battery Voltage

48V

Rated Charge Current

30A

Maximum Solar Voltage

100V

Load Output

Manual control + low voltage disconnect + timer

Grounding

Common positive

IP Rating

IP20

Dimensions

H101 x W184 x D47mm

Weight

0.3Kg

Warranty

5 Years


Product form

Liquid crystal display For status monitoring and set-up Load output Over-discharge of the battery can be prevented by connecting all... Read more

£54.37 Exc. VAT
£65.24 Inc. VAT

  • Quality
  • Reliabilty
  • Trusted

Description

Liquid crystal display

For status monitoring and set-up

Load output

Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.

Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.

The connect and disconnect voltages are adjustable.

Day/night timing of the load output

This option allows for a pre-set ON-time after dusk.

Programmable battery charge algorithm

Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)

Two 5 Volt USB outputs

Maximum current (both outputs combined): 2A

CLICK HERE FOR SPEC SHEET



Brand

Victron Energy

Manufacturer Part Number

SCC040030050

GTIN

8719076046257

Battery Voltage

48V

Rated Charge Current

30A

Maximum Solar Voltage

100V

Load Output

Manual control + low voltage disconnect + timer

Grounding

Common positive

IP Rating

IP20

Dimensions

H101 x W184 x D47mm

Weight

0.3Kg

Warranty

5 Years
