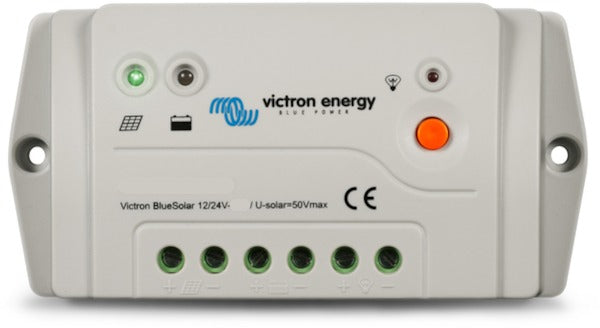

Victron Energy BlueSolar PWM Pro Charge Controller 12/24V 30A – SCC010030010

Description

The BlueSolar PWM-Pro series is ready for use with its default settings.

It also is fully programmable:

  • With help of a computer and software
  • With the dedicated BlueSolar Pro Remote Panel (see features below).

Features

  • Lighting control function, fully programmable.
  • Three stage battery charging (bulk, absorption, float), fully programmable.
  • Integrated battery monitor function (Remote Panel needed to display state of charge).
  • Load output with low voltage disconnect and manual control (default setting).
  • Optional external temperature sensor. – Load output protected against over load and short circuit.
  • Protected against reverse polarity connection of the solar array and/or battery.

Day/night timing options

See Remote Panel manual for details

CLICK HERE FOR SPEC SHEET



Brand

Victron Energy

Manufacturer Part Number

SCC010030010

GTIN

8719076025399

Battery Voltage

12/24V with automatic system voltage detection

Rated Charge Current

30A

Maximum Solar Voltage

28V / 55V

Load Output

Manual control + low voltage disconnect + timer

Grounding

Common positive

IP Rating

IP30

Dimensions

H200 x W100 x D57mm

Weight

0.5Kg

Warranty

5 Years


Product form

The BlueSolar PWM-Pro series is ready for use with its default settings. It also is fully programmable: With help of... Read more

£50.60 Exc. VAT
£60.72 Inc. VAT

  • Quality
  • Reliabilty
  • Trusted

Description

The BlueSolar PWM-Pro series is ready for use with its default settings.

It also is fully programmable:

  • With help of a computer and software
  • With the dedicated BlueSolar Pro Remote Panel (see features below).

Features

  • Lighting control function, fully programmable.
  • Three stage battery charging (bulk, absorption, float), fully programmable.
  • Integrated battery monitor function (Remote Panel needed to display state of charge).
  • Load output with low voltage disconnect and manual control (default setting).
  • Optional external temperature sensor. – Load output protected against over load and short circuit.
  • Protected against reverse polarity connection of the solar array and/or battery.

Day/night timing options

See Remote Panel manual for details

CLICK HERE FOR SPEC SHEET



Brand

Victron Energy

Manufacturer Part Number

SCC010030010

GTIN

8719076025399

Battery Voltage

12/24V with automatic system voltage detection

Rated Charge Current

30A

Maximum Solar Voltage

28V / 55V

Load Output

Manual control + low voltage disconnect + timer

Grounding

Common positive

IP Rating

IP30

Dimensions

H200 x W100 x D57mm

Weight

0.5Kg

Warranty

5 Years
