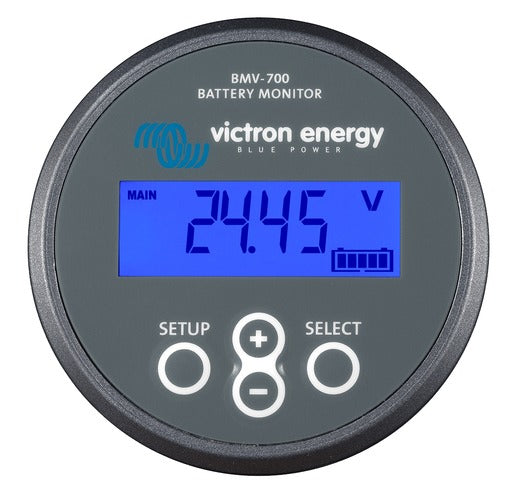

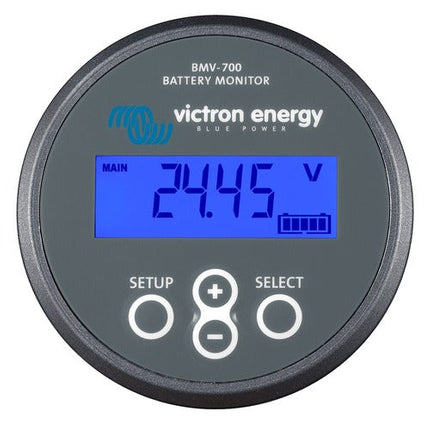

Victron Energy BMV-700 Battery Monitor – BAM010700000R

Description

 The BMV-700 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.

 Features

Battery ‘fuel gauge’, time-to-go indicator, and much more

The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.

Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts.

Easy to install

All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed.

Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting.



Standard features

  • Battery voltage, current, power, ampere-hours consumed and state of charge
  • Remaining time at the current rate of discharge
  • Programmable visual and audible alarm
  • Programmable relay, to turn off non critical loads or to run a generator when needed
  • 500 Amp quick connect shunt and connection kit
  • Shunt selection capability up to 10.000 Amps
  • VE.Direct communication port
  • Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
  • Wide input voltage range: 6,5 – 95V
  • High current measurement resolution: 10 mA (0,01A)
  • Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V
    Brand

    Victron Energy

    Manufacturer Part Number

    BAM010700000R

    Supply Voltage Range

    6.5-95 VDC

    Battery Capacity (Ah)

    1-9999

    Temperature Sensor

    Optional

    VE.Direct Communication Port

    Yes

    Protection Category

    IP55

    Front Bezel

    69 x 69mm

    Body Diameter & Depth

    52 x 31mm

    Warranty

    5 Years


    Product form

     The BMV-700 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours... Read more

    £108.00 Exc. VAT
    £129.60 Inc. VAT
