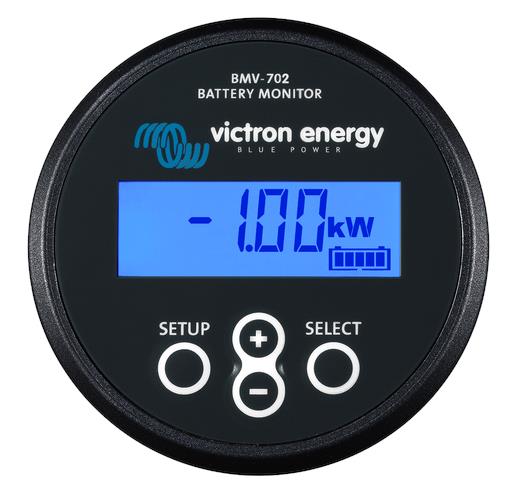

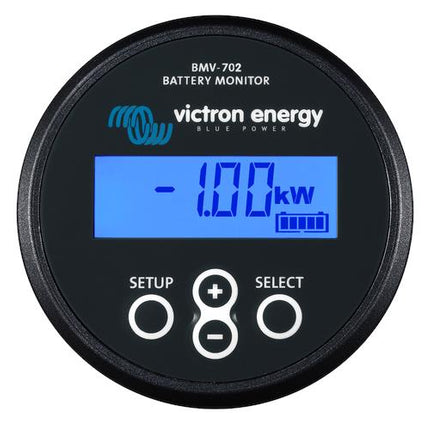

Victron Energy BMV-702 Black Battery Monitor – BAM010702200R

Description



The BMV-702 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.



Features

Battery ‘fuel gauge’, time-to-go indicator, and much more

The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.

Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts.

Easy to install

All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed.

Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting.

BMV-702 additional features

Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings.



Standard features

  • Battery voltage, current, power, ampere-hours consumed and state of charge
  • Remaining time at the current rate of discharge
  • Programmable visual and audible alarm
  • Programmable relay, to turn off non critical loads or to run a generator when needed
  • 500 Amp quick connect shunt and connection kit
  • Shunt selection capability up to 10.000 Amps
  • VE.Direct communication port
  • Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
  • Wide input voltage range: 6,5 – 95V
  • High current measurement resolution: 10 mA (0,01A)
  • Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V
        Brand

        Victron Energy

        Manufacturer Part Number

        BAM010702200R

        Supply Voltage Range

        6.5-95 VDC

        Battery Capacity (Ah)

        1-9999

        Temperature Sensor

        Optional

        VE.Direct Communication Port

        Yes

        Protection Category

        IP55

        Front Bezel

        69 x 69mm

        Battery Diameter & Depth

        52 x 31mm

        Warranty

        5 Years


        Product form

          The BMV-702 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere... Read more

        £110.68 Exc. VAT
        £132.82 Inc. VAT

        • Quality
        • Reliabilty
        • Trusted

        Description



        The BMV-702 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.



        Features

        Battery ‘fuel gauge’, time-to-go indicator, and much more

        The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.

        Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts.

        Easy to install

        All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed.

        Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting.

        BMV-702 additional features

        Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings.



        Standard features

        • Battery voltage, current, power, ampere-hours consumed and state of charge
        • Remaining time at the current rate of discharge
        • Programmable visual and audible alarm
        • Programmable relay, to turn off non critical loads or to run a generator when needed
        • 500 Amp quick connect shunt and connection kit
        • Shunt selection capability up to 10.000 Amps
        • VE.Direct communication port
        • Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
        • Wide input voltage range: 6,5 – 95V
        • High current measurement resolution: 10 mA (0,01A)
        • Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V
              Brand

              Victron Energy

              Manufacturer Part Number

              BAM010702200R

              Supply Voltage Range

              6.5-95 VDC

              Battery Capacity (Ah)

              1-9999

              Temperature Sensor

              Optional

              VE.Direct Communication Port

              Yes

              Protection Category

              IP55

              Front Bezel

              69 x 69mm

              Battery Diameter & Depth

              52 x 31mm

              Warranty

              5 Years
