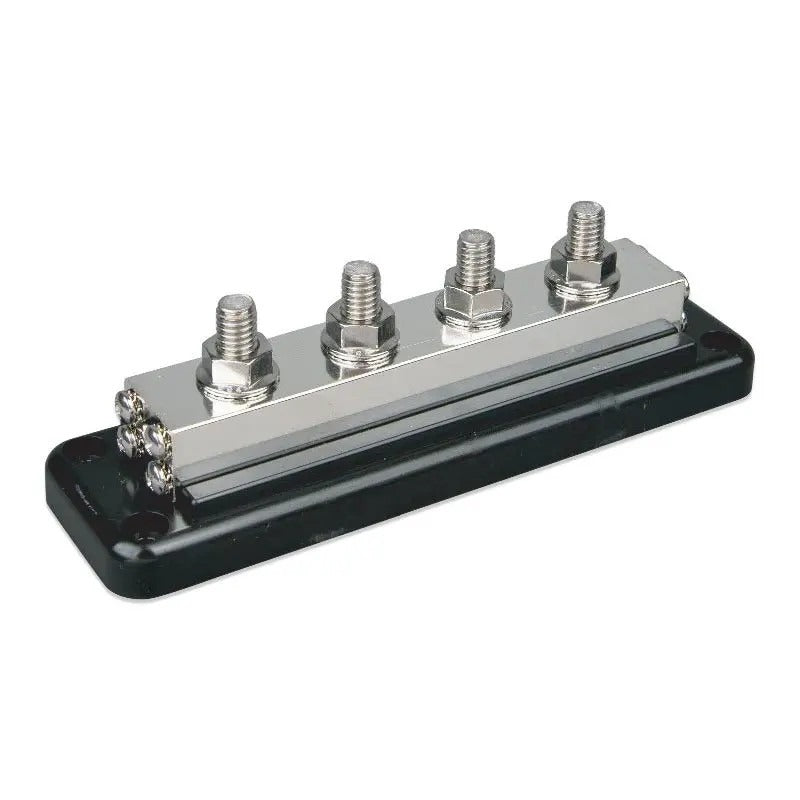

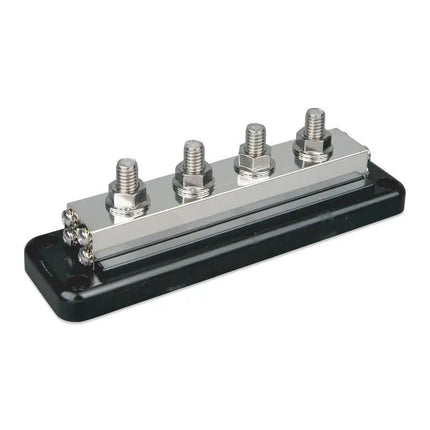

Victron Energy Busbar 600A 4P + cover – VBB160040010

Share
- WhatsApp
- Deel
- Tweet
- Pin it
- Messenger
- Email

Description

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

Victron offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

Available models:

150A / 70V – 4 high current connections
150A / 70V – 6 high current connections
250A / 70V – 4 high current connections
600A / 70V – 4 high current connections and 8 low current connections
600A / 70V – 8 high current connections and 8 low current connections

For more technical information and for the busbar dimensions see the datasheet.

CLICK HERE FOR SPEC SHEET

Brand	Victron Energy
Manufacturer Part Number	VBB160040010
GTIN	8719076052227
Maximum Current	600A
Maximum Voltage	70VDC
Terminal Diameter	9.53mm
Terminal Height	19mm
Dimensions	H65 x W216 x D86mm
Weight	0.75Kg
Warranty	5 Years

Product form

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC... Read more

£87.70 Exc. VAT
£105.24 Inc. VAT
