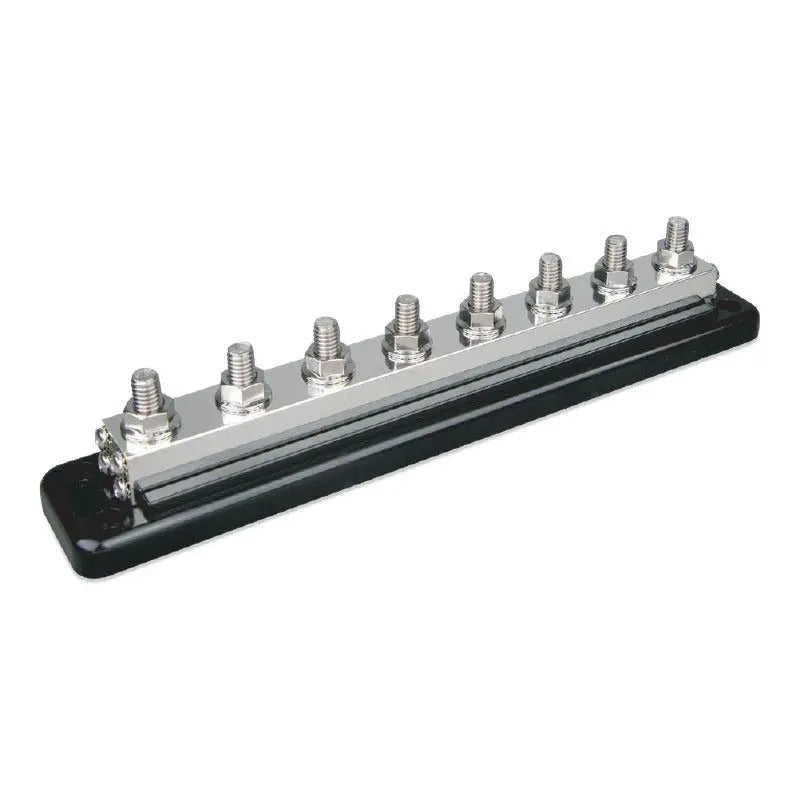

Victron Energy Busbar 600A 8P + cover – VBB160080010

Description







Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

Victron offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

Available models:

  • 150A / 70V – 4 high current connections
  • 150A / 70V – 6 high current connections
  • 250A / 70V – 4 high current connections
  • 600A / 70V – 4 high current connections and 8 low current connections
  • 600A / 70V – 8 high current connections and 8 low current connections

For more technical information and for the busbar dimensions see the datasheet.



CLICK HERE FOR SPEC SHEET




    Brand

    Victron Energy

    Manufacturer Part Number

    VBB160040010

    GTIN

    8719076052227

    Maximum Current

    600A

    Maximum Voltage

    70VDC

    Terminal Diameter

    9.53mm

    Terminal Height

    19mm

    Dimensions

    H65 x W216 x D86mm

    Weight

    0.75Kg

    Warranty

    5 Years

    Product form

          Busbars are used for high current distribution and at the same time they provide connections for batteries... Read more

    £139.81 Exc. VAT
    £167.77 Inc. VAT

    • Quality
    • Reliabilty
    • Trusted

    Description







    Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

    Victron offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

    Available models:

    • 150A / 70V – 4 high current connections
    • 150A / 70V – 6 high current connections
    • 250A / 70V – 4 high current connections
    • 600A / 70V – 4 high current connections and 8 low current connections
    • 600A / 70V – 8 high current connections and 8 low current connections

    For more technical information and for the busbar dimensions see the datasheet.



    CLICK HERE FOR SPEC SHEET




      Brand

      Victron Energy

      Manufacturer Part Number

      VBB160040010

      GTIN

      8719076052227

      Maximum Current

      600A

      Maximum Voltage

      70VDC

      Terminal Diameter

      9.53mm

      Terminal Height

      19mm

      Dimensions

      H65 x W216 x D86mm

      Weight

      0.75Kg

      Warranty

      5 Years
