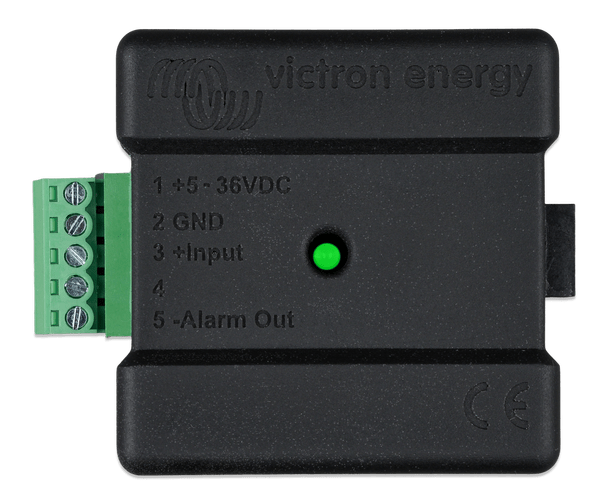

Victron Energy CAN-bus Temp. sensor – ASS000200100

Description



The CAN-bus Temp. Sensor is a battery temperature sensor for the Buck-Boost DC/DC converter range and is an essential accessory when the Buck-Boost DC/DC converter is connected to a LFP lithium battery.

Temperature sensing is needed when LFP lithium batteries are charged at low temperatures. The charge current to a lithium battery has to be reduced once the battery temperature drops below 5 degrees and the charge current has to stop when the temperature drops below zero.

The CAN-bus Temp. Sensor takes care of this. It measures the lithium battery temperature and sends this to the Buck-Boost DC/DC converter. The Buck-Boost DC/DC converter will reduce or stop charge when the battery temperature drops too low.

In addition to this, the CAN-bus Temp. Sensor can also be connected to the temperature sensor terminal in a Multi or Quattro, so the Multi or Quattro can reduce or stop charging when the battery temperature drops too low.




     PLEASE CLICK HERE FOR SPEC SHEET

    Brand

    Victron Energy

    Manufacturer Part Number

    ASS000200100

    Supply voltage

    4.36VDC

    Electricity consumption

    60 mA (@13.6V)

    Alarm output (pin 5)

    350 mA Open connector (switches to GND/Earth)

    Dimensions

    L57.6 x W40 x H15.8mm (incl. connectors)

    Weight

    0.012Kg

    Warranty

    5 Years


    Product form

      The CAN-bus Temp. Sensor is a battery temperature sensor for the Buck-Boost DC/DC converter range and is an essential... Read more

    £100.08 Exc. VAT
    £120.10 Inc. VAT

    • Quality
    • Reliabilty
    • Trusted

    Description



    The CAN-bus Temp. Sensor is a battery temperature sensor for the Buck-Boost DC/DC converter range and is an essential accessory when the Buck-Boost DC/DC converter is connected to a LFP lithium battery.

    Temperature sensing is needed when LFP lithium batteries are charged at low temperatures. The charge current to a lithium battery has to be reduced once the battery temperature drops below 5 degrees and the charge current has to stop when the temperature drops below zero.

    The CAN-bus Temp. Sensor takes care of this. It measures the lithium battery temperature and sends this to the Buck-Boost DC/DC converter. The Buck-Boost DC/DC converter will reduce or stop charge when the battery temperature drops too low.

    In addition to this, the CAN-bus Temp. Sensor can also be connected to the temperature sensor terminal in a Multi or Quattro, so the Multi or Quattro can reduce or stop charging when the battery temperature drops too low.




       PLEASE CLICK HERE FOR SPEC SHEET

      Brand

      Victron Energy

      Manufacturer Part Number

      ASS000200100

      Supply voltage

      4.36VDC

      Electricity consumption

      60 mA (@13.6V)

      Alarm output (pin 5)

      350 mA Open connector (switches to GND/Earth)

      Dimensions

      L57.6 x W40 x H15.8mm (incl. connectors)

      Weight

      0.012Kg

      Warranty

      5 Years
