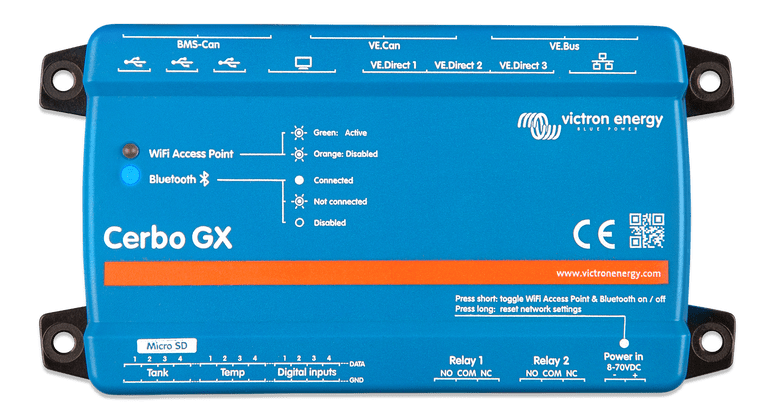

Victron Energy Cerbo GX – BPP900450100

Description

This all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch 50, a MFD or our VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.



Features

Perfect monitoring & control

Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimise the system. Follow up on alerts, perform diagnostic checks and resolve challenges remotely. The Cerbo GX turns any power challenge into an effortless experience.

Maximise your system performance

The Cerbo GX maximises the performance of your systems components in real-time and keeps them in perfect tune. With its Dual Core Processor and the addition of an extra CAN-bus port you can now support even bigger systems; closely follow managed (lithium) batteries while the second port can support up to 25 simultaneously connected VE.Can solar chargers. The new NMEA 2000-out support has the GX easily integrated into any boats network. Four tank- and four temperature ports as well as 3 VE.Direct ports, 3 USB ports, 4 digital inputs and 2 relays allow you to expand control to a new level. Maximising systems performance was never this easy.

Expand your view

The new (optional) GX Touch 50 display allows you to have an instant overview of your system and adjust settings in the blink of an eye. Its super slim 5 inch waterproof design, top-mountable setup and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.

Simple mounting and configuration

The Cerbo GX is now optimised to more than meet the standards of installer professionals. The device is easily mountable on a DIN-Rail (with DIN35 adapter small, not included) and its separate touchscreen can now be bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX) and is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard. Its new Bluetooth feature enables a quick connection and configuration via our VictronConnect app.

Outsmart any power challenge

The Cerbo GX serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as Marine, or Backup & Off-grid, it will auto-start/stop your generator, or delays ignition until the end of ‘quiet’ periods. For Energy Storage Systems it keeps backup batteries at 100%, kicks-in during power-cuts and diverts excess (solar) power to self-consumption, saving you money. For RV and Emergency vehicles it keeps vital systems function flawlessly.

CLICK HERE FOR SPEC SHEET

Brand

Victron Energy

Manufacturer Part Number

BPP900450100

GTIN

8719076048763

Supply voltage

8-70VDC

VE.Direct Ports (always isolated)

3

VE.Bus (always isolated)

2 paralleled RJ45 sockets

VE.Can

Yes – non isolated

Remote Console

Yes

USB

2 USB Host ports & 1 power only port

Ethernet

10/100 RJ45 socket – isolated except shield

Bluetooth Smart

Yes

Wifi

Built-in

BMS-Can port

Yes

Built-in RS485

No

Battery backupped clock

Yes

Operating Temperature

-20 to +50°C

Programmable Relay

2 x NO/NC

5V output

No

Temperature sense inputs

4

Digital Inputs

4

Max. VE.Direct devices

tbd – 15 orso

Dimensions

H78 x W154 x D48mm

Mounting

Wall or DIN rail (35mm)

Warranty

5 Years


Product form

This all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its... Read more

£195.00 Exc. VAT
£234.00 Inc. VAT
