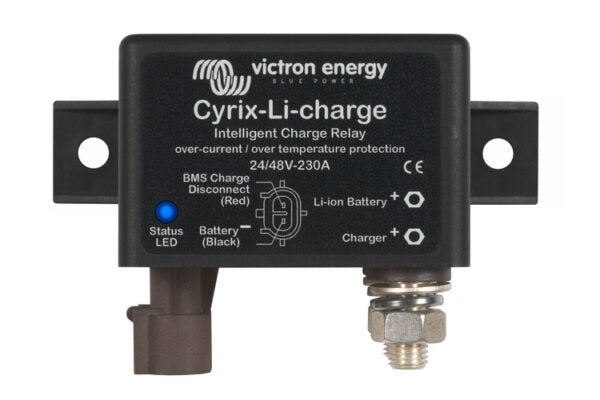

Victron Energy Cyrix-Li-charge 24/48V 230A Intelligent Charge Relay – CYR020230430

Share
- WhatsApp
- Deel
- Tweet
- Pin it
- Messenger
- Email

Description

The Cyrix-Li-Charge will connect a battery charger with 3 seconds delay:

if the charge disconnect output of the VE.Bus BMS is high, and
if it senses 13,7 V (resp. 27,4 V or 54,8 V) or more on its battery charger connection terminal, and
if it senses 2 V or more on its battery terminal (the Cyrix will remain open if not connect to the battery).

The Cyrix-Li-Charge will disengage immediately whenever its control input becomes free floating, signalling cell over voltage or cell over temperature.

In general a cell over voltage alarm will reset shortly after charging has been stopped. The Cyrix will then reconnect the charger after a delay 3 seconds. After 2 attempts to reengage with 3 seconds delay, the delay increases to 10 minutes. Whenever battery voltage is less than 13,5 V (resp. 27 V or 54 V), the Cyrix will disengage with a delay of 1 hour. Note 1: In case of zero discharge current, or a small discharge current, the Cyrix will not disengage shortly after the charger has been switched off and/or disconnected, because battery voltage will remain higher than 13,5 V. Note 2: If, after the Cyrix has disengaged, the output of the battery charger immediately increases to 13,7 V or more, the Cyrix will reengage, with 3 seconds delay.

CLICK HERE FOR SPEC SHEET

Brand	Victron Energy
Manufacturer Part Number	CYR020230430
Voltage	24/48
Continuous current & Breaking capacity at 12V or 24V	230A
Breaking Capacity at 48V	80A
Current Consumption When Open	4 mA
Control Cable Included (Length 1 m)	Yes
LED Status Indication	Yes
Protection Category	IP54
Dimensions	H65 x W100 x D50mm
Weight (kg)	0.27
Warranty	5 Years

Product form

The Cyrix-Li-Charge will connect a battery charger with 3 seconds delay: if the charge disconnect output of the VE.Bus... Read more

£113.40 Exc. VAT
£136.08 Inc. VAT
