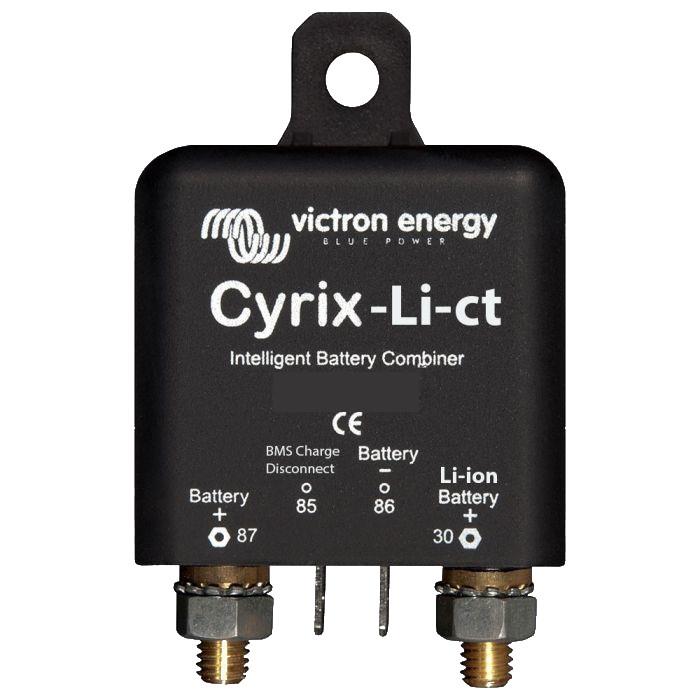

Victron Energy Cyrix-Li-ct 12/24V 120A Intelligent Li-ion Battery Combiner – CYR010120412

Description





The functionality of the Cyrix-Li-ct is analogous to the Cyrix-ct.

The Cyrix-Li-ct will parallel connect a lead acid starter battery and a LiFePO4 battery:

  • if the Charge Disconnect output of the VE.Bus BMS is high, and
  • if it senses 13,4V (resp. 26,8V) or more on one of its power terminals

The Cyrix will disengage immediately:

  • when its control output becomes free floating, signalling cell over voltage or cell over temperature, and/or
  • when battery voltage drops below 13,2V. Start assist function: a short positive pulse will close the relay during 30 seconds

A built-in transient voltage suppressor will limit the voltage spike that may occur when the Cyrix suddenly disengages due to cell overvoltage or over temperature.

Brand

Victron Energy

Manufacturer Part Number

CYR010120412

Voltage

12/24

Continuous current & Breaking capacity at 12V or 24V

120A

Current Consumption When Open

4 mA

Protection Category

IP54

Dimensions

H46 x W46 x D80mm

Weight (kg)

0.11

Warranty

5 Years


Product form

    The functionality of the Cyrix-Li-ct is analogous to the Cyrix-ct. The Cyrix-Li-ct will parallel connect a lead acid... Read more

£58.04 Exc. VAT
£69.65 Inc. VAT
