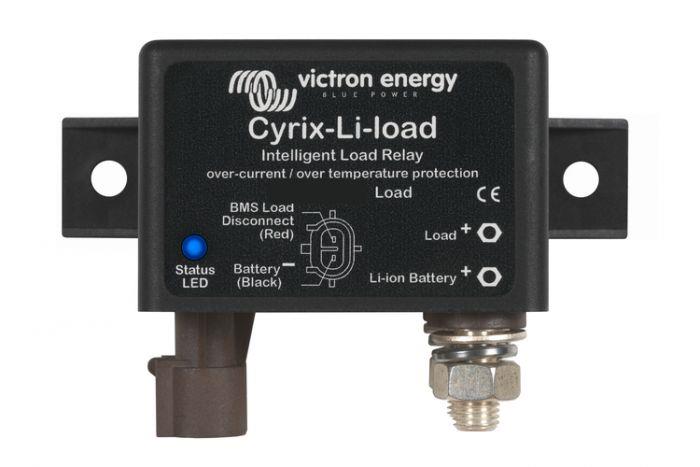

Victron Energy Cyrix-Li-load 24/48V 230A Intelligent Charge Relay – CYR020230450

Description



The Cyrix-Li-load will disengage when its control input becomes free floating. If the battery voltage recovers after disconnection (which will happen when no other loads are connected to the battery), the output of the BMS will become high and the Cyrix will reengage after 30 seconds. After 3 attempts to reengage, the Cyrix will remain disengaged until battery voltage has increased to more than 13 V (resp. 26 V or 52 V) during at least 30 seconds (which is a sign that the battery is being recharged). Alternatively, a BatteryProtect can be used (advantage: very low power consumption).
Brand

Victron Energy

Manufacturer Part Number

CYR020230450

Voltage

24/48

LED Status Indication

Yes

Continuous current & Breaking capacity at 12V or 24V

230A

Breaking Capacity at 48V

80 A

Current Consumption When Open

4 mA

Control Cable Included (Length 1 m)

Yes

Protection Category

IP54

Dimensions

H65 x W100 x D50mm

Weight (kg)

0.27

Warranty

5 Years


Product form

  The Cyrix-Li-load will disengage when its control input becomes free floating. If the battery voltage recovers after disconnection (which... Read more

£123.70 Exc. VAT
£148.44 Inc. VAT
