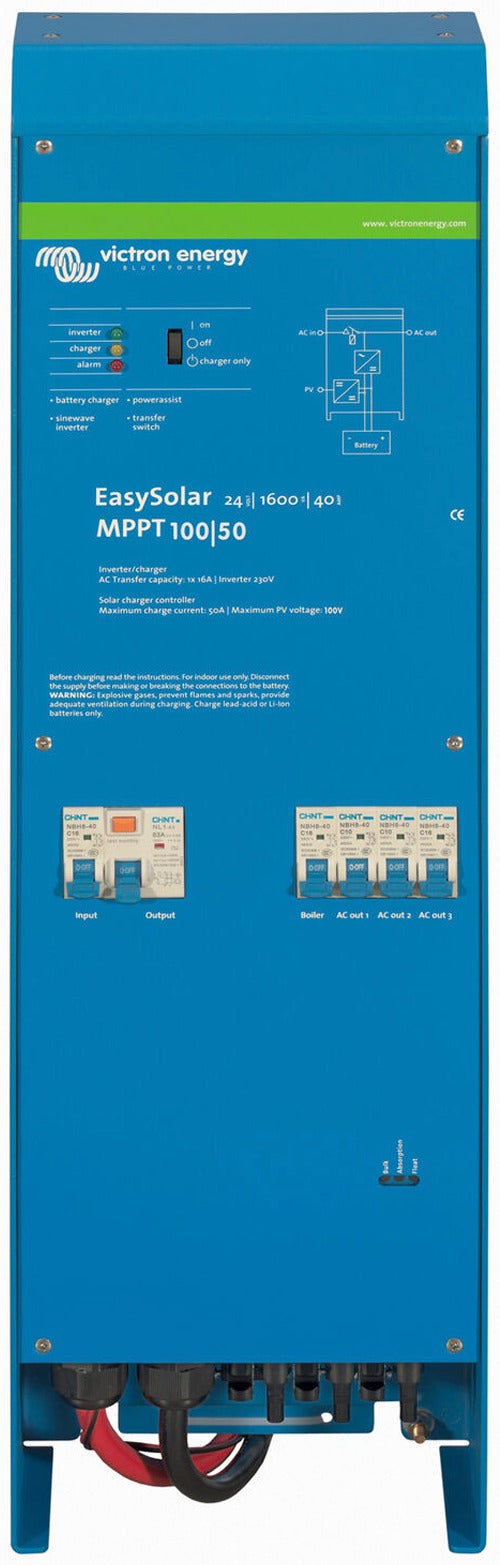

Victron Energy EasySolar 24/1600/40-16 with MPPT 100/50 – CEP241621010

Description


The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.



Features

All-in-one solar power solution

The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.

The solar charge controller: Blue Solar MPPT 100/50

Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.

The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40

The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.

AC distribution

The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers.

One 16A output is controlled by the AC input: it will switch on only when AC is available.

PowerAssist

Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.

Unique solar application software

Several software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications.



Brand

Victron Energy

Manufacturer Part Number

CEP241621010

GTIN

8719076021605

Voltage

24V

Transfer Switch

16A

Continuous Output Power at 25°C

1600VA/1300W

Peak power

3000W

Charger Current House Battery

40A

Battery Temperature Sensor

Yes

Programmable Relay

Yes

Ingress Protection

IP22

Battery-Connection

Battery cables of 1.5 meter

Dimensions (Including Terminals)

H745 x W214 x D110mm

Weight

15Kg

Warranty

5 Years

Product form

CLICK HERE FOR SPEC SHEETS The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one... Read more

£986.00 Exc. VAT
£1,183.20 Inc. VAT
