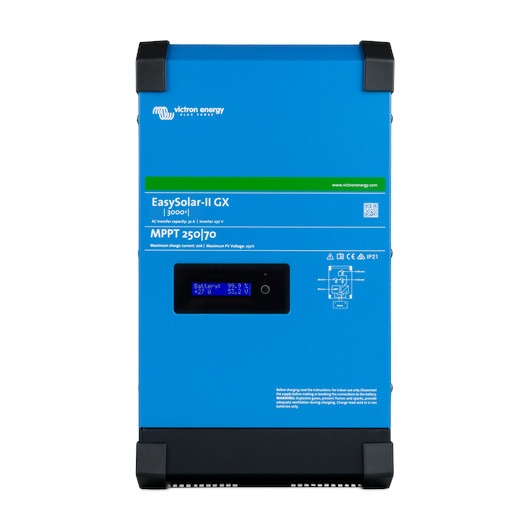

Victron Energy EasySolar-II 24V 3000VA 70A 32A MPPT 250/70 GX – PMP242307010

Description


 The EasySolar-II GX combines a MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.



Features

The all-in-one solar power solution

The Victron EasySolar-II GX integrates the following elements:

  • A MultiPlus-II inverter/charger
  • A SmartSolar MPPT -Tr solar charge controller
  • A GX device with a 2 x 16 character display

These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.

Display and wifi

The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other wifi enabled device. In addition, wifi can be used to set up the system and to change settings.

Solar charge controller

The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger. The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

GX device

The integrated GX device includes:

  • A VE.Can interface. This can be used to connect to Victron VE.Can devices (e.g. VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery
  • A USB port
  • A Ethernet port
  • A VE.Direct port The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
Brand

Victron Energy

Manufacturer Part Number

PMP242307010

GTIN

8719076049265

Voltage

24V

Cont. Output Power at 25°C

3000VA

Peak Power

5500W

Output AC Voltage

230V

Transfer Switch

32A

Max. AC Input Current

32A

Max. Battery Charge Current

70A

Protection Category

IP21

Efficiency

94%

Bluetooth Compatible

Yes

Dimensions

H499 x W268 x D237mm

Weight

26Kg

Warranty

5 Years


Product form

CLICK HERE FOR SPEC SHEETS  The EasySolar-II GX combines a MPPT Solar Charge Controller, an inverter/charger and control hub in... Read more

£1,182.10 Exc. VAT
£1,418.52 Inc. VAT
