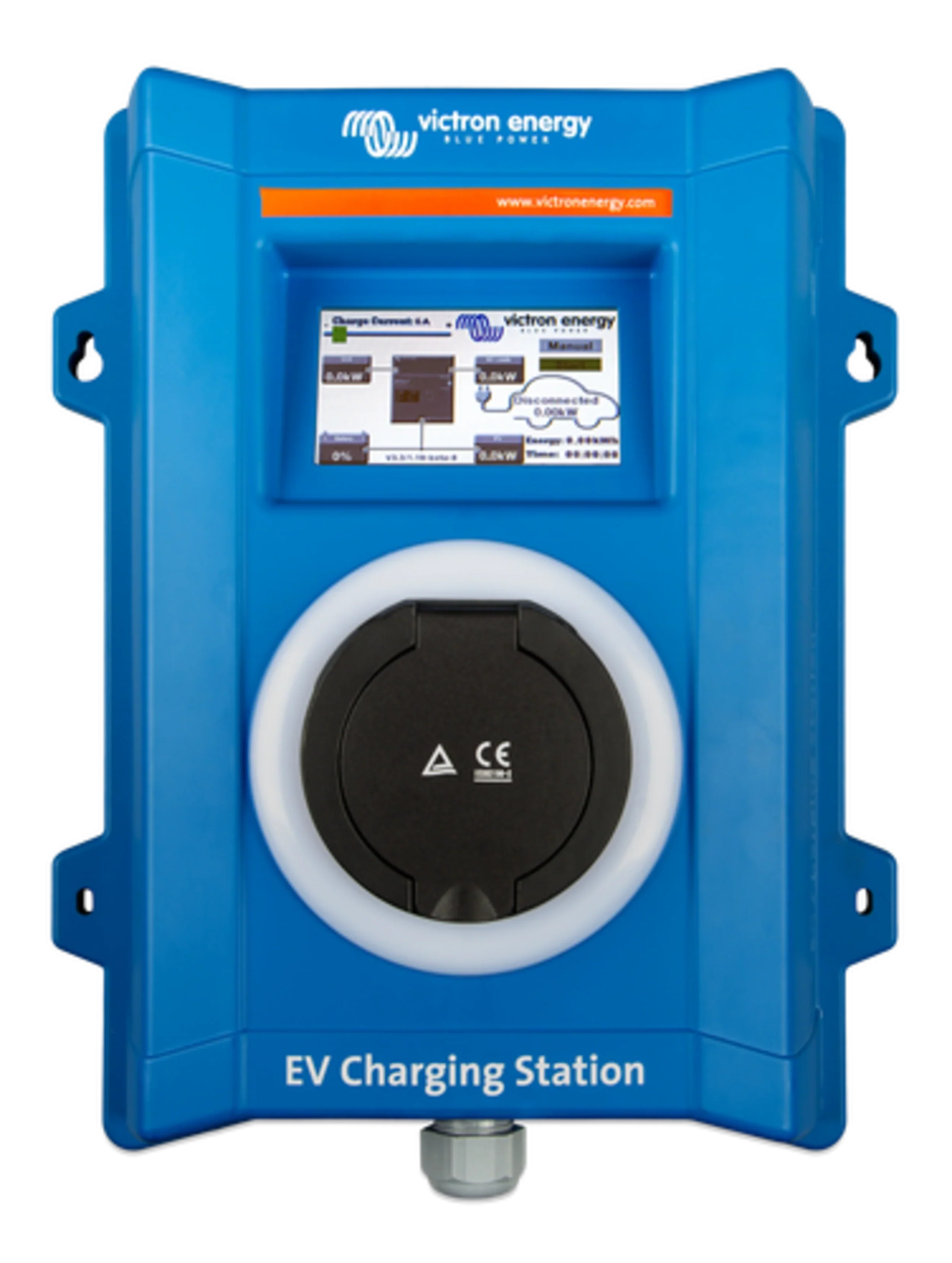

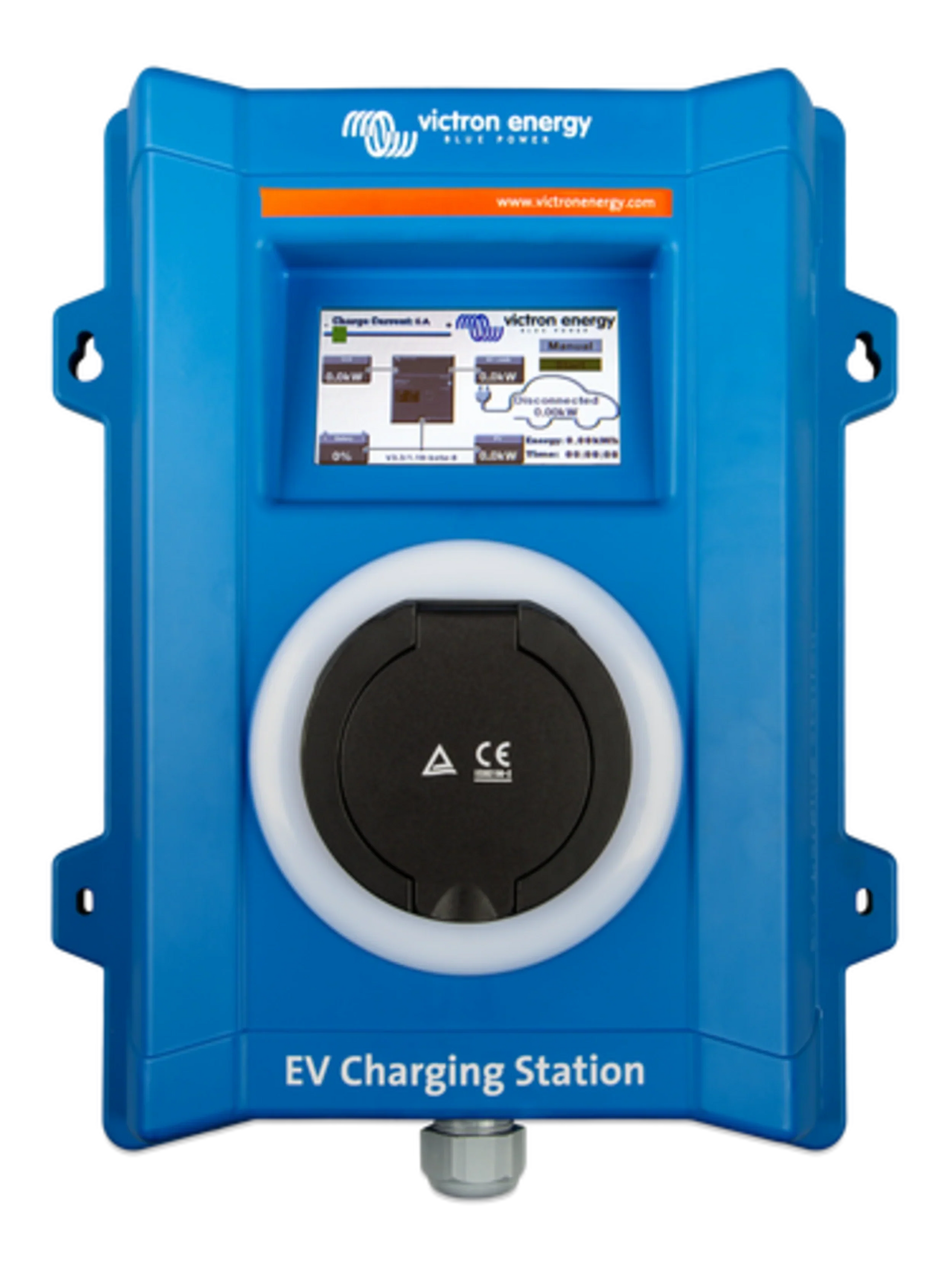

Victron Energy EV Charging Station - EVC300400300

Description

The EV Charging Station has three phase and single-phase capabilities. It delivers maximum 22kW AC in three phase mode or 7.3kW in single phase mode.



It incorporates 4.3-inch LCD touch screen for monitoring and control.



Fully programmable RGB Light Ring around charging port, to quickly determine the device state.


It can be programmed from the web interface to display different light effects based on the current state (disconnected, charging, charged etc.). The objective is to help the user see the current state from a distance.



GTIN 8719076051305
Input Voltage Range 170 – 265V AC
Rated Charge Current 32A / phase
Nominal Power 22kW
Current Output Range 6 – 32A
Data Communication Modbus TCP over WIFI
Protection Category IP44
Dimensions H390 x W300 x D150mm
Weight 3Kg
Warranty 5 Years




Product form

The EV Charging Station has three phase and single-phase capabilities. It delivers maximum 22kW AC in three phase mode or... Read more

£596.64 Exc. VAT
£715.97 Inc. VAT

  • Quality
  • Reliabilty
  • Trusted

Description

The EV Charging Station has three phase and single-phase capabilities. It delivers maximum 22kW AC in three phase mode or 7.3kW in single phase mode.



It incorporates 4.3-inch LCD touch screen for monitoring and control.



Fully programmable RGB Light Ring around charging port, to quickly determine the device state.


It can be programmed from the web interface to display different light effects based on the current state (disconnected, charging, charged etc.). The objective is to help the user see the current state from a distance.



GTIN 8719076051305
Input Voltage Range 170 – 265V AC
Rated Charge Current 32A / phase
Nominal Power 22kW
Current Output Range 6 – 32A
Data Communication Modbus TCP over WIFI
Protection Category IP44
Dimensions H390 x W300 x D150mm
Weight 3Kg
Warranty 5 Years
