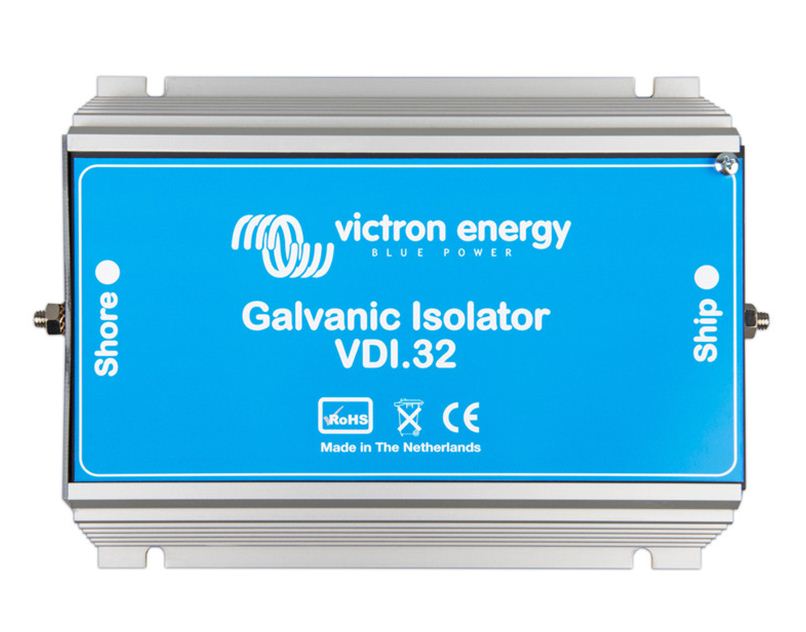

The isolator is installed directly behind your boat’s 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.
| Brand |
Victron Energy |
|---|---|
| Manufacturer Part Number |
GDI000032000 |
| Peak Current (20 ms) |
3200 A |
| Maximum Current |
32 A |
| Connection |
M6 |
| IP Rating |
IP67 |
| Dimensions |
H63 x W164 x D200mm |
| Weight (kg) |
2 |
| Warranty |
5 Years |
