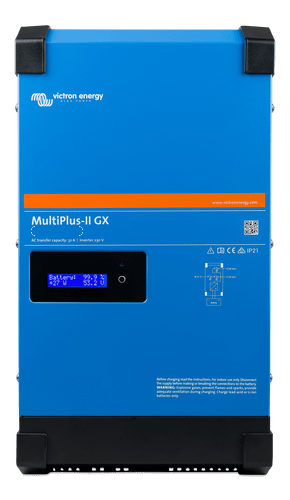

Victron Energy MultiPlus-II 24/3000/70-32 GX – PMP242306000

Description



 An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features – such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power – can all be controlled straight from your phone or smart device. Remote monitoring is also possible.



Features

A MultiPlus-II with LCD and GX functionality

The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.

Display and Wi-Fi

The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.

GX device

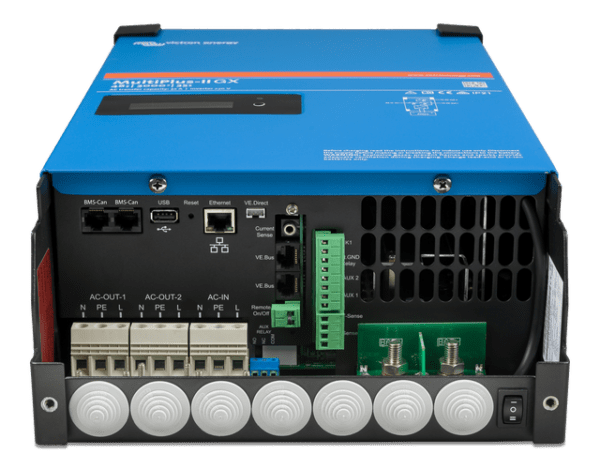

The integrated GX device includes:

  • A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery.
  • A USB port.
  • A Ethernet port.
  • A VE.Direct port.

Applications

The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.

Parallel and three phase operation

Only one GX unit is needed in case of Parallel and three phase operation

    Brand

    Victron Energy

    Manufacturer Part Number

    PMP242306000

    GTIN

    8719076051695

    Voltage

    24V

    Transfer Switch

    32A

    Cont. output power at 25 °C

    3000VA

    Cont. output power at 40 °C

    2200W

    Peak power

    5500W

    Efficiency

    94%

    Zero load power

    13W

    Maximum battery charge current

    70A

    Battery Temperature Sensor

    Yes

    Programmable Relay

    Yes

    Protection Category

    IP22

    Battery-Connection

    M8 Bolts

    Dimensions

    H506 x W275 x D147mm

    Weight

    19Kg

    Warranty

    5 Years

    Country of Manufacture

    India


    Product form

    CLICK HERE FOR SPEC SHEETS    An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger,... Read more

    £1,129.14 Exc. VAT
    £1,354.97 Inc. VAT
