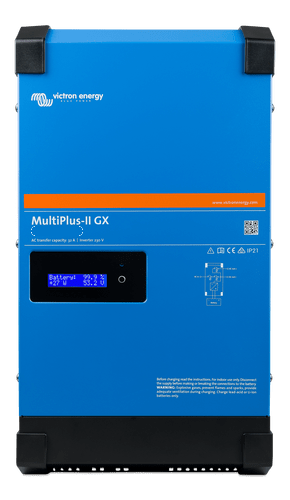

Victron Energy MultiPlus-II 48/3000/35-32 GX – PMP482306000

Description



An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features – such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power – can all be controlled straight from your phone or smart device. Remote monitoring is also possible.



Features

A MultiPlus-II with LCD and GX functionality

The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.

Display and Wi-Fi

The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.

GX device

The integrated GX device includes:

  • A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery.
  • A USB port.
  • A Ethernet port.
  • A VE.Direct port.

Applications

The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.

Parallel and three phase operation

Only one GX unit is needed in case of Parallel and three phase operation

        Brand

        Victron Energy

        Manufacturer Part Number

        PMP482306000

        Voltage

        48

        Transfer Switch (A)

        32

        Cont. Output Power at 25°C (W)

        2400

        Peak Power (W)

        5500

        Max Efficiency

        95%

        Zero Load Power (W)

        11

        Battery Temperature Sensor

        Yes

        Programmable Relay

        Yes

        Remote on-off

        Yes

        Protection Category

        IP21

        Dimensions

        H506 x W275 x D147mm

        Weight (kg)

        26

        Warranty

        5 Years

        Country of Manufacture

        China


        Product form

        CLICK HERE FOR SPEC SHEETS   An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger,... Read more

        £834.90 Exc. VAT
        £1,001.88 Inc. VAT

        • Quality
        • Reliabilty
        • Trusted

        Description



        An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features – such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power – can all be controlled straight from your phone or smart device. Remote monitoring is also possible.



        Features

        A MultiPlus-II with LCD and GX functionality

        The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.

        Display and Wi-Fi

        The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.

        GX device

        The integrated GX device includes:

        • A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery.
        • A USB port.
        • A Ethernet port.
        • A VE.Direct port.

        Applications

        The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.

        Parallel and three phase operation

        Only one GX unit is needed in case of Parallel and three phase operation

              Brand

              Victron Energy

              Manufacturer Part Number

              PMP482306000

              Voltage

              48

              Transfer Switch (A)

              32

              Cont. Output Power at 25°C (W)

              2400

              Peak Power (W)

              5500

              Max Efficiency

              95%

              Zero Load Power (W)

              11

              Battery Temperature Sensor

              Yes

              Programmable Relay

              Yes

              Remote on-off

              Yes

              Protection Category

              IP21

              Dimensions

              H506 x W275 x D147mm

              Weight (kg)

              26

              Warranty

              5 Years

              Country of Manufacture

              China
