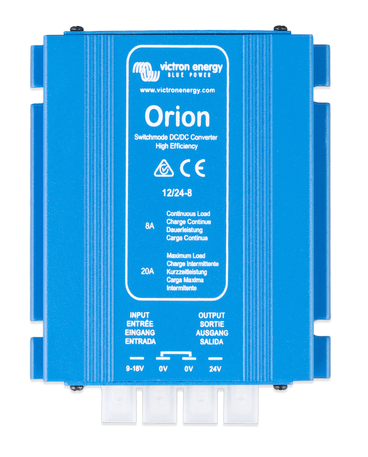

Victron Energy Orion 12/24-8 DC-DC Converter IP20 – ORI122408020

Description

Remote on-off connector

The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).

All models with adjustable output can also be used as a battery charger

For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models with adjustable output can be paralleled to increase output current

Up to five units can be connected in parallel.

Easy to install

Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40).

Low power models: please see Orion-Tr series



     PLEASE CLICK HERE FOR SPEC SHEET

    Brand

    Victron Energy

    Manufacturer Part Number

    ORI122408020

    Input Voltage Range

    9-18V

    Output Voltage

    24V

    Under Voltage Shutdown

    8V

    Under Voltage Restart

    10V

    Continuous Output Current

    8A

    DC Connection

    Faston tabs 6.3mm

    Remote on-off

    No

    Galvanic Isolation

    No

    Can be connected in parallel

    No

    Protection Category

    IP20

    Dimensions

    H45 x W90 x D115mm

    Weight (kg)

    0.4

    Warranty

    5 Years


    Product form

    Remote on-off connector The remote on-off eliminates the need for a high current switch in the input wiring. The remote... Read more

    £38.46 Exc. VAT
    £46.15 Inc. VAT

    • Quality
    • Reliabilty
    • Trusted

    Description

    Remote on-off connector

    The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).

    All models with adjustable output can also be used as a battery charger

    For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

    All models with adjustable output can be paralleled to increase output current

    Up to five units can be connected in parallel.

    Easy to install

    Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40).

    Low power models: please see Orion-Tr series



       PLEASE CLICK HERE FOR SPEC SHEET

      Brand

      Victron Energy

      Manufacturer Part Number

      ORI122408020

      Input Voltage Range

      9-18V

      Output Voltage

      24V

      Under Voltage Shutdown

      8V

      Under Voltage Restart

      10V

      Continuous Output Current

      8A

      DC Connection

      Faston tabs 6.3mm

      Remote on-off

      No

      Galvanic Isolation

      No

      Can be connected in parallel

      No

      Protection Category

      IP20

      Dimensions

      H45 x W90 x D115mm

      Weight (kg)

      0.4

      Warranty

      5 Years
