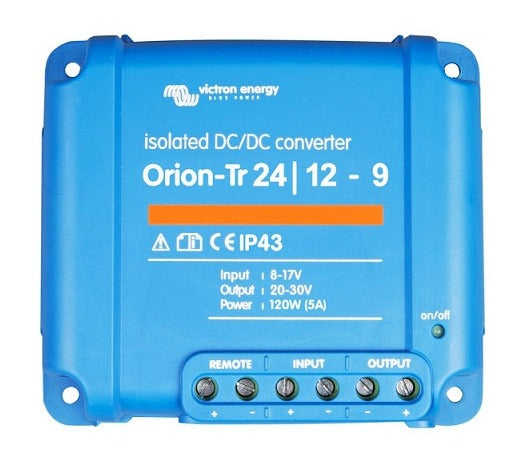

Victron Energy Orion-Tr 24/12-9A (110W) Isolated DC-DC Converter – ORI241210110R

Description

Remote on-off

The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.

IP43 protection
When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

Input fuse
On 12V and 24V input models only.


 PLEASE CLICK HERE FOR SPEC SHEET

Brand

Victron Energy

Manufacturer Part Number

ORI241210110R

Input Voltage Range

16-35V

Under Voltage Shutdown

14V

Under Voltage Restart

15V

Nominal Output Voltage

12.2V

Output Voltage Adjust Range

10-15V

Short Circuit Output Current

39A

Cont. Output Power at 25°C

110W

DC Connection

Screw Terminals

Protection Category

IP43

Dimensions

H100 x W113 x D47mm

Weight (kg)

0.42

Warranty

5 Years

Product form

Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off... Read more

£44.90 Exc. VAT
£53.88 Inc. VAT

  • Quality
  • Reliabilty
  • Trusted

Description

Remote on-off

The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.

IP43 protection
When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

Input fuse
On 12V and 24V input models only.


 PLEASE CLICK HERE FOR SPEC SHEET

Brand

Victron Energy

Manufacturer Part Number

ORI241210110R

Input Voltage Range

16-35V

Under Voltage Shutdown

14V

Under Voltage Restart

15V

Nominal Output Voltage

12.2V

Output Voltage Adjust Range

10-15V

Short Circuit Output Current

39A

Cont. Output Power at 25°C

110W

DC Connection

Screw Terminals

Protection Category

IP43

Dimensions

H100 x W113 x D47mm

Weight (kg)

0.42

Warranty

5 Years
