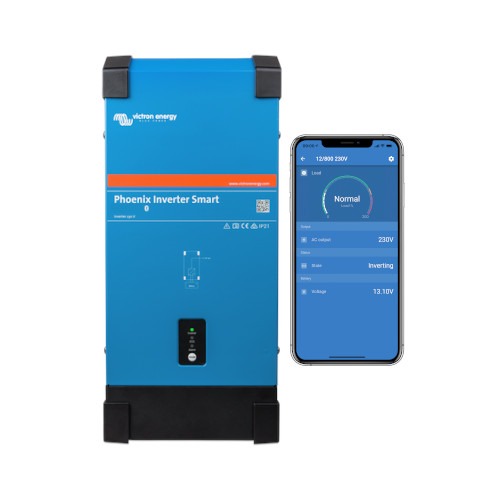

Victron Energy Phoenix Inverter 24/2000 230V Smart – PIN242201000

Description



The Phoenix Inverter 24/2000 Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600VA, 2000VA, 3000VA and 5000VA for 12, 24 or 48V systems.

It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave.

Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.

Bluetooth is built-in, and makes setting up your high power inverter easier than ever before.
Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within VictronConnect.

Features of the Phoenix 24/2000 Smart

Bluetooth built-in: fully configurable with a tablet or smartphone

  • Low battery voltage alarm
  • Low battery voltage cut-off and restart levels
  • Dynamic cut-off: load dependent cut-off level
  • Output voltage: 210 – 245V
  • Frequency: 50 Hz or 60 Hz
  • ECO mode on/off and ECO mode sense level
  • Alarm relay

Monitoring:

  • In- and output voltage, load and alarms

 VE.Direct communication port

The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters

    Proven reliability

    The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

    High start-up power

    Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

    ECO mode

    When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

    Remote on/off

    A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

    To transfer the load to another AC source: the automatic transfer switch



    For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.



    Control over system

    Want to have perfect control over your system from wherever you are whilst using your Phoenix Inverter 24/1600 Smart, why not have a look at the CerboGX. Simply connect through the Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, a MFD or the VictronConnect App thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.

    Brand

    Victron Energy

    Manufacturer Part Number

    PIN242201000

    gtin

    8719076057536

    Voltage

    24V

    Cont. Output Power at 25ºC

    2000VA

    Peak Power

    4000W

    Output AC Voltage

    230V

    Efficiency

    94%

    Protection Category

    IP21

    Dimensions

    H485 x W219 x D125mm

    Weight

    13Kg

    Warranty

    5 Years

    Bluetooth Enabled

    Yes

    Country of Manufacture

    China

    Product form

      The Phoenix Inverter 24/2000 Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix... Read more

    £533.00 Exc. VAT
    £639.60 Inc. VAT

    • Quality
    • Reliabilty
    • Trusted

    Description



    The Phoenix Inverter 24/2000 Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600VA, 2000VA, 3000VA and 5000VA for 12, 24 or 48V systems.

    It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave.

    Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.

    Bluetooth is built-in, and makes setting up your high power inverter easier than ever before.
    Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within VictronConnect.

    Features of the Phoenix 24/2000 Smart

    Bluetooth built-in: fully configurable with a tablet or smartphone

    • Low battery voltage alarm
    • Low battery voltage cut-off and restart levels
    • Dynamic cut-off: load dependent cut-off level
    • Output voltage: 210 – 245V
    • Frequency: 50 Hz or 60 Hz
    • ECO mode on/off and ECO mode sense level
    • Alarm relay

    Monitoring:

    • In- and output voltage, load and alarms

     VE.Direct communication port

    The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters

      Proven reliability

      The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

      High start-up power

      Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

      ECO mode

      When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

      Remote on/off

      A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

      To transfer the load to another AC source: the automatic transfer switch



      For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.



      Control over system

      Want to have perfect control over your system from wherever you are whilst using your Phoenix Inverter 24/1600 Smart, why not have a look at the CerboGX. Simply connect through the Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, a MFD or the VictronConnect App thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.

      Brand

      Victron Energy

      Manufacturer Part Number

      PIN242201000

      gtin

      8719076057536

      Voltage

      24V

      Cont. Output Power at 25ºC

      2000VA

      Peak Power

      4000W

      Output AC Voltage

      230V

      Efficiency

      94%

      Protection Category

      IP21

      Dimensions

      H485 x W219 x D125mm

      Weight

      13Kg

      Warranty

      5 Years

      Bluetooth Enabled

      Yes

      Country of Manufacture

      China
