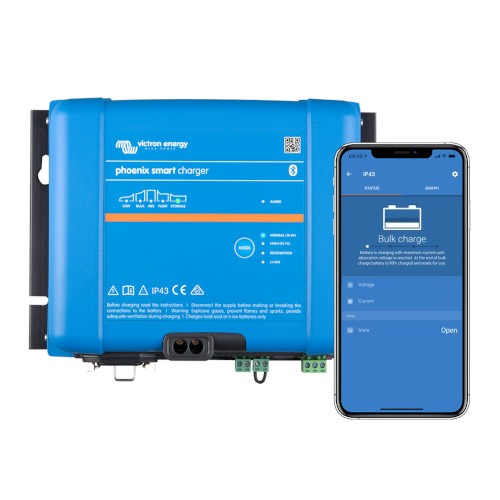

Victron Energy Phoenix Smart IP43 Charger 12/30(1+1) 120-240V – PSC123051095

Description

With boat owners in mind this adaptive 5-step Phoenix Smart Ip43 charger 12/30(1+1) can provide either 30A or 50A of charge to each of three battery banks. Or the Phoenix 1+1 model provides 3A to the starter-battery, the rest to the ‘house’ bank. 24V models are available with 16A/25A charge. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features – see the datasheet below.



Features of the Phoenix Smart IP43 Charger 12/30(1+1)

Bluetooth Smart enabled

Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.



Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage

The Phoenix Smart IP43 charger features our well-known ‘adaptive’ battery management system that can be pre-set to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the charge process relative to the way the battery is being used.



The right amount of charge: variable absorption time

When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery will be fully charged.



Preventing damage due to excessive gassing: the BatterySafe mode

If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached



Less maintenance and aging when the battery is not in use: the Storage Mode

The Storage Mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the Storage Mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.



Brand

Victron Energy

Manufacturer Part Number

PSC123051095

gtin

8719076053484

Voltage

12V

Charge Current

30A

Input Voltage

85-265VAC

Number of Outputs

1+1

Protection Category

Electronic components: IP43, Connection area: IP22

Efficiency

95%

Bluetooth Enabled

Yes

Dimensions

H180 x W249 x D116mm

Weight

2.7Kg

Warranty

5 Years

Country of Manufacture

Malaysia

Product form

With boat owners in mind this adaptive 5-step Phoenix Smart Ip43 charger 12/30(1+1) can provide either 30A or 50A of... Read more

£263.70 Exc. VAT
£316.44 Inc. VAT
