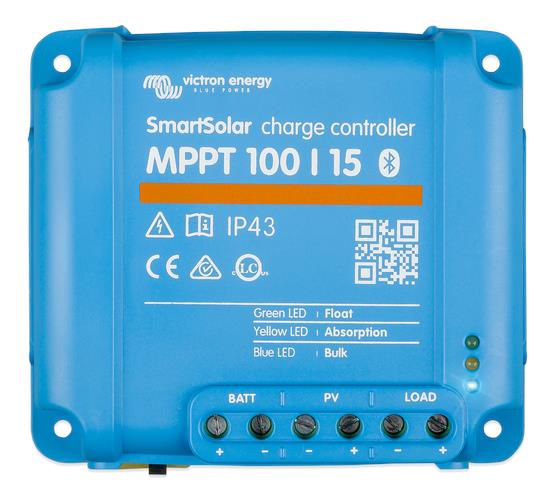

Victron Energy SmartSolar MPPT 100/15 – SCC110015060R

Description

 A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.



MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations – even when there is no internet connection or phone signal nearby – you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.

Load output

The intelligent Load output function prevents damage caused by running batteries ‘flat’. You can configure the voltage at which SmartSolar disconnects a load – thereby preventing excessive drain on your batteries. And here’s the clever bit: SmartSolar will attempt a 100% recharge every day. If it can’t – during periods of poor weather – it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.

Bluetooth Smart built-in

The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.

VE.Direct

For a wired data connection to a Color Control GX, other GX products, PC or other devices

Battery Life: intelligent battery management

When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature.

Optional external battery voltage and temperature sensing via Bluetooth

A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.



                             CLICK HERE FOR SPEC SHEET

                            Brand

                            Victron Energy

                            Manufacturer Part Number

                            SCC110015060R

                            GTIN

                            8719076040811

                            Battery Voltage

                            12/24 Auto Select

                            Rated Charge Current

                            15A

                            Nominal PV Power, 12V

                            220W

                            Nominal PV Power, 24V

                            440W

                            Max. PV Short Circuit Current

                            15A

                            Maximum PV Open Circuit Voltage

                            100V

                            Efficiency

                            98%

                            Charge Algorithm

                            Multi-stage adaptive

                            Data Communication Port

                            VE.Direct

                            IP Rating

                            IP43 (electronic components), IP22 (connection area)

                            Dimensions

                            H100 x W113 x D50mm

                            Weight

                            0.6Kg

                            Warranty

                            5 Years


                            Product form

                             A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology,... Read more

                            £85.21 Exc. VAT
                            £102.25 Inc. VAT
