The intelligent Load output function prevents damage caused by running batteries ‘flat’. You can configure the voltage at which SmartSolar disconnects a load – thereby preventing excessive drain on your batteries. And here’s the clever bit: SmartSolar will attempt a 100% recharge every day. If it can’t – during periods of poor weather – it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.

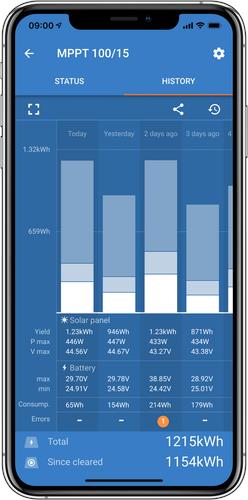

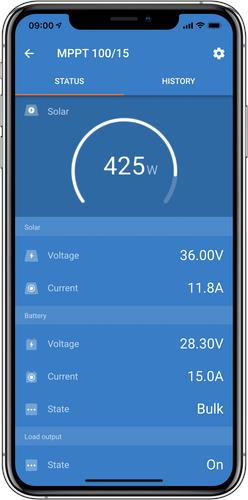

Bluetooth Smart built-in
The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
For a wired data connection to a Color Control GX, other GX products, PC or other devices
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%.
The full output current up to 40°C (104°F).
Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).
Extensive electronic protection
Over-temperature protection and power derating when temperature is high.
PV short circuit and PV reverse polarity protection.
PV reverse current protection.
Internal temperature sensor
Compensates absorption and float charge voltage for temperature.
Optional external battery voltage and temperature sensing via Bluetooth
A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.
|Manufacturer Part Number
12/24V Auto Select
|Rated Charge Current
|Nominal PV Power, 12V
|Nominal PV Power, 24V
|Max. PV Short Circuit Current
|Maximum PV Open Circuit Voltage
|Data Communication Port
IP43 (electronic components), IP22 (connection area)
H130 x W186 x D70mm
