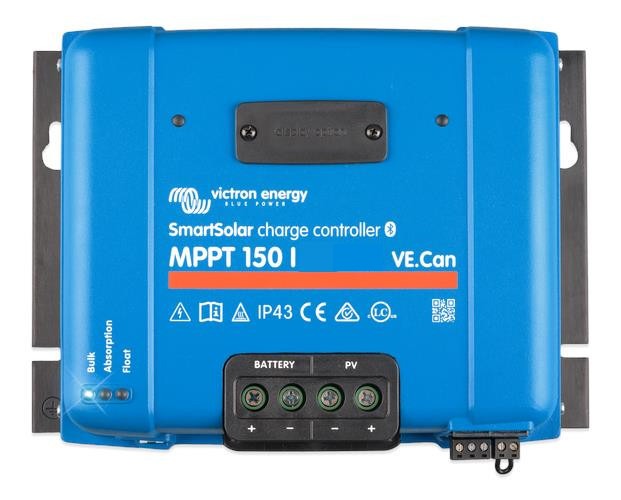

Victron Energy SmartSolar MPPT 150/100-MC4 VE.Can – SCC115110511

Description

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.



Features

Control Your Charger Remotely

The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.

Daisy Chain Additional Units

The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply “daisy chained” to each other with a single RJ45 cable between the individual units.

When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.

Remote Monitoring and Control

If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).

For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520.

Ultra-fast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points (MPP) may be present on the powervoltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98%.

Flexible charge algorithm

Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Bluetooth Smart built-in

The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.

Internal temperature sensor and optional external battery voltage, temperature and current sensing via Bluetooth

A Smart Battery Sense, a BMV-712 Smart Battery Monitor or a SmartShunt can be used to communicate battery voltage and temperature (and current, in case of a BMV 712 or a SmartShunt) to one or more SmartSolar Charge Controllers.

VE.Direct or VE.Can

For a wired data connection to a Color Control GX, other GX products, PC or other devices

Fully discharged battery recovery function

Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.

VE.Can: the multiple controller solution

Up to 25 units can be synchronised with VE.Can, and up to 10 units with Bluetooth

Remote on-off

To connect for example to a VE.BUS BMS.

Programmable relay

Can be programmed to trip on an alarm, or other events.

Optional: SmartSolar pluggable LCD display

Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.



                             CLICK HERE FOR SPEC SHEET

                            Brand

                            Victron Energy

                            Manufacturer Part Number

                            SCC115110511

                            GTIN

                            8719076050360

                            Battery Voltage

                            12/24/48V Auto Select (36V: manual)

                            Rated Charge Current

                            100A

                            Nominal PV Power, 12V

                            1450W

                            Nominal PV Power, 24V

                            2900W

                            Max. PV Short Circuit Current

                            70A (max 30A per MC4 conn.)

                            Maximum PV Open Circuit Voltage

                            150V absolute maximum coldest conditions 145V start-up and operating maximum

                            Efficiency

                            98%

                            Charge Algorithm

                            multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm

                            Data Communication Port

                            VE.Can, VE.Direct and Bluetooth

                            IP Rating

                            IP43 (electronic components), IP22 (connection area)

                            Dimensions

                            H246 x W295 x D103mm

                            Weight

                            4.5Kg

                            Warranty

                            5 Years


                            Product form

                            The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy... Read more

                            £354.50 Exc. VAT
                            £425.40 Inc. VAT

                            • Quality
                            • Reliabilty
                            • Trusted

                            Description

                            The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks.

                            The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.



                            Features

                            Control Your Charger Remotely

                            The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.

                            Daisy Chain Additional Units

                            The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply “daisy chained” to each other with a single RJ45 cable between the individual units.

                            When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.

                            Remote Monitoring and Control

                            If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).

                            For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520.

                            Ultra-fast Maximum Power Point Tracking (MPPT)

                            Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

                            Advanced Maximum Power Point Detection in case of partial shading conditions

                            If partial shading occurs, two or more maximum power points (MPP) may be present on the powervoltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

                            Outstanding conversion efficiency

                            No cooling fan. Maximum efficiency exceeds 98%.

                            Flexible charge algorithm

                            Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

                            Extensive electronic protection

                            Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

                            Bluetooth Smart built-in

                            The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.

                            Internal temperature sensor and optional external battery voltage, temperature and current sensing via Bluetooth

                            A Smart Battery Sense, a BMV-712 Smart Battery Monitor or a SmartShunt can be used to communicate battery voltage and temperature (and current, in case of a BMV 712 or a SmartShunt) to one or more SmartSolar Charge Controllers.

                            VE.Direct or VE.Can

                            For a wired data connection to a Color Control GX, other GX products, PC or other devices

                            Fully discharged battery recovery function

                            Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.

                            VE.Can: the multiple controller solution

                            Up to 25 units can be synchronised with VE.Can, and up to 10 units with Bluetooth

                            Remote on-off

                            To connect for example to a VE.BUS BMS.

                            Programmable relay

                            Can be programmed to trip on an alarm, or other events.

                            Optional: SmartSolar pluggable LCD display

                            Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.



                                                       CLICK HERE FOR SPEC SHEET

                                                      Brand

                                                      Victron Energy

                                                      Manufacturer Part Number

                                                      SCC115110511

                                                      GTIN

                                                      8719076050360

                                                      Battery Voltage

                                                      12/24/48V Auto Select (36V: manual)

                                                      Rated Charge Current

                                                      100A

                                                      Nominal PV Power, 12V

                                                      1450W

                                                      Nominal PV Power, 24V

                                                      2900W

                                                      Max. PV Short Circuit Current

                                                      70A (max 30A per MC4 conn.)

                                                      Maximum PV Open Circuit Voltage

                                                      150V absolute maximum coldest conditions 145V start-up and operating maximum

                                                      Efficiency

                                                      98%

                                                      Charge Algorithm

                                                      multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm

                                                      Data Communication Port

                                                      VE.Can, VE.Direct and Bluetooth

                                                      IP Rating

                                                      IP43 (electronic components), IP22 (connection area)

                                                      Dimensions

                                                      H246 x W295 x D103mm

                                                      Weight

                                                      4.5Kg

                                                      Warranty

                                                      5 Years
