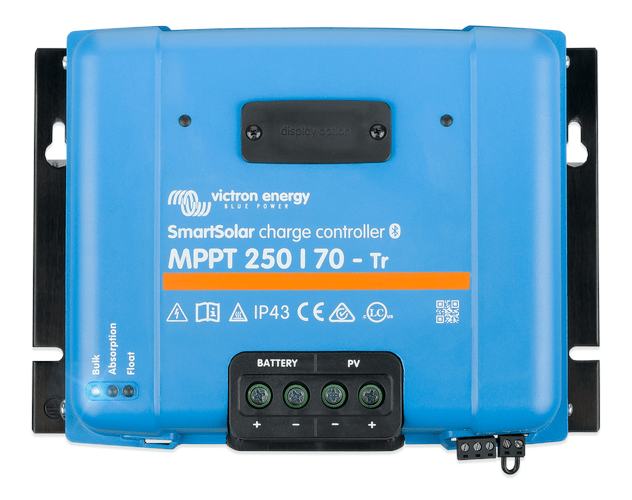

Victron Energy SmartSolar MPPT 250/70-Tr – SCC125070221

Description

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.



Features

Remote Monitoring and Control

Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520.

Bluetooth Smart built-in

The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.

Ultra-fast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98%.

Flexible charge algorithm

Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature.

Optional external battery voltage, temperature and current sensing via Bluetooth

A Smart Battery Sense, a BMV-712 Smart Battery Monitor or a SmartShunt can be used to communicate battery voltage and temperature (and current, in case of a BMV 712 or a SmartShunt) to one or more SmartSolar Charge Controllers.

Synchronized parallel charging with Bluetooth

Up to 10 units can be synchronized with Bluetooth.

Fully discharged battery recovery function

Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.

VE.Direct

For a wired data connection to a Color Control GX, other GX products, PC or other devices

Remote on-off

To connect for example to a VE.BUS BMS.

Programmable relay

Can be programmed to trip on an alarm, or other events.

Optional: SmartSolar pluggable LCD display

Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.



                             CLICK HERE FOR SPEC SHEET

                            Brand

                            Victron Energy

                            Manufacturer Part Number

                            SCC125070221

                            GTIN

                            8719076050865

                            Battery Voltage

                            12/24/48V Auto Select (software tool needed to select 36V)

                            Rated Charge Current

                            70A

                            Nominal PV Power, 12V

                            1000W

                            Nominal PV Power, 24V

                            2000W

                            Max. PV Short Circuit Current

                            35A

                            Maximum PV Open Circuit Voltage

                            250V absolute maximum coldest conditions, 245V start-up and operating maximum

                            Efficiency

                            99%

                            Charge Algorithm

                            multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm

                            Data Communication Port

                            VE.Direct or Bluetooth

                            IP Rating

                            IP43 (electronic components), IP22 (connection area)

                            Dimensions

                            H185 x W250 x D95mm

                            Weight

                            3Kg

                            Warranty

                            5 Years


                            Product form

                            A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology,... Read more

                            £322.00 Exc. VAT
                            £386.40 Inc. VAT
