The SmartSolar MPPT RS solar charge controllers are Victron’s solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid connected battery systems.
Available in a 5.76kW and 11.52kW model, features include a wide 80-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve the safety and modernise the presentation in line with the latest suite of Victron products.
Ultra-fast Maximum Power Point Tracking (MPPT) Solar Charge Controller

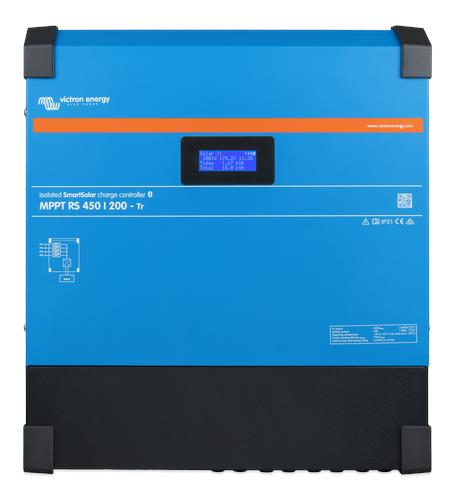

The MPPT RS SmartSolar is a 48V Solar charge controller with up to 450VDC PV input and either 100A, or 200A output. It is used in on-grid and off-grid solar applications where maximum battery charging power is required.
Setup and monitor with VictronConnect
The SmartSolar RS charge controller can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, historical data and trends.
Multiple independent MPPT tracking inputs
With multiple MPPT trackers, you can optimize your solar panel design for maximum performance for your specific location.
Daisy Chain Additional Units
The SmartSolar RS charge controller is equipped with VE.Can bus ports. This allows for communication with additional SmartSolar RS & VE.Can MPPT units. The additional units are simply “daisy chained” to each other with an RJ45 cable. When connected to each other, all individual charge controllers, will synchronise their charge stages. They can also send their data, via the same cable, for monitoring to a GX device (such as the Cerbo GX).
Isolated PV connections for additional safety
Full galvanic isolation between PV and battery connections provide additional overall system safety.
Wide MPPT voltage range
80 – 450 VDC PV operating range, with a 120VDC PV startup voltage.
Light weight, efficient and quiet
Thanks to high frequency technology and a new design this powerful charger weighs only 7.9 kg for the 100A model. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.
Display and Bluetooth
The display reads battery, and controller parameters. The parameters can be accessed with a smartphone or other Bluetooth enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.
PV Isolation resistance monitoring for peace of mind at higher voltages
The MPPT RS continuously monitors the PV array and can detect if there are faults that reduce the isolation of the panels to unsafe levels.
VE.Can and VE.Direct port
For connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Can allows for up to 25 units to be connected together in parallel and synchronize their charging.
Programmable Relay, temperature sensor, auxiliary, digital input and voltage sensor connections. The remote input can accept the Victron smallBMS, and other BMS with allow-to-charge signal
