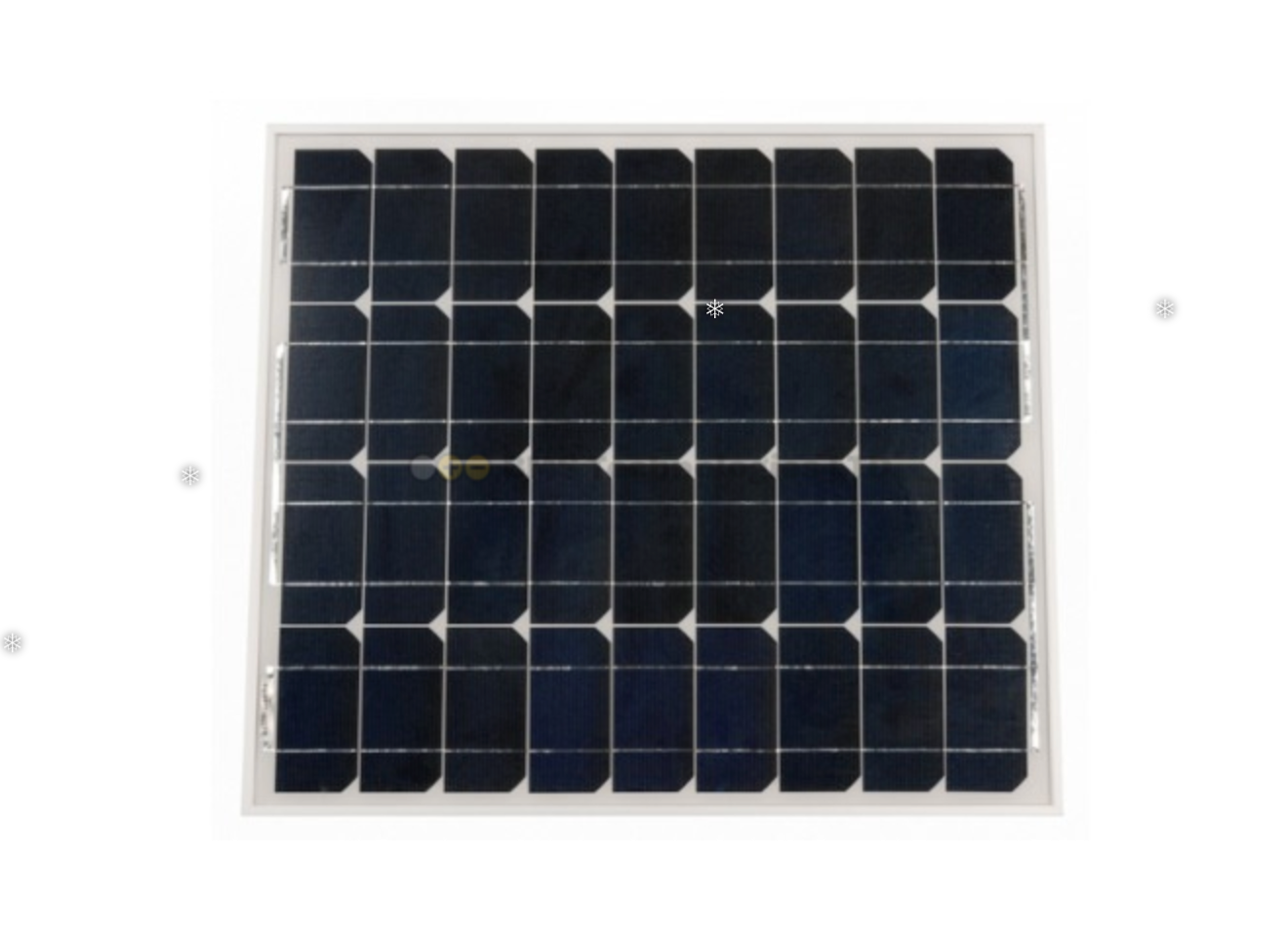

Victron Energy Solar Panel 20V 305W Mono series 4c – SPM043052003

Description

High stock levels available on all panels, please contact us via live chat for up-to-date stock before purchase, as stock levels are subject to change. Alternatively, you can email or call us.

  • Low voltage-temperature coefficient enhances high-temperature operation.
  • Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
  • 25-Year limited warranty on power output and performance.
  • 5-Year Limited warranty on materials and workmanship.
  • Sealed, waterproof, multifunctional junction box gives high level of safety.
  • High performance bypass diodes minimize the power drop caused by shade.
  • Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
  • A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
  • Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
  • Pre wired quick-connect system with PV-ST01 connectors.

 CLICK HERE FOR SPEC SHEETS

Brand

Victron Energy

Manufacturer Part Number

SPM043052003

GTIN

8719076058052

Voltage

20V

Nominal Power

305W

Cell Type

Monocrystalline

Number of Cells in Series

72

Maximum System Voltage

1000V

Dimensions

L1650 x W992 x D35mm

Weight

18.4Kg

Warranty

5 Years



Product form

High stock levels available on all panels, please contact us via live chat for up-to-date stock before purchase, as stock... Read more

£195.08 Exc. VAT
£234.10 Inc. VAT

  • Quality
  • Reliabilty
  • Trusted

Description

High stock levels available on all panels, please contact us via live chat for up-to-date stock before purchase, as stock levels are subject to change. Alternatively, you can email or call us.

  • Low voltage-temperature coefficient enhances high-temperature operation.
  • Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
  • 25-Year limited warranty on power output and performance.
  • 5-Year Limited warranty on materials and workmanship.
  • Sealed, waterproof, multifunctional junction box gives high level of safety.
  • High performance bypass diodes minimize the power drop caused by shade.
  • Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
  • A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
  • Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
  • Pre wired quick-connect system with PV-ST01 connectors.

 CLICK HERE FOR SPEC SHEETS

Brand

Victron Energy

Manufacturer Part Number

SPM043052003

GTIN

8719076058052

Voltage

20V

Nominal Power

305W

Cell Type

Monocrystalline

Number of Cells in Series

72

Maximum System Voltage

1000V

Dimensions

L1650 x W992 x D35mm

Weight

18.4Kg

Warranty

5 Years
