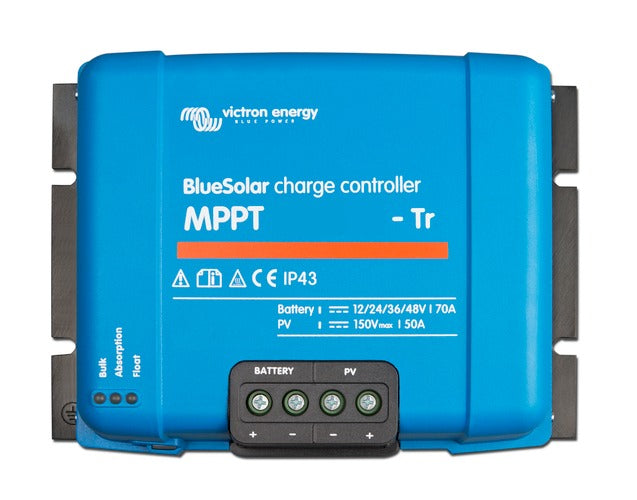

Victron Enery BlueSolar MPPT 250/100-Tr VE.Can – SCC125110441

Description

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.



Features

Ultra-fast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 99%.

Flexible charge algorithm

Fully programmable charge algorithm, and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature.

Optional external battery voltage, temperature and current sensing via Bluetooth

A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature (and current, in case of a BMV 712 or a SmartShunt) to one or more BlueSolar Charge Controllers. (VE.Direct Bluetooth Smart dongle needed)

VE.Can: the multiple controller solution

Up to 25 units can be synchronised with VE.Can

VE.Direct or VE.Can

For a wired data connection to a Color Control GX, other GX products, PC or other devices

Remote on-off

To connect for example to a VE.BUS BMS.

Programmable relay

Can be programmed to trip on an alarm, or other events.

Optional: SmartSolar pluggable LCD display

Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.


                             CLICK HERE FOR SPEC SHEET

                            Brand

                            Victron Energy

                            Manufacturer Part Number

                            SCC125110441

                            GTIN

                            8719076050926

                            Battery Voltage

                            12/24/48V Auto Select (36V: manual)

                            Rated Charge Current

                            100A

                            Nominal PV Power, 12V

                            1450W

                            Nominal PV Power, 24V

                            2900W

                            Max. PV Short Circuit Current

                            70A

                            Maximum PV Open Circuit Voltage

                            250V absolute maximum coldest conditions | 245V start-up and operating maximum

                            Efficiency

                            99%

                            Charge Algorithm

                            multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm

                            Data Communication Port

                            VE.Can

                            IP Rating

                            IP43 (electronic components), IP22 (connection area)

                            Dimensions

                            H216 x W295 x D103mm

                            Weight

                            4.5Kg

                            Warranty

                            5 Years


                            Product form

                            A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology,... Read more

                            £678.10 Exc. VAT
                            £813.72 Inc. VAT

                            • Quality
                            • Reliabilty
                            • Trusted

                            Description

                            A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.



                            Features

                            Ultra-fast Maximum Power Point Tracking (MPPT)

                            Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

                            Advanced Maximum Power Point Detection in case of partial shading conditions

                            If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

                            Outstanding conversion efficiency

                            No cooling fan. Maximum efficiency exceeds 99%.

                            Flexible charge algorithm

                            Fully programmable charge algorithm, and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).

                            Extensive electronic protection

                            Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

                            Internal temperature sensor

                            Compensates absorption and float charge voltage for temperature.

                            Optional external battery voltage, temperature and current sensing via Bluetooth

                            A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature (and current, in case of a BMV 712 or a SmartShunt) to one or more BlueSolar Charge Controllers. (VE.Direct Bluetooth Smart dongle needed)

                            VE.Can: the multiple controller solution

                            Up to 25 units can be synchronised with VE.Can

                            VE.Direct or VE.Can

                            For a wired data connection to a Color Control GX, other GX products, PC or other devices

                            Remote on-off

                            To connect for example to a VE.BUS BMS.

                            Programmable relay

                            Can be programmed to trip on an alarm, or other events.

                            Optional: SmartSolar pluggable LCD display

                            Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.


                                                       CLICK HERE FOR SPEC SHEET

                                                      Brand

                                                      Victron Energy

                                                      Manufacturer Part Number

                                                      SCC125110441

                                                      GTIN

                                                      8719076050926

                                                      Battery Voltage

                                                      12/24/48V Auto Select (36V: manual)

                                                      Rated Charge Current

                                                      100A

                                                      Nominal PV Power, 12V

                                                      1450W

                                                      Nominal PV Power, 24V

                                                      2900W

                                                      Max. PV Short Circuit Current

                                                      70A

                                                      Maximum PV Open Circuit Voltage

                                                      250V absolute maximum coldest conditions | 245V start-up and operating maximum

                                                      Efficiency

                                                      99%

                                                      Charge Algorithm

                                                      multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm

                                                      Data Communication Port

                                                      VE.Can

                                                      IP Rating

                                                      IP43 (electronic components), IP22 (connection area)

                                                      Dimensions

                                                      H216 x W295 x D103mm

                                                      Weight

                                                      4.5Kg

                                                      Warranty

                                                      5 Years
