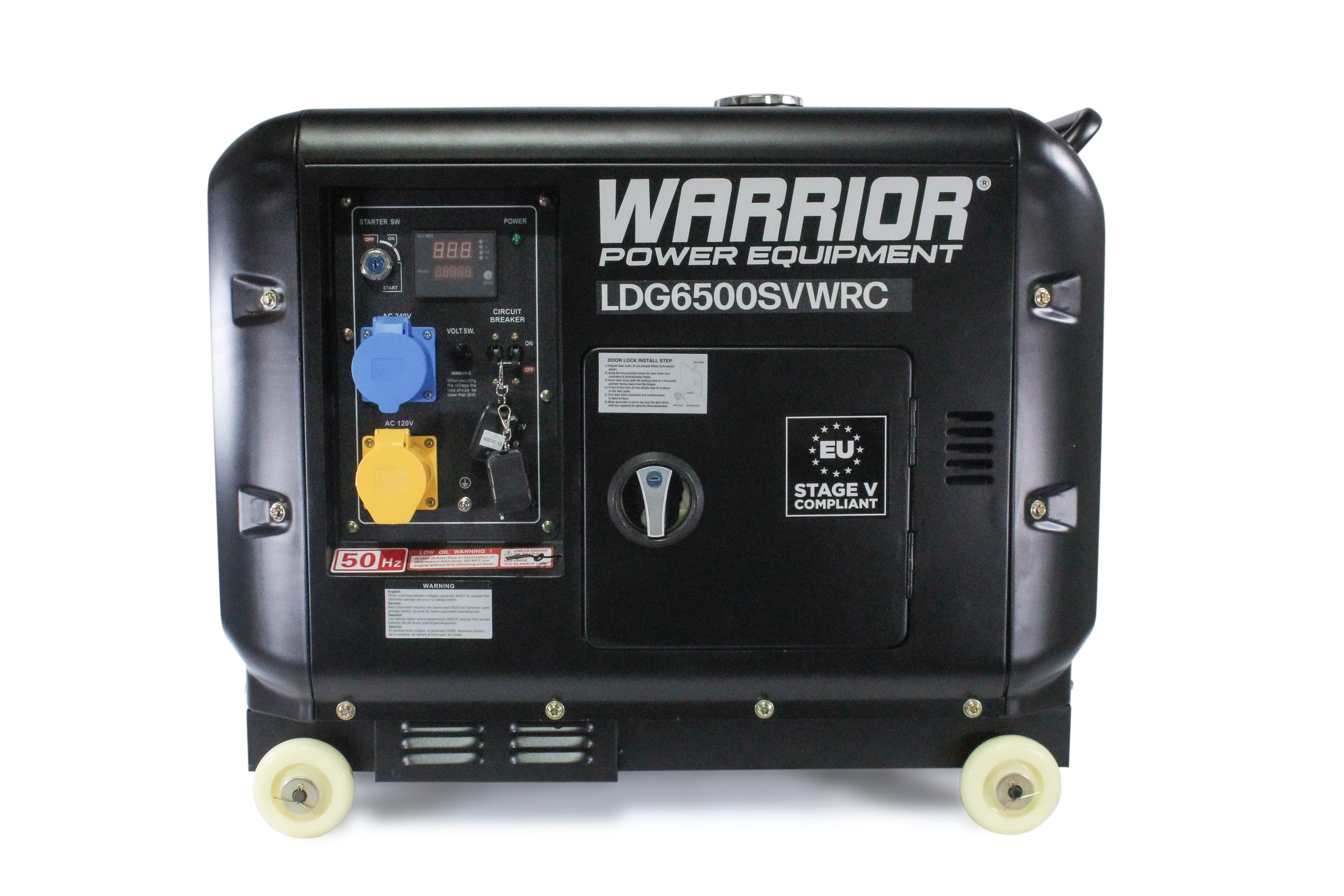

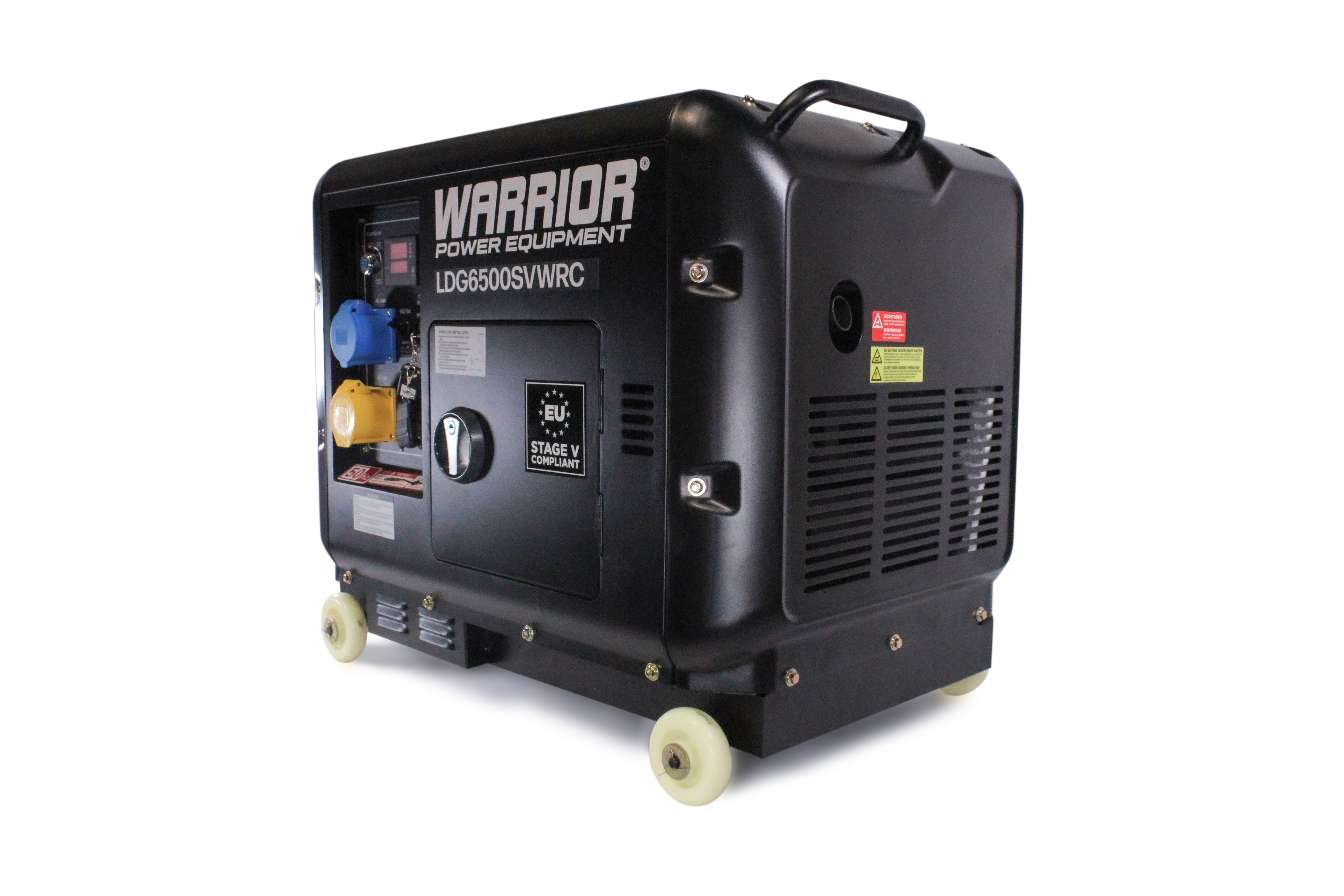

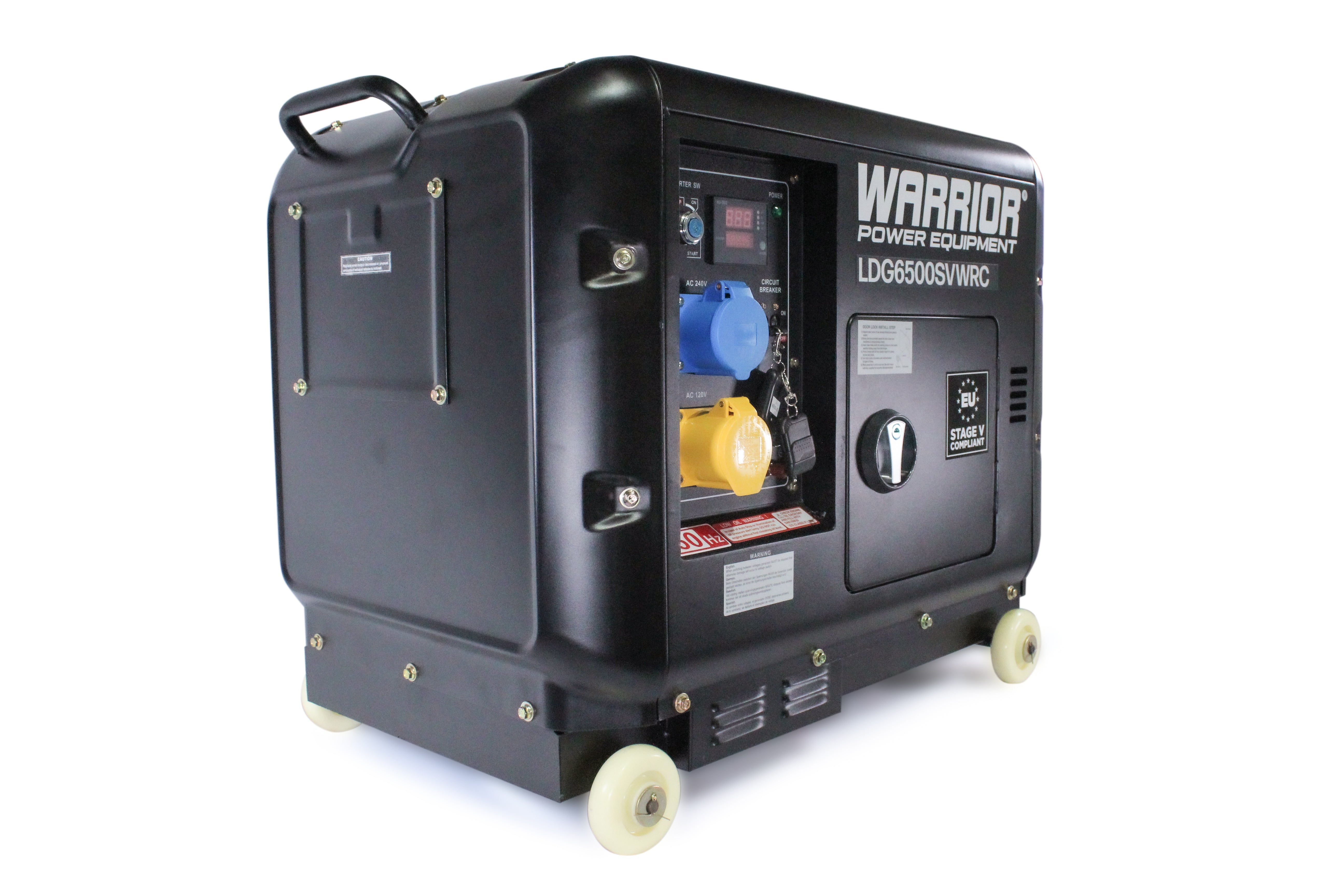

Warrior 5500 Watt Silent Diesel Single Phase Generator with Electric and Remote Start - LDG6500SVWRC

Description

DOWNLOAD SPEC SHEET HERE

  • Up to 12 hours run time at 50% load
  • 68 dBA at 7m

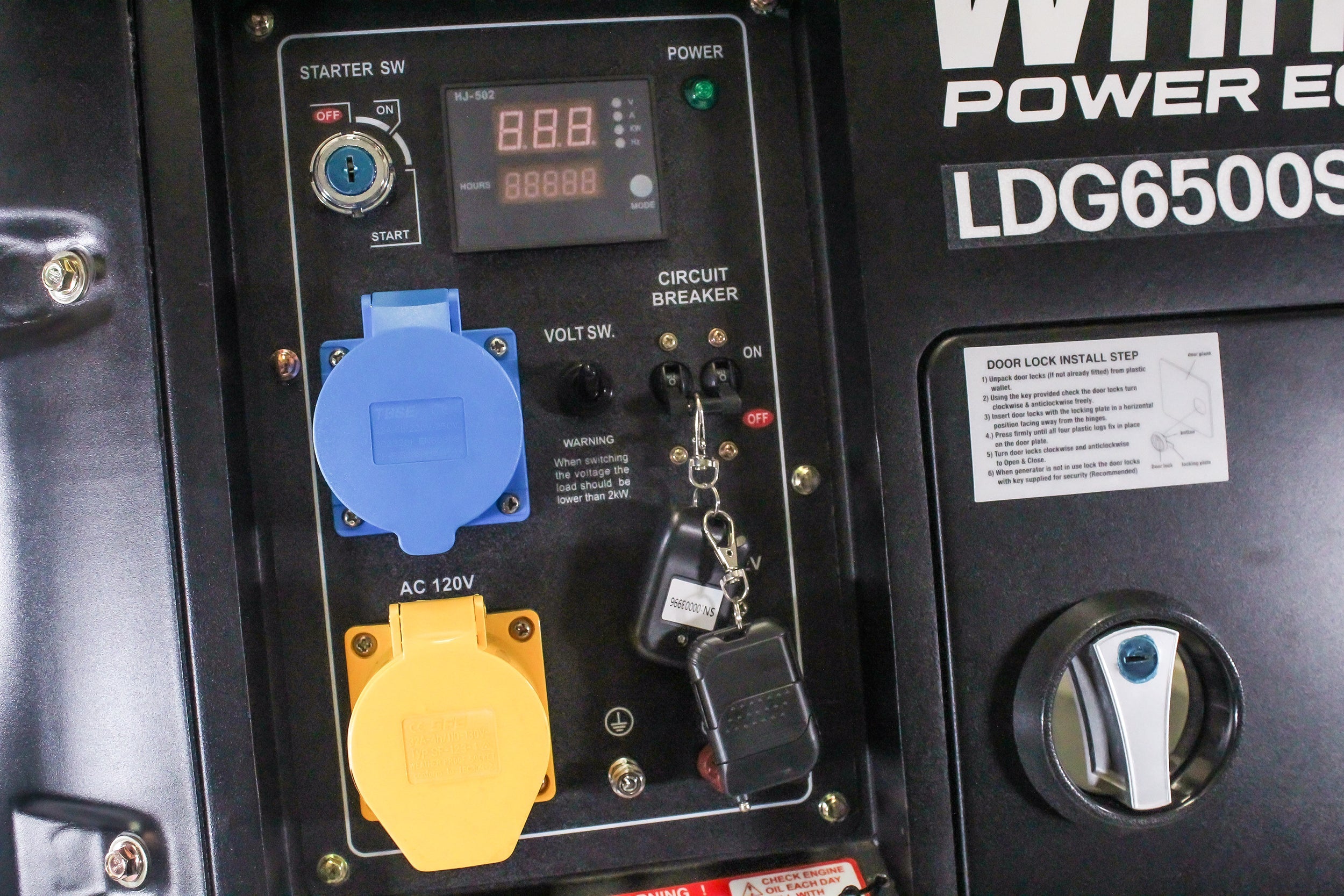

  • 3 in 1 Intelli Volt Meter

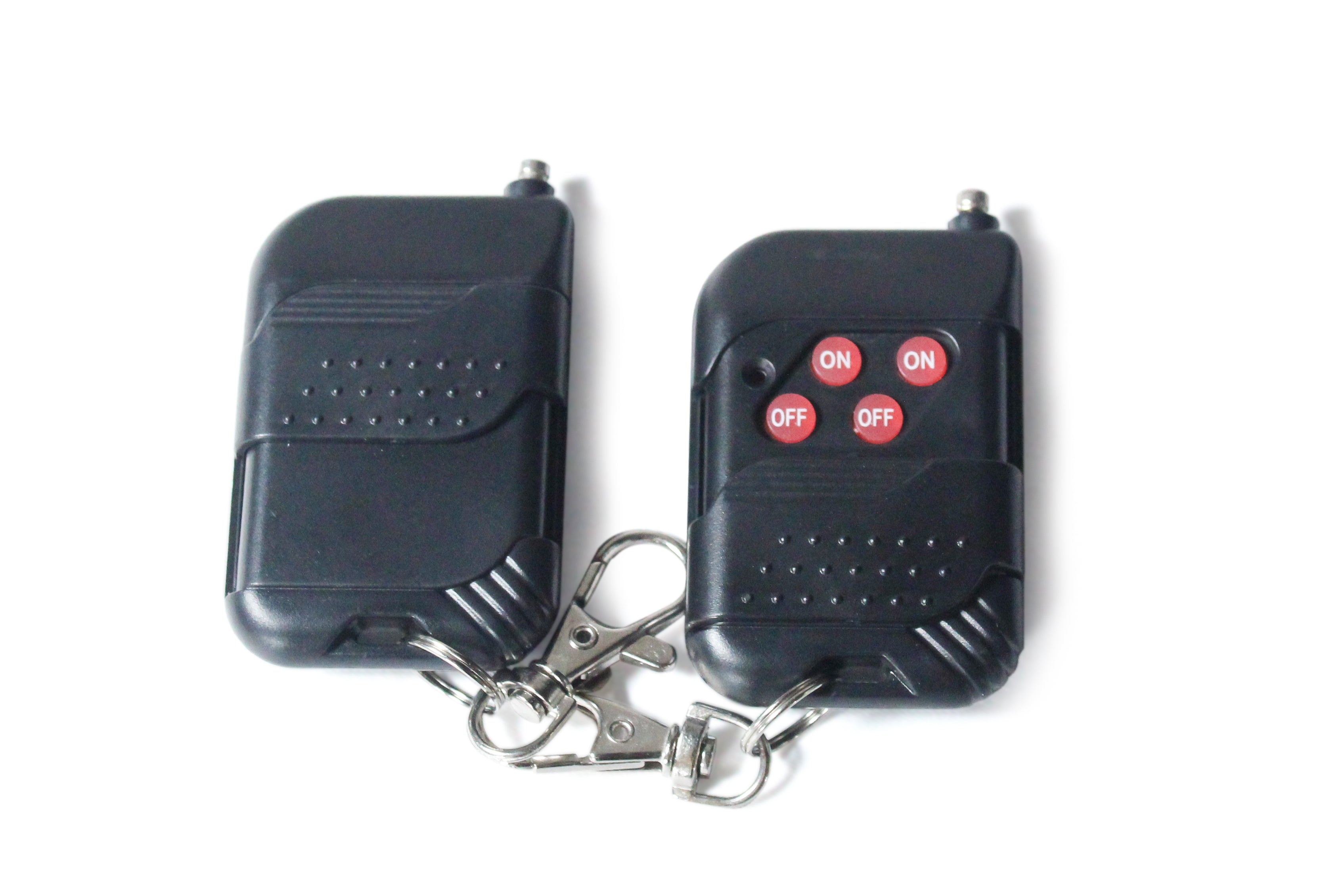

  • Wireless Remote Start
  • Wheels for easy portability

This new and improved Warrior model boasts increased power and a fully compliant EU5 standard engine, with a brushed copper alternator within that produces a steady motor speed.

It features a Automatic Voltage Regulator (AVR) control system to monitor the output and protect the unit against voltage fluctuations, providing a smoother sine wave.

Enclosed by a soundproof canopy, coated with a chip resistant matt finish, the durable heavy-duty industrial frame provides full protection and aids portability. This silent enclosure has the added benefit of a key start facility and smooth running is further enhanced by the addition of anti-vibration mountings.

A fully fuelled 16 litre tank could easily achieve up to 12 hours running at around 50% load, making this Warrior generator ideal for all sorts of applications such as domestic supply, construction, catering and industrial use with for example power tools & lighting units. As a standby generator it is the perfect product during power cuts and outages, and is even supplied with an Automatic Transfer Switch (ATS) Input Port compatible with our ATS Panel to automatically start up the Generator when loss of power is detected & stop it when the mains supply is restored.

Fitted with 12v battery charging outlet and with 415v Three Phase and 240v Single Phase output sockets as standard as well as ATS Input Port for ATS panel 190102000010.

All data supplied on this item is referring to balanced load, if using unbalanced loads you need to check data on equipment.

Features:

  • 415v Three Phase / 240v AC load

  • Up to 12 hours run time at 50% load

  • 68 dBA at 7m

  • 3 in 1 Intelli Volt Meter

  • Electric Key Start

  • Wheels for easy portability

  • ATS Input Port

Please note: When running single phase off a three phase generator you will only receive approx 30-35% of the full output power as your socket is only running off one of the three phases available.



KVA

6.25

Max Watts

5500

Rated Watts

5000

AC Load

1 x 120v 32Amp / 1 x 240V 32Amp

Phase

single

Power factor

1

RPM

3000

Engine

186 cc Single Cylinder Air Cooled

Fuel Capacity

16 Litres

Oil Capacity

1.1 Litres

Start Type

Electric Key Start/remote

Low Oil Shutoff

Automatic

Noise Level @ 7m

68 dBA

Dimensions L*W*H

(Fully Assembled)

88 x 59 x 73 cm

Weight

168 kg

Operation at 50% Load

12 Hours

Overload Protection

 Yes

Cold Start

 No

Parallel Connectivity

 No

Certification

CE,EC, EPA, EU Stage V

Warranty

2 Year Limited Warranty

Product form
