INVERTERS FOR SOLAR / BATTERY STORAGE

Features of the Phoenix Inverter 48/800 VE.Direct VE.Direct communication port The VE.Direct port can be connected to: A computer (VE.Direct to USB interface cable needed) Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed) Fully configurable: Low battery voltage alarm trip and reset levels Low battery voltage cut-off and restart levels Dynamic cut-off: load dependent cut-off level Output voltage 210 – 245V Frequency 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Monitoring: In- and output voltage, % load and alarms Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature. High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools. ECO mode When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on. Remote on/off A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector. DC connection with screw terminals No special tools needed for installation. Brand Victron Energy Manufacturer Part Number PIN481801400 gtin 8719076056898 Voltage 48V Cont. Output Power at 25ºC 800VA Peak Power 1500W Output AC Voltage 230V Efficiency 91% Protection Category IP21 Dimensions H105 x W216 x D305mm Weight 5.5Kg Warranty 5 Years Bluetooth Enabled No Plug Type UK Country of Manufacture China

Read more less

Features of the Phoenix 48/1600 Smart Bluetooth built-in: fully configurable with a tablet or smartphone Low battery voltage alarm Low battery voltage cut-off and restart levels Dynamic cut-off: load dependent cut-off level Output voltage: 210 – 245V Frequency: 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Alarm relay Monitoring: In- and output voltage, load and alarms VE.Direct communication port The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters. Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature. High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools. ECO mode When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on. Remote on/off A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). To transfer the load to another AC source: the automatic transfer switch For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch. Brand Victron Energy Manufacturer Part Number PIN482161000 GTIN 8719076057543 Voltage 48V Cont. Output Power at 25°C 1600VA Peak Power 3000W Output AC Voltage 230V Efficiency 94% Protection Category IP21 Dimensions H485 x W219 x D125mm Weight 12Kg Warranty 5 Years Bluetooth Enabled Yes Country of Manufacture China

Read more less

Features Extra start-up power A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances. Virtually unlimited power thanks to parallel and 3-phase operation capability Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.  To transfer the load to another AC source: the automatic transfer switch If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds). Computer interface All models have a RS-485 port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface (see under accessories). Together with our VEConfigure software, which can be downloaded free of charge from our website, all parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerized monitoring and control systems. Brand Victron Energy Manufacturer Part Number PIN243020000 Voltage 24 VA 3000 Peak Power (W) 6000 Max Efficiency 94% Programmable Relay Yes IP Rating IP21 Dimensions (Including Terminals) H362 x W258 x D218mm Weight (kg) 18 Warranty 5 Years

Read more less

The system has been designed for those who want to enjoy the comfort and freedom of a complete energy system without spending time on the installation of separate components and difficult technical procedures. Brand Victron Energy Manufacturer Part Number CEP121620000 Voltage 12 Transfer Switch (A) 16 Cont. Output Power at 25°C (VA) 1600 Peak Power (W) 3000 Max Efficiency 92% Zero Load Power (W) 8 Charge Current House Battery (A) 70 Charge Current Starter Battery (A) 4 Battery Temperature Sensor Yes Programmable Relay Yes Remote on-off Optional Protection Category IP21 Dimensions H510 x W214 x D110mm Weight (kg) 11.7 Warranty 5 Years Country of Manufacture China

Read more less

Features Two AC Outputs The main output has no break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery, like a water heater for example can be connected to this output (second output available on models rated at 3 kVA and more). Virtually unlimited power thanks to parallel operation Up to 6 Multis can operate in parallel to achieve higher power output. Six 24/5000/120 units, for example, will provide 25 kW / 30 kVA output power with 720 Amps charging capacity. Three phase capability In addition to parallel connection, three units of the same model can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a huge 75 kW / 90 kVA inverter and more than 2000 Amps charging capacity. PowerControl – Dealing with limited generator, shore side or grid power The MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (nearly 10 A per 5 kVA Multi at 230 VAC). With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded. PowerAssist – Boosting the capacity of shore or generator power This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery. Solar energy: AC power available even during a grid failure The MultiPlus can be used in off grid as well as grid connected PV and other alternative energy systems. Loss of mains detection software is available. System configuring In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure. Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.   Brand Victron Energy Manufacturer Part Number CMP122200000 Voltage 12 Transfer Switch (A) 30 Cont. Output Power at 25°C (VA) 2000 Peak Power (W) 3500 Max Efficiency 93% Zero Load Power (W) 9 Charge Current House Battery (A) 80 Charge Current Starter Battery (A) 4 Battery Temperature Sensor Yes Programmable Relay Yes Remote on-off Yes Protection Category IP21 Dimensions H520 x W255 x D125mm Weight (kg) 12 Warranty 5 Years Country of Manufacture India

Read more less

Features VE.Direct communication port The VE.Direct port can be connected to: A computer (VE.Direct to USB interface cable needed) Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed) Fully configurable: Low battery voltage alarm trip and reset levels Low battery voltage cut-off and restart levels Dynamic cut-off: load dependent cut-off level Output voltage 210 – 245V Frequency 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Monitoring: In- and output voltage, % load and alarms Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature. High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools. ECO mode When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on. Remote on/off A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector. DC connection with screw terminals No special tools needed for installation. Brand Victron Energy Manufacturer Part Number PIN485010400 Voltage 48 VA 500 Peak Power (W) 900 Max Efficiency 91% Plug Type UK IP Rating IP21 Dimensions (Including Terminals) H86 x W172 x D275mm Weight (kg) 3.9 Warranty 5 Years

Read more less

Features Bluetooth built-in: fully configurable with a tablet or smartphone Low battery voltage alarm Low battery voltage cut-off and restart levels Dynamic cut-off: load dependent cut-off level Output voltage: 210 – 245V Frequency: 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Alarm relay Monitoring: In- and output voltage, load and alarms VE.Direct communication port The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters. Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature. High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools. ECO mode When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on. Remote on/off A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). To transfer the load to another AC source: the automatic transfer switch For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch. Brand Victron Energy Manufacturer Part Number PIN482500000 GTIN 8719076047940 Voltage 48V Cont. output power at 25ºC 5000VA Peak power 10000W Parallel and 3-phase operation No Programmable Relay Yes Max. efficiency 96% Battery-Connection M8 Bolts VE.Direct Communication Port For remote monitoring and system integration Dimensions H555 x W295 x D160mm Weight 28Kg Warranty 5 Years

Read more less

The inverter is equipped with a display to read out battery, inverter, and solar charger details. These parameters can also be read out via Bluetooth by the VictronConnect app. In addition to this, the inverter has a VE.Can Port for connection to a GX device for system monitoring; and VE.Direct port for connection to a GlobalLink 520.   Features Off-Grid solar inverter The Inverter RS Smart Solar 48/6000 is a 48V 6kVA Inverter with 450VDC 4kWp PV input. It is used in off-grid solar applications where AC power is required. Combination of an inverter, bi-directional DC-DC converter and MPPT The inverter produces a perfect sine wave, able to supply high powered appliances. It is supplied by a bi-directional DC-DC converter, that can either charge the battery when excess solar power is available or convert from the battery when it is needed. Wide MPPT voltage range 80 – 450VDC, with a 120VDC PV startup voltage. Light weight, efficient and quiet Thanks to high frequency technology and a new design this powerful inverter weighs only 11kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation. Display and Bluetooth The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect. VE.Can and VE.Direct port For connection to a GX device for system monitoring, data logging, and remote firmware updates. Built in PV isolator Both parallel PV strings connected to the MC4 plugs can be safely isolated with the large built-in switch on the bottom of the unit. I/O Connections Programmable Relay, temperature sensor and voltage sensor connections. The remote input can also be configured to accept the Victron smallBMS. Brand Victron Energy Manufacturer Part Number PIN482601000 GTIN 8719076048176 DC Input voltage range 38-64V Continuous Output Power at 25°C Increases linearly from 4800W at 46VDC to 5300W at 52VDC Continuous output power at 40°C 4500W Peak power 9kW for 3 seconds Zero load power 20W Maximum DC voltage 450V Nominal DC voltage 300V Start-up voltage 120V MPPT operating voltage range 80-450V Charge voltage absorption (V DC) 57.6V Charge voltage float (V DC) 55.2V Maximum charge current 100A Battery Temperature Sensor Yes Parallel and 3-phase operation No Programmable Relay Yes Data Communications Ports VE.Direct port and VE.Can port Remote on-off Yes Protection Category IP22 Battery-Connection M8 Bolts Dimensions H425 x W440 x D125mm Weight 11Kg Warranty 5 Years

Read more less

Features of the Quattro 48/5000-70-100 Two AC Inputs & two AC Outputs The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.   Unique PowerAssist feature The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.   Virtually unlimited power thanks to parallel operation Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.   Remote Monitoring and Control When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more…   Want to have perfect control over your system from wherever you are whilst using your Quattro 48/5000, why not have a look at the Cerbo GX. Simply connect through the Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, a MFD or the VictronConnect App thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.   Watch the new video that explains all there is to know about installing the new Cerbo GX & GX Touch 50   The MK3-USB allows the Quattro to connect to a computer for configuration and firmware updates.

Read more less

Features All-in-one solar power solution The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.   The solar charge controller: Blue Solar MPPT 100/50 Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.   The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40 The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.   AC distribution The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.   PowerAssist Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.   Unique solar application software Several software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications.   Brand Victron Energy Manufacturer Part Number CEP121620000 GTIN 8719076021599 Voltage 12V Transfer Switch 16A Continuous Output Power at 25°C 1600VA/1300W Peak power 3000W Charger Current House Battery 70A Battery Temperature Sensor Yes Programmable Relay Yes Ingress Protection IP22 Battery-Connection Battery cables of 1.5 meter Dimensions (Including Terminals) H745 x W214 x D110mm Weight 15Kg Warranty 5 Years Country of Manufacture China

Read more less

It covers all DC terminals, preventing accidental or inquisitive contact with terminal screws. Brand Victron Energy Manufacturer Part Number SCC950300210 Warranty 5 Years

Read more less

Brand Victron Energy Manufacturer Part Number SCA000100100 Warranty 5 Years

Read more less

Brand Victron Energy Manufacturer Part Number SCA500100000 Warranty 5 Years

Read more less

Brand Victron Energy Manufacturer Part Number SCA500200000 Warranty 5 Years

Read more less

Brand Victron Energy Manufacturer Part Number CIP132125010 GTIN 8719076054658 Appr. Voltage Drop 60mV Cold Resistance 0.3 Warranty 5 Years

Read more less

Brand Victron Energy Manufacturer Part Number CIP133060010 Warranty 5 Years Appr. Voltage Drop 70 mV Cold Resistance 0.9

Read more less

Features Perfect chargers for any type of battery Charge voltage can be precisely adjusted to suit any sealed or unsealed battery system. In particular, sealed maintenance free batteries must be charged correctly in order to ensure a long service life. Overvoltage will result in excessive gassing and venting of a sealed battery. The battery will dry out and fail. Suitable for AC and DC supply (AC-DC and DC-DC operation) Except for the 3-phase input models, the chargers also accept a DC supply. Controlled charging Every TG Charger has a microprocessor, which accurately controls the charging in three steps. The charging process takes place in accordance with the IUoUo characteristic and charges more rapidly than other processes. Use of TG Chargers as a power supply As a result of the perfectly stabilized output voltage, a TG Charger can be used as a power supply if batteries or large buffer capacitors are not available. Two outputs to charge 2 battery banks (24V models only) The TG Chargers feature 2 isolated outputs. The second output, limited to approximately 4A and with a slightly lower output voltage, is intended to top up a starter battery. To increase battery life: temperature compensation Every Skylla TG Charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries which otherwise might be overcharged and dry out due to venting. Battery voltage sense In order to compensate for voltage loss due to cable resistance, TG Chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage. Brand Victron Energy Manufacturer Part Number SDTG2400301 Voltage 24 Charger Current House Battery 30A Charger Current Starter Battery 4A Recommended Battery Capacity 150 – 500Ah Battery Connection M8 Studs Outputs 1+1 Temperature Sensor Yes Can Be Used As Power Supply Yes IP Rating IP21 Dimensions H365 x W250 x D147mm Weight (kg) 5.5 Warranty 5 Years

Read more less

Brand Victron Energy Manufacturer Part Number SCC010010050 GTIN 8719076046189 Battery Voltage 12/24 V automatic system voltage detection Rated Charge Current 10A Maximum Solar Voltage 28V / 55V Load Output Manual control + low voltage disconnect + timer Grounding Common positive IP Rating IP20 Dimensions H96 x W169 x D36mm Weight 0.15Kg Warranty 5 Years

Read more less

Features Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30 % compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers. Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP. Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98 %. Flexible charge algorithm Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details). Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor and optional external battery voltage, temperature and current sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature (and current, in case of a BMV-712 or a SmartShunt) to one or more BlueSolar Charge Controllers. (VE.Direct Bluetooth Smart dongle needed) Real-time data display options Color Control GX or other GX devices: see the Venus documents on our website. A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed. Brand Victron Energy Manufacturer Part Number SCC010070300 GTIN 8719076025528 Battery Voltage 12/24/48V Auto Select (software tool needed to select 36V) Rated Charge Current 70A Nominal PV Power, 12V 1000W Nominal PV Power, 24V 2000W Max. PV Short Circuit Current 50A Maximum PV Open Circuit Voltage 150V absolute maximum coldest conditions 145V start-up and operating maximum Efficiency 98% Charge Algorithm Multi-stage adaptive Data Communication Port VE.Direct IP Rating IP43 (electronic components), IP22 (connection area) Dimensions H215 x W250 x D95mm Weight 3Kg Warranty 5 Years

Read more less

 Part No: X3-8000T Storage Systems - Hybrid Inverter X3-HYBRID-5.0T / X3-HYBRID-6.0T / X3-HYBRID-8.0T / X3-HYBRID-10.0T X3-Hybrid HV Three Phase   The new X3-Hybrid High-Voltage is the latest incarnation in battery storage inverters from SolaX. The X3 ranges in size from 5 to 10kW and has the ability to install multiple inverters in parallel . It’s equipped with a built-in EPS (Emergency Power Supply), has multiple communication options (additional Wifi or LAN sticks can be purchased separately) and can be controlled remotely using the SolaX monitoring app, X-Cloud.   Additional features: Unbalanced phase load supported Up to 25.2kWh storage per inverter Up to 10kW Max charge/discharge G100 Export Limitation compliant Suitable for grid trading applications Charging from grid possible Fanless design Please note the minimum number of batteries per X3 Hybrid inverter is 2 and maximum of 4. Please note batteries need to be the same capacity, it’s not possible to connect both 4.5kWh and 6.3kWh to one inverter.   Please note this inverter is not EN50438 IE certified for Ireland.  Supplier Part No: X3-Hybrid 8.0E Weight: 48 kg Rated Power: 8,000 W Min PPT Voltage: 180 V Max PPT Voltage: 950 V DC Startup Voltage: 180 V DC Shutdown Voltage: 180 V Max Input Voltage: 1,000 V Max DC Power: 12,000 W Max AC Power (5 Minutes): 8,000 W Surge AC Power (1 Second): 8,800 W Max DC Current: 24 A Max DC Inputs: 3 Has DC Fuses: 0 Connector: SUNCLIX   Included Connectors: 2 Euro Efficiency: 97 % Transformer: None MPPT Quantity : 2 Has Integrated DC Switch: No Warranty: 5 years Data Sheet Solax X3 Hybrid EN

Read more less

Max. efficiency 98.7% String current up to 16A Wide voltage range and low startup voltage AFCI protection, proactively reduces fire risk Supports export power control Supports RS485, WiFi, GPRS Scan to register on SolisCloud, supports remote upgrade and control Automatic voltage stabilization technology in weak gridconditions Compact design, simple installation and maintenance Supports high power modules for lower installation costs > 150% DC/AC ratio IP66 Application      Commercial Manufacturer       Solis Phases       3 Phase Power Rating        kW10 Inverter Type       String Inverter Built in DC       Yes No. of MPPT       2 Built in Communication       Optional Commodity Code      85044086 Dimensions (mm) (H x W x D)     563 x 310 x 219

Read more less

This is the 4th generation of the SolaX Hybrid range, retaining all the key features of the 3rd generation while making some welcome improvements. The X-Hybrid is can also store surplus energy in batteries for later use. It is important to understand that this is a hybrid solar PV inverter and battery storage controller. This means it needs to be sized just like a regular inverter would be and, if it is being retrofitted, will replace the existing inverter. AC attributes Max power: 12000W Max current: 19.3A Number of phases: 3 DC attributes Max power 18000W Max Isc current 20A Max voltage 1000V Start up voltage 200V System Max efficiency 98% IP rating IP65 Weight 30kg Dimensions 503*503*199mm Key features In-built EPS changeover switch Supports up to 150% oversizing Can work at full capacity down to -35C 30A Charge/discharge capability On-grid and off-grid use Includes WiFi dongle

Read more less

Part No: X3-HYBRID-G4-15.0-V2 Storage Systems - Hybrid Inverter SolaX's X-Hybrid three-phase inverter is the most updated version of their hybrid inverters range. This adaptable and expandable device caters to residential and commercial purposes, with the possibility to incorporate several inverters in parallel allowing for scalable battery storage used in commercial settings. The inverter also comes with a feature called EPS (Emergency Power Supply), which utilizes extra changeover devices. Multiple communication options are available, and the device can be controlled remotely. Some of its significant features are maximum efficiency of 98%, dual MPTT, remote monitoring, an IP65 rating, and a 10-year warranty. Key features: In-built EPS changeover switch Supports up to 150% over-sizing 30A Charge/discharge capability On-grid and off-grid use Includes WiFi dongle Looking to expand your system capacity? See Solax EPS Parallel Box options  – Connect up 6 hybrid inverters with a maximum of 60kW – Connect up 10 hybrid inverters with a maximum of 150kW Wi-Fi is now included with Solax X3-Hybrid-G4 V2 product so no need to purchase additional Wi-Fi equipment Supplier Part No: X3-Hybrid 15.0-D G4 V2 with WiFi Weight: 30 kg Rated Power: 15,000 W Min PPT Voltage: 180 V Max PPT Voltage: 950 V DC Startup Voltage: 200 V DC Shutdown Voltage: 200 V Max Input Voltage: 950 V Max DC Power: 18,000 W Max AC Power (5 Minutes): 15,001 W Surge AC Power (1 Second): 15,002 W Max DC Current: 26 A Max DC Inputs: 2 Has DC Fuses: 0 Connector: SUNCLIX   Included Connectors: 2 Euro Efficiency: 97 % Transformer: None MPPT Quantity : 2 Has Integrated DC Switch: No Warranty: 5 years

Read more less

Features Two AC Outputs The main output has no break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery, like a water heater for example can be connected to this output (second output available on models rated at 3 kVA and more). Virtually unlimited power thanks to parallel operation Up to 6 Multis can operate in parallel to achieve higher power output. Six 24/5000/120 units, for example, will provide 25 kW / 30 kVA output power with 720 Amps charging capacity. Three phase capability In addition to parallel connection, three units of the same model can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a huge 75 kW / 90 kVA inverter and more than 2000 Amps charging capacity. PowerControl – Dealing with limited generator, shore side or grid power The MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (nearly 10 A per 5 kVA Multi at 230 VAC). With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded. PowerAssist – Boosting the capacity of shore or generator power This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery. Solar energy: AC power available even during a grid failure The MultiPlus can be used in off grid as well as grid connected PV and other alternative energy systems. Loss of mains detection software is available. System configuring In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure. Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software. Brand Victron Energy Manufacturer Part Number PMP485021010 Voltage 48 Transfer Switch (A) 100 Cont. Output Power at 25°C (VA) 5000 Peak Power (W) 10000 Max Efficiency 95% Zero Load Power (W) 35 Charge Current House Battery (A) 70 Charge Current Starter Battery (A) 4 (12 V and 24 V models only) Battery Temperature Sensor Yes Programmable Relay Yes Remote on-off Yes Protection Category IP21 Dimensions H444 x W328 x D240mm Weight (kg) 30 Warranty 5 Years Country of Manufacture India

Read more less

Features Bluetooth inside With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance. Download the Victron Bluetooth app Use a smartphone or other Bluetooth enabled device to – customize settings, – monitor all important data on single screen, – view historical data, and to – update the software when new features become available. Easy to install All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed. Also included are a separate front bezel for a square or round display appearance, a securing ring for rear mounting and screws for front mounting. Midpoint voltage monitoring One bad cell or one bad battery can destroy a large, expensive battery bank. When batteries are connected in series, a timely warning can be generated by measuring the midpoint voltage. Please see the BMV manual, section 5.2, for more information. We recommend the Battery Balancer (BMS012201000) to maximize service life of series-connected lead-acid batteries. Very low current draw from the battery Current consumption: 0,7Ah per month (1mA) @12V and 0,6Ah per month (0,8mA) @ 24V Especially Li-ion batteries have virtually no capacity left when discharged until low voltage shutdown. After shutdown due to low cell voltage, the capacity reserve of a Li-ion battery is approximately 1Ah per 100Ah battery capacity. The battery will be damaged if the remaining capacity reserve is drawn from the battery. A residual current of 10mA for example may damage a 200Ah battery if the system is left in discharged state during more than 8 days. Bi-stable alarm relay Prevents increased current draw in case of an alarm. Brand Victron Energy Manufacturer Part Number BAM030712000R Supply Voltage Range 6.5-70 VDC Battery Capacity (Ah) 1-9999 Temperature Sensor Optional VE.Direct Communication Port Yes Protection Category IP55 Front Bezel 69 x 69mm Body Diameter & Depth 52 x 31mm Warranty 5 Years Country of Manufacture Malaysia

Read more less

Features Unique PowerAssist feature The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery. Virtually unlimited power thanks to parallel operation Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities. Remote Monitoring and Control Monitor and control your Quattro and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Quattro to setting a Geofence for hire vehicles and more… Split phase and three phase capability Two units can be configured for split phase, and three units can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected to provide 144kW / 180kVA inverter power and more than 2500A charging capacity. For more detail please enter parallel in the search box on our website. Solar energy: AC power available even during a grid failure The Quattro can be used in off grid as well as grid connected PV and other alternative energy systems. Loss of mains detection software is available. System configuring In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure. Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software. Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).   Brand Victron Energy Manufacturer Part Number QUA125020000 Voltage 12 Transfer Switch (A) Yes Cont. Output Power at 25°C (VA) 5000 Peak Power (W) 10000 Max Efficiency 94% Zero Load Power (W) 30 Charge Current House Battery (A) 220 Charge Current Starter Battery (A) 4 (12V and 24V models only) Battery Temperature Sensor Yes Programmable Relay 3x Remote on-off Yes Protection Category IP21 Dimensions H470 x W350 x D280mm Weight (kg) 34 Warranty 5 Years Country of Manufacture India

Read more less

Features Control Your Charger Remotely The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.  Daisy Chain Additional Units The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply “daisy chained” to each other with a single RJ45 cable between the individual units. When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.  Remote Monitoring and Control If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s). For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520. Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points (MPP) may be present on the powervoltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP. Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%. Flexible charge algorithm Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details). Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers. Internal temperature sensor and optional external battery voltage, temperature and current sensing via Bluetooth A Smart Battery Sense, a BMV-712 Smart Battery Monitor or a SmartShunt can be used to communicate battery voltage and temperature (and current, in case of a BMV 712 or a SmartShunt) to one or more SmartSolar Charge Controllers. VE.Direct or VE.Can For a wired data connection to a Color Control GX, other GX products, PC or other devices Fully discharged battery recovery function Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function. VE.Can: the multiple controller solution Up to 25 units can be synchronised with VE.Can, and up to 10 units with Bluetooth Remote on-off To connect for example to a VE.BUS BMS. Programmable relay Can be programmed to trip on an alarm, or other events. Optional: SmartSolar pluggable LCD display Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display. Brand Victron Energy Manufacturer Part Number SCC125085511 Battery Voltage 12 / 24 / 48V Auto Select (36V: manual) Rated Charge Current 85A Nominal PV Power, 12V 1200W Nominal PV Power, 24V 2400W Max. PV Short Circuit Current 70A (max 30A per MC4 conn.) Maximum PV Open Circuit Voltage 250V absolute maximum coldest conditions, 245V start-up and operating maximum Efficiency 99% Charge Algorithm multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm Data Communication Port VE.Can, VE.Direct and Bluetooth IP Rating IP43 (electronic components), IP22 (connection area) Dimensions H216 x W295 x D103mm Weight 4.5Kg Warranty 5 Years

Read more less

Brand Victron Energy Manufacturer Part Number SCA000500100 Warranty 5 Years

Read more less

  Brand Victron Energy Manufacturer Part Number CIP136200010 Warranty 5 Years Appr. Voltage Drop 80 mV Cold Resistance 0.25

Read more less

Features Perfect chargers for any type of battery Charge voltage can be precisely adjusted to suit any sealed or unsealed battery system. In particular, sealed maintenance free batteries must be charged correctly in order to ensure a long service life. Overvoltage will result in excessive gassing and venting of a sealed battery. The battery will dry out and fail. Suitable for AC and DC supply (AC-DC and DC-DC operation) Except for the 3-phase input models, the chargers also accept a DC supply. Controlled charging Every TG Charger has a microprocessor, which accurately controls the charging in three steps. The charging process takes place in accordance with the IUoUo characteristic and charges more rapidly than other processes. Use of TG Chargers as a power supply As a result of the perfectly stabilized output voltage, a TG Charger can be used as a power supply if batteries or large buffer capacitors are not available. Two outputs to charge 2 battery banks (24V models only) The TG Chargers feature 2 isolated outputs. The second output, limited to approximately 4A and with a slightly lower output voltage, is intended to top up a starter battery. To increase battery life: temperature compensation Every Skylla TG Charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries which otherwise might be overcharged and dry out due to venting. Battery voltage sense In order to compensate for voltage loss due to cable resistance, TG Chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage. Brand Victron Energy Manufacturer Part Number SDTG2400501 Voltage 24 Charger Current House Battery 50A Charger Current Starter Battery 4A Recommended Battery Capacity 150 – 500Ah Battery Connection M8 Studs Outputs 1+1 Temperature Sensor Yes Can Be Used As Power Supply Yes IP Rating IP21 Dimensions H365 x W250 x D147mm Weight (kg) 5.5 Warranty 5 Years Country of Manufacture Malaysia

Read more less

  The load output of an MPPT 75/15 or MPPT 100/15, for example, can be used to control an inverter. Some inverters will switch on when the remote control input is pulled high. The remote control input of other inverters must be pulled down to switch on. Pull down to switch on is needed for the Victron inverters model Phoenix 12/180, 24/180, 12/350 and 24/350. These inverters should be interfaced to the load output of the MPPT 75/15 or MPPT 100/15 with the inverting remote on-off cable. All Phoenix Inverters rated at 3kVA and more and all Multi C’s, Multi’s and Quattro’s also require active pull down to switch on, and the inverting remote on-off cable can be used to interface between the remote on-off terminal and a source signal that turns high when switch on is required. Brand Victron Energy Manufacturer Part Number ASS030550120 Warranty 5 Years

Read more less

Liquid crystal display For status monitoring and set-up Day/night timing of the load output This option allows for a pre-set ON-time after dusk. Programmable battery charge algorithm Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only) Two 5 Volt USB outputs Maximum current (both outputs combined): 2A Brand Victron Energy Manufacturer Part Number SCC010030050 GTIN 8719076046226 Battery Voltage 12/24 V automatic system voltage detection Rated Charge Current 30A Maximum Solar Voltage 28V / 55V Load Output Manual control + low voltage disconnect + timer Grounding Common positive IP Rating IP20 Dimensions H101 x W184 x D47mm Weight 0.3Kg Warranty 5 Years

Read more less

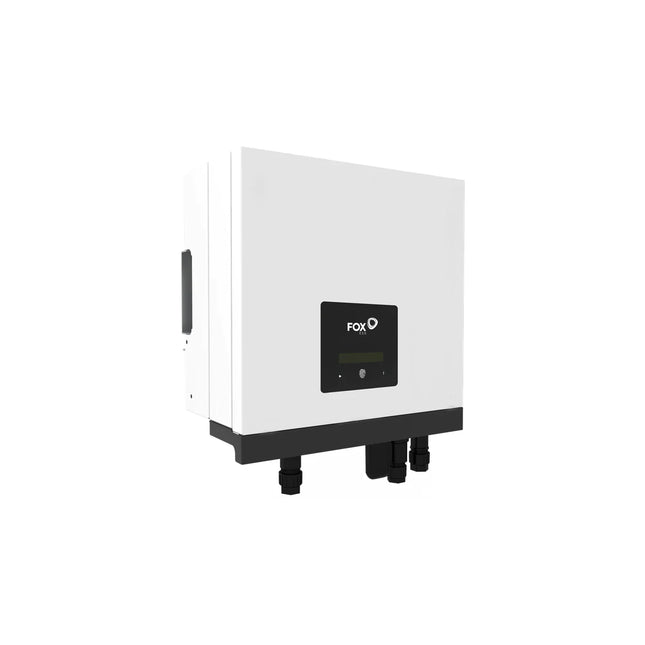

The Fox system is easy to install and will save you time spent on installation. Remote monitoring is also avalible via your smartphone or web portal. Uses high voltage batteries  IP65 rated - suitable for outdoor installations Remote monitoring via web portal or smartphone Easy to expand battery capacity Dual MPPT - ensure optimal solar production High round-trip efficiency of 97% CT Clamps, meter and WiFi stick are included in the box Please Note: When installing batteries side-by-side and not stacked one on top of the other, we recommend using    Weight: 26.7 kg Rated Power: 3,000 W Min PPT Voltage: 80 V Max PPT Voltage: 550 V DC Startup Voltage: 75 V DC Shutdown Voltage: 75 V Max Input Voltage: 600 V Max DC Power: 4,680 W Max AC Power (5 Minutes): 5,000 W Surge AC Power (1 Second): 6,000 W Max DC Current: 27 A Max DC Inputs: 2 Has DC Fuses: 0 Connector: MC4   Included Connectors: 4 Euro Efficiency: 97 % Transformer: None MPPT Quantity : 2 Has Integrated DC Switch: Yes Warranty: 5 years

Read more less

  Solis Mini Series Inverter Leading Features:• Max. efficiency 97.3%• Compact and lightweight• String current up to 14A• Super high frequency switching technology• Wide voltage range and low startup voltage• Precise MPPT algorithm• Intergrated Export Power Manager (EPM)• Integrated AFCI (DC arc-fault circuit protection)• Friendly and adaptable connection to the grid Manufacturer           Solis Phases             1 Phase Power Rating           kW2 Inverter Type             String Inverter Built in DC              Yes No. of MPPT            1 Built in Communication              Optional Commodity Code            85044085 Dimensions (mm) (H x W x D)373 x 310 x 160 Designed by world leading research and development team made by professors and specialists from 8 countries, Solis inverters are praised by clients and customs all over the world due to the high quality and reliability with the feature of ultra wide input voltage, precise MPPT algorithm, and Max. efficiency over 97%, which made Ginlong brand one of the most performance-cost inverters in the world.

Read more less

 Part No: X1-FIT-G4-5.0 Storage Systems - Charger-Inverter X1 RetroFit AC Charger Upgrade a PV system with the X1 RetroFit AC Coupled Inverter Charger from SolaX. Compatible with any brand (single phase) inverter, the X1 retro-fit has a maximum efficiency of up to 97%, is rated for indoor or outdoor use and can be remotely monitored via the XCloud. Additional features: High voltage battery support means thinner cables are required 6kW Max charge/discharge Wifi or LAN stick available separately Suitable for grid trading applications with less than 0.5s response time Charging from grid possible Natural Cooling, quiet and low maintenance Please note the minimum number of Solax batteries per X1 AC inverter is 1 and maximum of 3. Please note batteries need to be the same capacity, its not possible to connect both 4.5kWh and 6.3kWh to one inverter. UK only: This inverter has been tested and certified according to G98 or G99, but only for units having most recent Firmware and Hardware version. All Segen stock meets that criteria. Supplier Part No: X1-FIT-5.0 Charger G4 Weight: 24.5 kg Rated Power: 5,000 W Data Sheet Solax X1 Fit EN

Read more less

Features of the Quattro 48/8000-110-100 Two AC Inputs & two AC Outputs The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.   Unique PowerAssist feature The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.   Virtually unlimited power thanks to parallel operation Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.   Remote Monitoring and Control When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more…   Want to have perfect control over your system from wherever you are whilst using your Quattro 48/8000, why not have a look at the Cerbo GX. Simply connect through the Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, a MFD or the VictronConnect App thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.   Watch the new video that explains all there is to know about installing the new Cerbo GX & GX Touch 50   The MK3-USB allows the Quattro to connect to a computer for configuration and firmware updates.

Read more less

Lighting Applications The cable is designed for lighting applications in solar energy systems.Energy consumption can be significantly reduced by the ability to dim lighting when needed. Lower power consumption will reduce the overall system cost. Also, the availability of the lighting will increase, even in case of a partially charged battery in low sun.The cable connects the TX output of the VE.Direct connector of a MPPT charger with the PWM dimmer input of the LED driver. Virtual load output The cable is designed for adding load output functionality to the larger MPPT chargers (MPPT 100/30 and larger) that do not have a load output. The cable connects the TX output of the VE.Direct connector of a MPPT charger with a battery protect or a solid state relay to switch a load on or off. Brand Victron Energy Manufacturer Part Number ASS030550500 Warranty 5 Years

Read more less

MPPT: Ultra Fast Maximum Power Point Tracking By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing. Remote Monitoring and Control Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations – even when there is no internet connection or phone signal nearby – you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally. Load output The intelligent Load output function prevents damage caused by running batteries ‘flat’. You can configure the voltage at which SmartSolar disconnects a load – thereby preventing excessive drain on your batteries. And here’s the clever bit: SmartSolar will attempt a 100% recharge every day. If it can’t – during periods of poor weather – it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery. Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers. VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week. Internal temperature sensor Compensates absorption and float charge voltage for temperature. Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers. Brand Victron Energy Manufacturer Part Number SCC110015060R GTIN 8719076040811 Battery Voltage 12/24 Auto Select Rated Charge Current 15A Nominal PV Power, 12V 220W Nominal PV Power, 24V 440W Max. PV Short Circuit Current 15A Maximum PV Open Circuit Voltage 100V Efficiency 98% Charge Algorithm Multi-stage adaptive Data Communication Port VE.Direct IP Rating IP43 (electronic components), IP22 (connection area) Dimensions H100 x W113 x D50mm Weight 0.6Kg Warranty 5 Years

Read more less

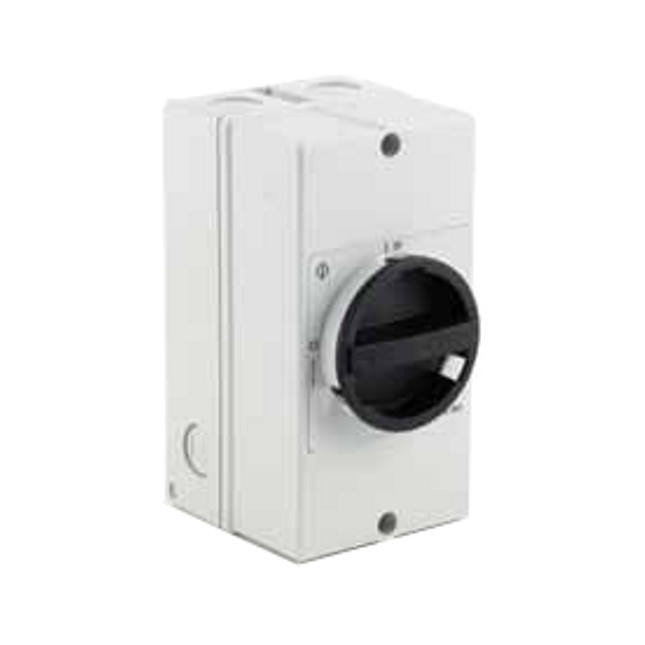

Part No: KG20-T104GB Switches - DC Isolators Kraus & Naimer DC Switch Switch - Disconnectors, 4 pole - for 2 strings             IP66/67 Protection             Black/Grey Padlockable Handle – lockable in the OFF-position             Class II compliant, Grey Insulated Enclosure             Switch Interlocked with lid to prevent opening in “ON” position             Rated for use in ambient temperatures of 50°C UK Please note: We will have reduced availbility of K&N switch gear for the immediate future. We have sourced alternative options for this period of low stock, please contact your account manager for more information. Supplier Part No: KG20 T104/GB-P103 KL51V Weight: 0.43 kg Poles: 4 Max Cable: 6 mm2 Max Voltage: 460 V Rated Current: 25 A Rated Voltage: 220 V Rated Current: 21 A Rated Voltage: 280 V Rated Current: 20 A Rated Voltage: 340 V Rated Current: 18 A Rated Voltage: 400 V Rated Current: 11 A Rated Voltage: 460 V Established in 1907 in Austria, Kraus & Naimer has grown to be one of world's highest quality and largest switch manufacturer in the world. For over 100 years Kraus & Naimer have been manufacturing top quality electrical switches and now offer the widest range of solar photovoltaic AC and DC isolators on the market. Every solar PV system requires at least one DC disconnector to isolate the PV array from the input to the inverter and at least one AC disconnector to isolate the inverter from the mains supply. Choosing a well proven and high quality product for these small but vital parts of any PV system is essential and there is no safer choice than Kraus & Naimer.

Read more less

Part No: X1-EPS-UK Storage Systems - Accessory Solax X1-EPS-UK - Emergency Power Supply Box - Backup BOX 100A EPS Box integrates two contactors which provides simple connection for users. It is compatible with X-hybrid E Series inverter. Configured with EPS Box, customers just need to connect several wires between inverter and EPS Box.   Please check if that’s sufficient in the property where you are planning your install. Please only wire essential loads to the EPS circuits. Supplier Part No: EPS Kit Weight: 3 kg Data Sheet X1 BOX EPS

Read more less

Part No: X3-HYBRID-G4-10.0-V2 Storage Systems - Hybrid Inverter High-efficient 150% PV oversized and 110% overload output Maximum 150% overload output Higher efficiency on charging and discharging, up to 97.5% Built-in shadow tracking functio Economic Maximum 16A DC input current, support for high power solar panel Store the surplus energy from PV to battery Low start output voltage makes inverter longer working time Less energy loss on battery to inverter Intelligent Switchover time <10ms Quick configuration with U-disk Lithium & Lead-acid battery compatible CT compatible, loads respond within 0.3s Intelligent loads management(e.g., Heat pump) On & Off-grid parallel function, up to 150kW 5 work modes, 2 charging periods available VPP ready, ancillary service in power market Three-phase unbalanced output 50% nominal output power on single phase at most Wi-Fi is now included with Solax X3-Hybrid-G4 V2 product so no need to purchase additional Wi-Fi equipment Supplier Part No: X3-Hybrid G4 10.0 V2 with Wi-Fi & CT Weight: 34 kg Rated Power: 10,000 W Min PPT Voltage: 180 V Max PPT Voltage: 950 V DC Startup Voltage: 180 V DC Shutdown Voltage: 0 V Max Input Voltage: 950 V Max DC Power: 10,000 W Max AC Power (5 Minutes): 10,001 W Surge AC Power (1 Second): 10,002 W Max DC Current: 24 A Max DC Inputs: 2 Has DC Fuses: 0 Connector: SUNCLIX   Included Connectors: 0 Euro Efficiency: 97 % Transformer: HF MPPT Quantity : 0 Has Integrated DC Switch: No Data Sheet X3 G4

Read more less

 Part No: X1-AC-3.6 Storage Systems - Charger-Inverter X1 AC Charger Upgrade a PV system with the X1 AC Coupled Inverter Charger from SolaX. Compatible with any brand (single phase) inverter, the X1 retro-fit has a maximum efficiency of up to 97%, is rated for indoor or outdoor use and can be remotely monitored via the XCloud. Additional features: High voltage battery support means thinner cables are required 7.5kW Max charge/discharge Wifi or LAN stick available separately Suitable for grid trading applications with less than 0.5s response time Charging from grid possible Natural Cooling, quiet and low maintenance Please note the minimum number of batteries per X1 AC inverter is 1 and maximum of 3. Please note batteries need to be the same capacity, its not possible to connect both 4.5kWh and 6.3kWh to one inverter. UK only: This inverter has been tested and certified according to G98 or G99, but only for units having most recent Firmware and Hardware version. All Segen stock meets that criteria. Please note this item it is not ‘EN50438 Ireland’ certified and should not be installed in Republic of Ireland. Supplier Part No: X1-AC-3.6 Charger Weight: 18 kg Rated Power: 3,680 W Data Sheet Solax X1 AC coupled

Read more less

Brand Victron Energy Manufacturer Part Number SCA000500000 Warranty 5 Years

Read more less

The Fox system is easy to install and will save you time spent on installation. Remote monitoring is also available via your smartphone or web portal. Uses high voltage batteries IP65 rated - suitable for outdoor installations Remote monitoring via web portal or smartphone Easy to expand battery capacity Dual MPPT - ensure optimal solar production High round-trip efficiency of 97% CT Clamps, meter and WiFi stick are included in the box   Supplier Part No: H1-5.0 (with EPS) Weight: 35.45 kg Rated Power: 5,000 W Min PPT Voltage: 80 V Max PPT Voltage: 550 V DC Startup Voltage: 75 V DC Shutdown Voltage: 75 V Max Input Voltage: 600 V Max DC Power: 6,500 W Max AC Power (5 Minutes): 6,500 W Surge AC Power (1 Second): 7,200 W Max DC Current: 27 A Max DC Inputs: 2 Has DC Fuses: 0 Connector: MC4   Included Connectors: 4 Euro Efficiency: 97 % Transformer: None MPPT Quantity : 2 Has Integrated DC Switch: Yes Warranty: 5 years

Read more less

1 UNIT IN STOCK Part No: SOL-RHI-3P5K-HVES-5G-DC Storage Systems - Hybrid Inverter This is the perfect three phase hybrid solution for medium to large houses and business use as well.  Product features 2 x MPPT and 4 DC input at max of 26A 3 x operation modes Self-consumption; time of use; off-grid backup 4 models range from 5KW to 10 KW output as well as backup Supporting Li-ion high voltage batteries ranging from 160 to 600VDC Time of use shifting peak shaving capabilities to grid Intelligent EMS function Supporting three-phase imbalance 24-hour monitor and management system Remotely control and upgrade any selected inverter Supplier Part No: Solis-RHI-3P5K-HVES-5G-DC Weight: 25.1 kg Rated Power: 5,000 W Min PPT Voltage: 160 V Max PPT Voltage: 850 V DC Startup Voltage: 160 V DC Shutdown Voltage: 160 V Max Input Voltage: 1,000 V Max DC Power: 8,000 W Max AC Power (5 Minutes): 5,500 W Surge AC Power (1 Second): 6,000 W Max DC Current: 26 A Max DC Inputs: 2 Has DC Fuses: 0 Connector: MC4   Included Connectors: 4 Euro Efficiency: 97.7 % Transformer: HF MPPT Quantity : 2 Has Integrated DC Switch: Yes Warranty: 5 years Designed by world leading research and development team made by professors and specialists from 8 countries, Solis inverters are praised by clients and customs all over the world due to the high quality and reliability with the feature of ultra wide input voltage, precise MPPT algorithm, and Max. efficiency over 97%, which made Ginlong brand one of the most performance-cost inverters in the world. Data Sheet English

Read more less
