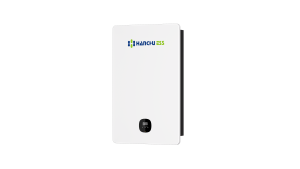

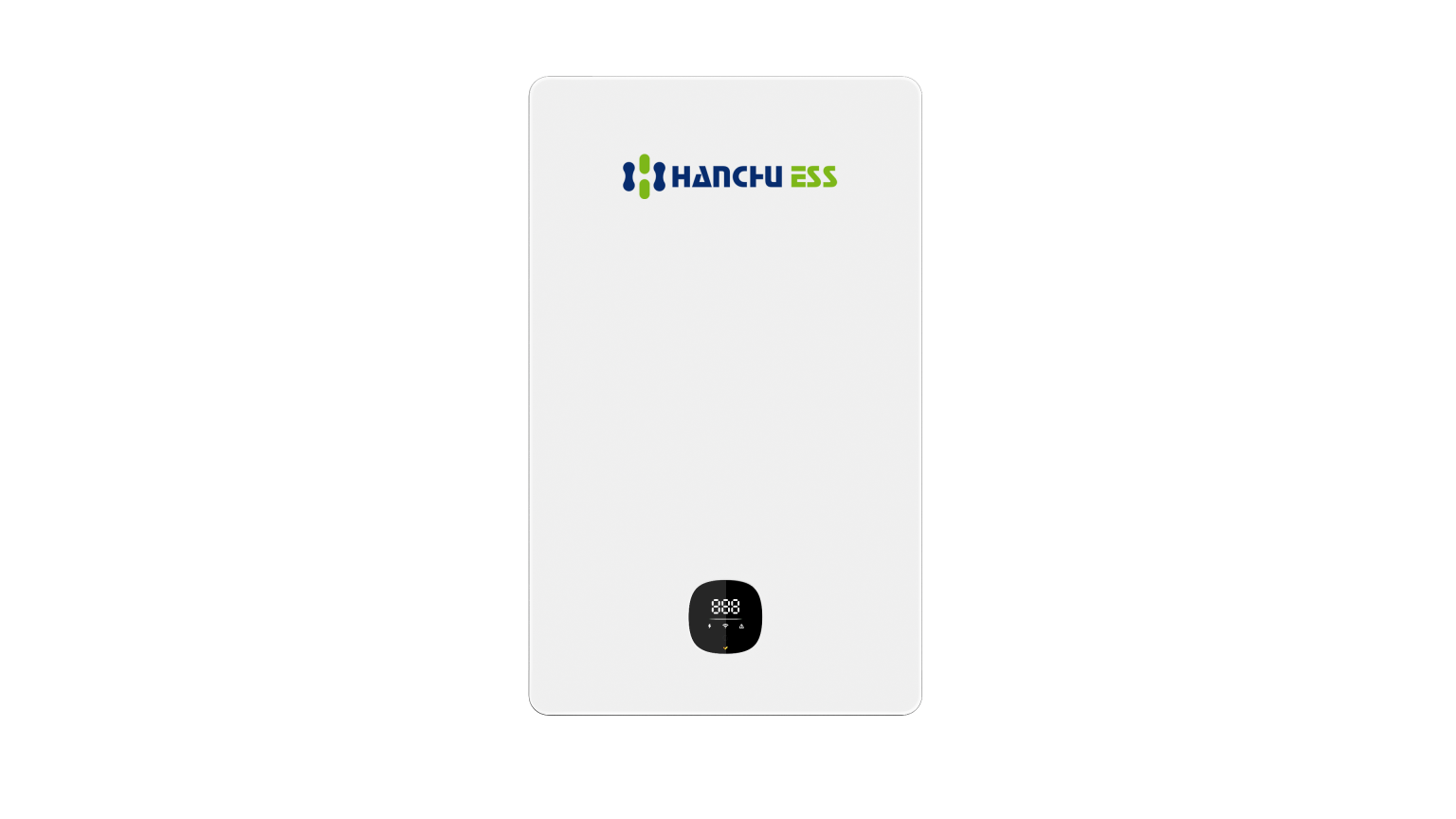

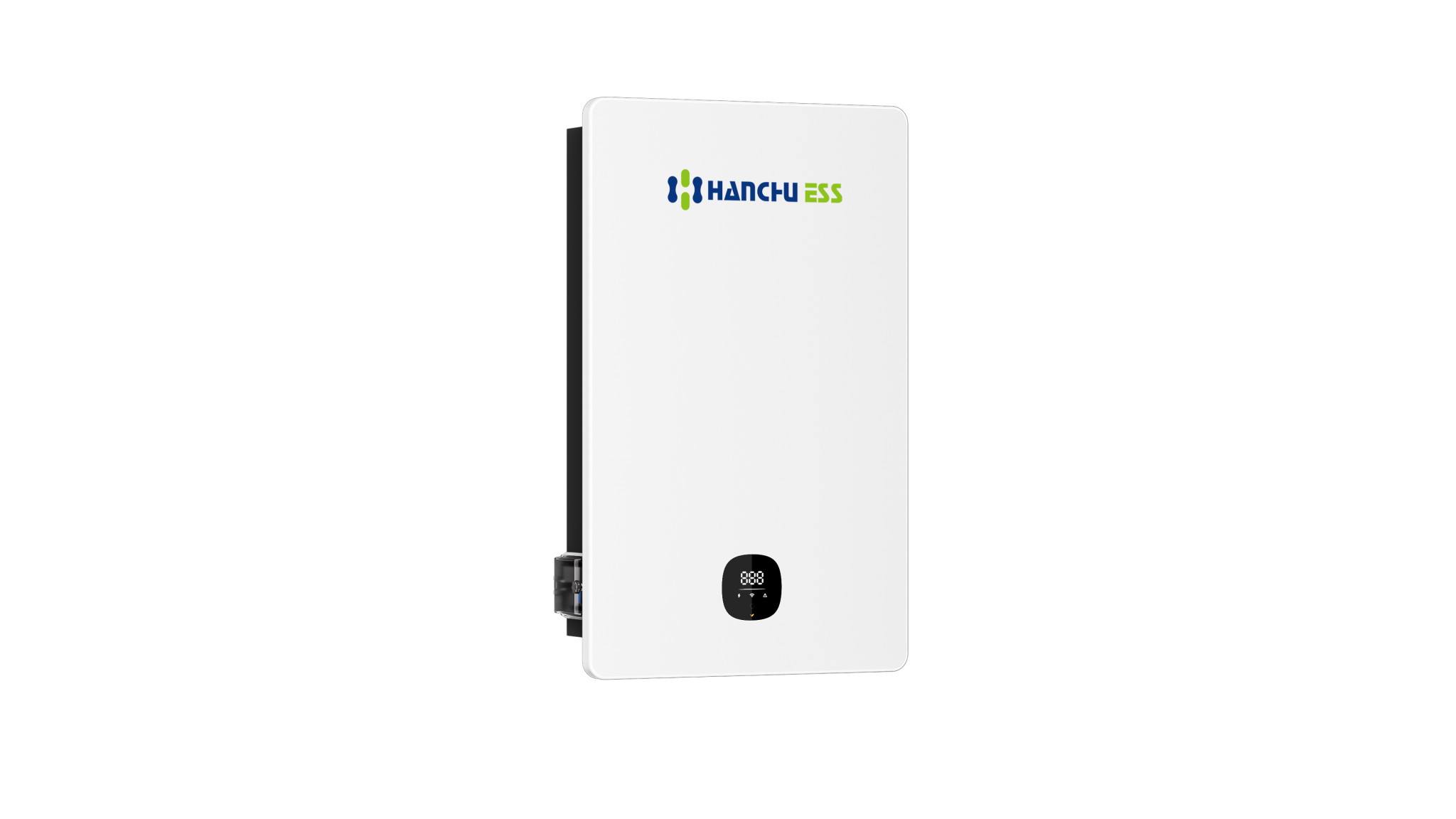

Hanchu Low Voltage Battery 5.12kWh (IP66 & Heated)

Compact and Minimalist Design

Features a sleek, lightweight design that is smaller and lighter compared to similar products, making it ideal for installation in limited spaces without specific spatial requirements.

Scalability

Supports the connection of up to 16 batteries in parallel, meeting a wide range of user requirements and allowing for simple addition of batteries anytime.

Easy and Quick Installation

Features user-friendly designs such as pre-assembled wiring harnesses and quick-connect installation, simplifying the setup process and reducing installation time.

Smart Monitoring with iESS:

The intelligent iESS platform continuously monitors battery performance, employing both hardware and software solutions to ensure operational safety and efficiency.

Octopus Tariff Integration:

Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates.

Smart Weather Compensation

Automatically adjusts settings in response to weather conditions to maximise energy efficiency.

• Cell Type: LFP
• Nominal Energy: 5.12 kWh
• Maximum Parallel Number: 16
• Nominal Voltage: 51.2V
• Operating Voltage Range: 43.2V-57.6V
• Dimension (W*D*H): 400*139*650mm
• Weight: 45.5kg
• Charging Temperature: From 0 to 50°C
• Discharging Temperature: From -10 to 55°C
• Depth of Discharge: 95%
• Nominal Charge Current: 100A
• Discharge Current: 100A
• Ingress Protection Degree: IP66
• Cooling Type: Natural convection
• Humidity: ≤95%
• Communication: CAN/RS485/WIFI/Bluetooth
• Battery Safety: IEC 62619/CE-EMC
• Transportation Certification: UN38.3
• Warranty: 12 years
