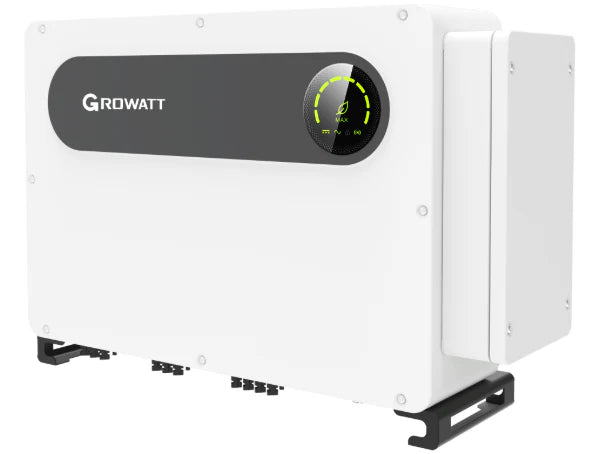

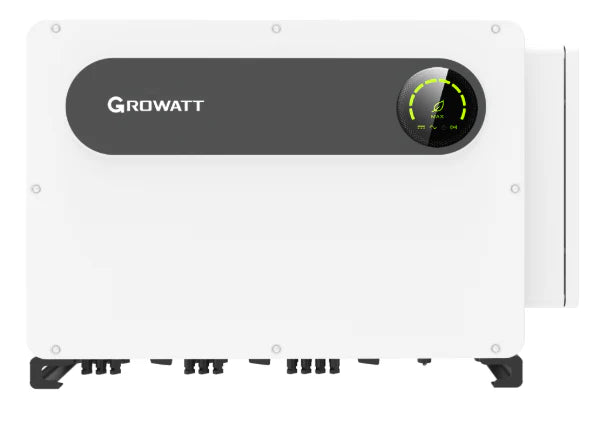

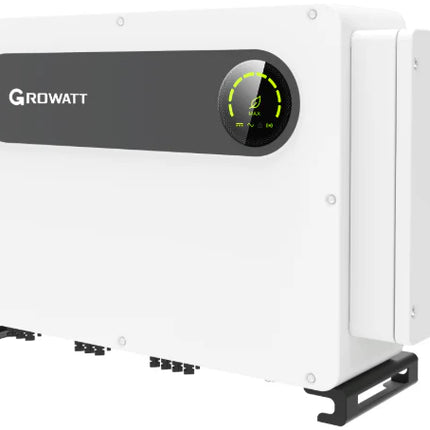

Growatt 100 KTL3 Three Phase Inverter - 10 MPPT

Description



The latest and most powerful Growatt inverters yet. The MAX TL3 inverters are ideal for medium-large scale commercial roofs and groundmount projects. With 6 MPPTs as standard, the inverters offer unparalleled design flexibility when it comes to string configurations. Lightning and fire protection are also included as standard, along with IV diagnosis on individual strings to detective any issues.



AC attributes
Max power: 100kW
Max current: 167.1A
Number of phases: 3
DC attributes
Number of MPPT 10
Strings per MPPT 2
V range of MPPT 180 - 1000V
Max Isc current 40A per MPPT
Max voltage 1100V
Start up voltage 195V
System
Max efficiency 98.8%
IP rating IP66
Weight 84kg
Dimensions 970*640*345mm
Warranty (extensions) 5 years (10 years)
Key features

  • 10 MPPTs fuse free design
  • Maximum efficiency of 98.8%
  • Smart I/V scan and diagnosis.
  • AC & DC type II SPD
  • IP66 protection
Product form

  The latest and most powerful Growatt inverters yet. The MAX TL3 inverters are ideal for medium-large scale commercial roofs... Read more

£3,989.00 Exc. VAT
£4,786.80 Inc. VAT

  • Quality
  • Reliabilty
  • Trusted

Description



The latest and most powerful Growatt inverters yet. The MAX TL3 inverters are ideal for medium-large scale commercial roofs and groundmount projects. With 6 MPPTs as standard, the inverters offer unparalleled design flexibility when it comes to string configurations. Lightning and fire protection are also included as standard, along with IV diagnosis on individual strings to detective any issues.



AC attributes
Max power: 100kW
Max current: 167.1A
Number of phases: 3
DC attributes
Number of MPPT 10
Strings per MPPT 2
V range of MPPT 180 - 1000V
Max Isc current 40A per MPPT
Max voltage 1100V
Start up voltage 195V
System
Max efficiency 98.8%
IP rating IP66
Weight 84kg
Dimensions 970*640*345mm
Warranty (extensions) 5 years (10 years)
Key features

  • 10 MPPTs fuse free design
  • Maximum efficiency of 98.8%
  • Smart I/V scan and diagnosis.
  • AC & DC type II SPD
  • IP66 protection
