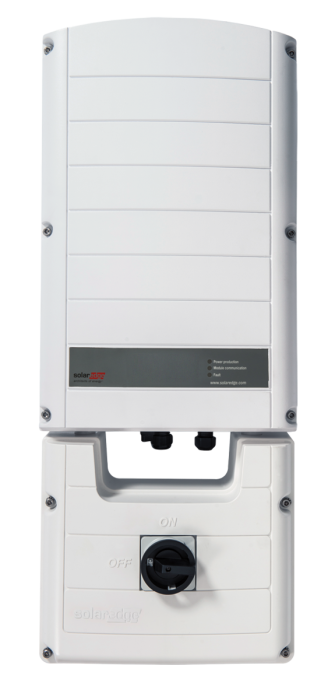

Three Phase Inverter, 33.3kW, Glands, DC safety unit with switch, AC & DC SPD, Fuses, RSD, Inverters with SetApp configuration
SE33.3K-RWR0IBNA4
These are outstanding inverters for medium to large commercial rooftop and ground mount installs. 30Amp Fuses for S1200 Optimiser usage.
Product Features
- Built-in module level monitoring with Ethernet, wireless and GSM communication
- Easy config using smartphone and SolarEdge SetApp
- Small and light to install
- Type 2 DC and AC surge protection
- Arc Fault protection
- IP65
- DC safety unit for external DC Isolators
- Supplier Part No: SE33.3K-RW00IBNA4
- Weight: 40 kg
- Rated Power: 33,300 W
- Min PPT Voltage: 750 V
- Max PPT Voltage: 1,000 V
- DC Startup Voltage: 0 V
- DC Shutdown Voltage: 0 V
- Max Input Voltage: 1,000 V
- Max DC Power: 50,000 W
- Max AC Power (5 Minutes): 33,300 W
- Surge AC Power (1 Second): 33,300 W
- Max DC Current: 48.25 A
- Max DC Inputs: 4
- Has DC Fuses: 0
- Connector: MC4
- Included Connectors: 0
- Euro Efficiency: 98 %
- Transformer: None
- MPPT Quantity : 0
- Has Integrated DC Switch: Yes
- Warranty: 12 years
