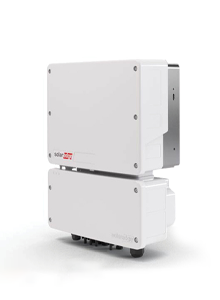

SolarEdge Home Hub Inverter for Storage and Backup Application
SE5000H - 5kW
Requires the SolarEdge Backup Interface (SE-SBI-1PH) for the Backup funciton to work.
- The ultimate home energy manager in charge of PV production, battery storage, backup operation during a power outage (may require additional hardware), and smart energy devices
- Record-breaking 99% weighted efficiency with up to 200% DC oversizing
- Small, lightweight, and easy to install
- Advanced safety features with integrated arc fault protection
- Enables module-level monitoring and full visibility of battery status, PV production, and self-consumption data
- A scalable solution that supports future homeowner needs through easy connection to a growing ecosystem of products
12-25 Year Warranty.
- Supplier Part No: SE5000H-RWBMNBF54
- Weight: 12 kg
- Rated Power: 5,000 W
- Min PPT Voltage: 380 V
- Max PPT Voltage: 480 V
- DC Startup Voltage: 0 V
- DC Shutdown Voltage: 0 V
- Max Input Voltage: 480 V
- Max DC Power: 10,000 W
- Max AC Power (5 Minutes): 5,000 W
- Surge AC Power (1 Second): 5,000 W
- Max DC Current: 13.5 A
- Max DC Inputs: 2
- Has DC Fuses: 0
- Connector: MC4
- Included Connectors: 0
- Euro Efficiency: 99 %
- Transformer: None
- MPPT Quantity : 2
- Has Integrated DC Switch: No
- Warranty: 10 years
