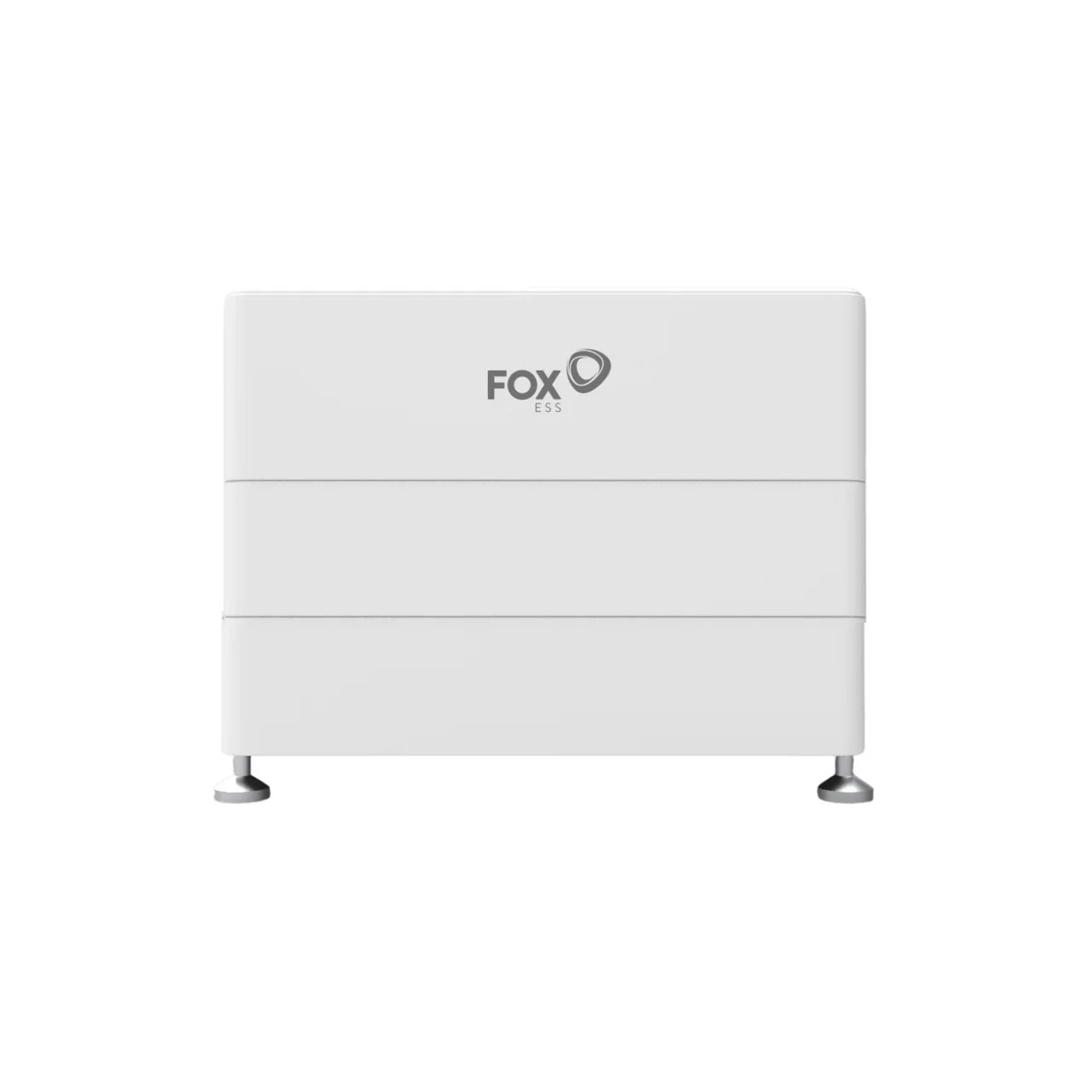

Fox ECS HV ECM2900 Connector Type A, 8.64kWh 1x Master 2x Slave

Description

Part No: FE-HV-EC-A-3-2.9-8.7 Storage Systems - Li-ion Battery Pack
    This part is made up of the following items:
    2 x FE-HV-ECS-2900-4A2C Fox ECS 2.88kWh HV Battery (Slave)-V2.0 Connector A
    1 x FE-HV-ECM-2900-4A2C Fox ECS 2.88kWh HV Battery (Master)-V2.0 Connector A

    Fox ECS 2.9kWh CONNECTOR TYPE A - Stack of 3 (8.64kWh Useable Storage) Incl. Master

    ECM2900-4A2C

    • 2.88kWh Capacity
    • Scalable to 20.16kWh
    • 90% Depth of Discharge
    • Wide Temperature Tolerance
    • Easy Installation
    • CAN/RS485 Communication
    • High Voltage

    The quick & easy install feature allows for more ECM2900 battery modules to be added post installation.

    Weight: 99.5kg

    Dimensions (Width, Hight, Depth): 570mm x 470mm x 380mm

    Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.

    This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves).

    IMPORTANT REMINDER: When increasing the capacity of this battery stack, make sure the battery is the same connector type. We only stock the VERSION 2's of the ECS batteries. We stock both the Connector type A  and Connector type B variations.

    Weight: 108.35 kg
    Battery Type: Lithium Ion
    Nominal Energy: 8640 Wh
    Depth of discharge: 90.00 %
    Voltage: 172 V
    Continuous Discharge Rate (Normal Use): 8640 W
    Maximum Discharge Rate (5 Minutes): 8640 W
    Surge Discharge Rate (15 Seconds): 11232 W
    Maximum Charge Rate (5 Minutes): 8640 W
    Fox ESS
    Product form

    Part No: FE-HV-EC-A-3-2.9-8.7 Storage Systems - Li-ion Battery Pack This part is made up of the following items: 2 x FE-HV-ECS-2900-4A2C Fox... Read more

    £2,203.69 Exc. VAT
    £2,644.43 Inc. VAT

    • Quality
    • Reliabilty
    • Trusted

    Description

    Part No: FE-HV-EC-A-3-2.9-8.7 Storage Systems - Li-ion Battery Pack
      This part is made up of the following items:
      2 x FE-HV-ECS-2900-4A2C Fox ECS 2.88kWh HV Battery (Slave)-V2.0 Connector A
      1 x FE-HV-ECM-2900-4A2C Fox ECS 2.88kWh HV Battery (Master)-V2.0 Connector A

      Fox ECS 2.9kWh CONNECTOR TYPE A - Stack of 3 (8.64kWh Useable Storage) Incl. Master

      ECM2900-4A2C

      • 2.88kWh Capacity
      • Scalable to 20.16kWh
      • 90% Depth of Discharge
      • Wide Temperature Tolerance
      • Easy Installation
      • CAN/RS485 Communication
      • High Voltage

      The quick & easy install feature allows for more ECM2900 battery modules to be added post installation.

      Weight: 99.5kg

      Dimensions (Width, Hight, Depth): 570mm x 470mm x 380mm

      Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.

      This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves).

      IMPORTANT REMINDER: When increasing the capacity of this battery stack, make sure the battery is the same connector type. We only stock the VERSION 2's of the ECS batteries. We stock both the Connector type A  and Connector type B variations.

      Weight: 108.35 kg
      Battery Type: Lithium Ion
      Nominal Energy: 8640 Wh
      Depth of discharge: 90.00 %
      Voltage: 172 V
      Continuous Discharge Rate (Normal Use): 8640 W
      Maximum Discharge Rate (5 Minutes): 8640 W
      Surge Discharge Rate (15 Seconds): 11232 W
      Maximum Charge Rate (5 Minutes): 8640 W
      Fox ESS
