FE-H3-PRO-20.0

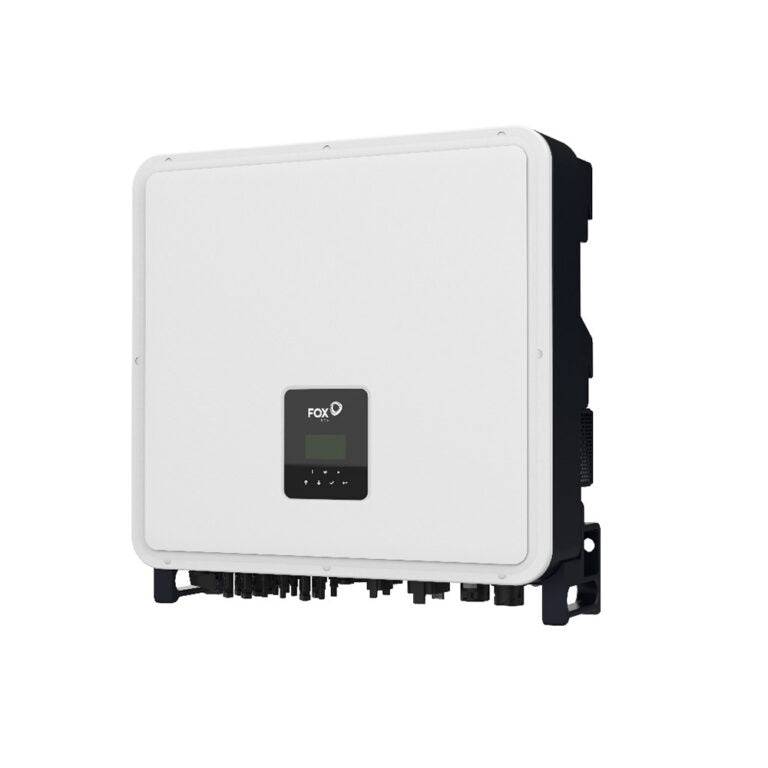

Fox ESS H3 Pro 20kW 3PH Hybrid Inverter

Harness the power of the sun day and night with FoxESS' groundbreaking line of hybrid inverters.

Easy installation - Flexible configuration, Plug & Play, built-in fuse protection.
High Voltage - Includes high-voltage batteries for maximum round-trip efficiency.
IP65 Rated - Engineered to last with maximum flexibility. Suitable for outdoor installation.
Remote Monitoring - Monitor remotely via app or web portal.

Easily expand your system by adding extra batteries. There are three battery series you can choose from, which enables a storage capacity of up to 86.40 kWh. A max. of 10 storage inverters can be connected in parallel which allows you to enlarge the system scale based on different installation requirements.

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.

£2,544.77

£3,053.72 INC. VAT

Login or register for trade discounts

In stock

Fast shipping

Collection available More info

Overview

Harness the power of the sun day and night with FoxESS' groundbreaking line of hybrid inverters.

Easy installation - Flexible configuration, Plug & Play, built-in fuse protection.
High Voltage - Includes high-voltage batteries for maximum round-trip efficiency.
IP65 Rated - Engineered to last with maximum flexibility. Suitable for outdoor installation.
Remote Monitoring - Monitor remotely via app or web portal.

Easily expand your system by adding extra batteries. There are three battery series you can choose from, which enables a storage capacity of up to 86.40 kWh. A max. of 10 storage inverters can be connected in parallel which allows you to enlarge the system scale based on different installation requirements.

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.

Part No: FE-H3-PRO-20.0 Storage Systems - Hybrid Inverter

Supplier Part No: FE-H3-PRO-20.0
Weight: 52.5 kg
Rated Power: 20,000 W
Min PPT Voltage: 160 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 160 V
DC Shutdown Voltage: 1,000 V
Max Input Voltage: 1,000 V
Max DC Power: 30,000 W
Max AC Power (5 Minutes): 20,000 W
Surge AC Power (1 Second): 22,000 W
Max DC Current: 96 A
Max DC Inputs: 6
Has DC Fuses: 1
Connector: MC4
Included Connectors: 6
Euro Efficiency: 97.4 %
Transformer: N/A
MPPT Quantity : 6
Has Integrated DC Switch: Yes
Warranty: 5 years
