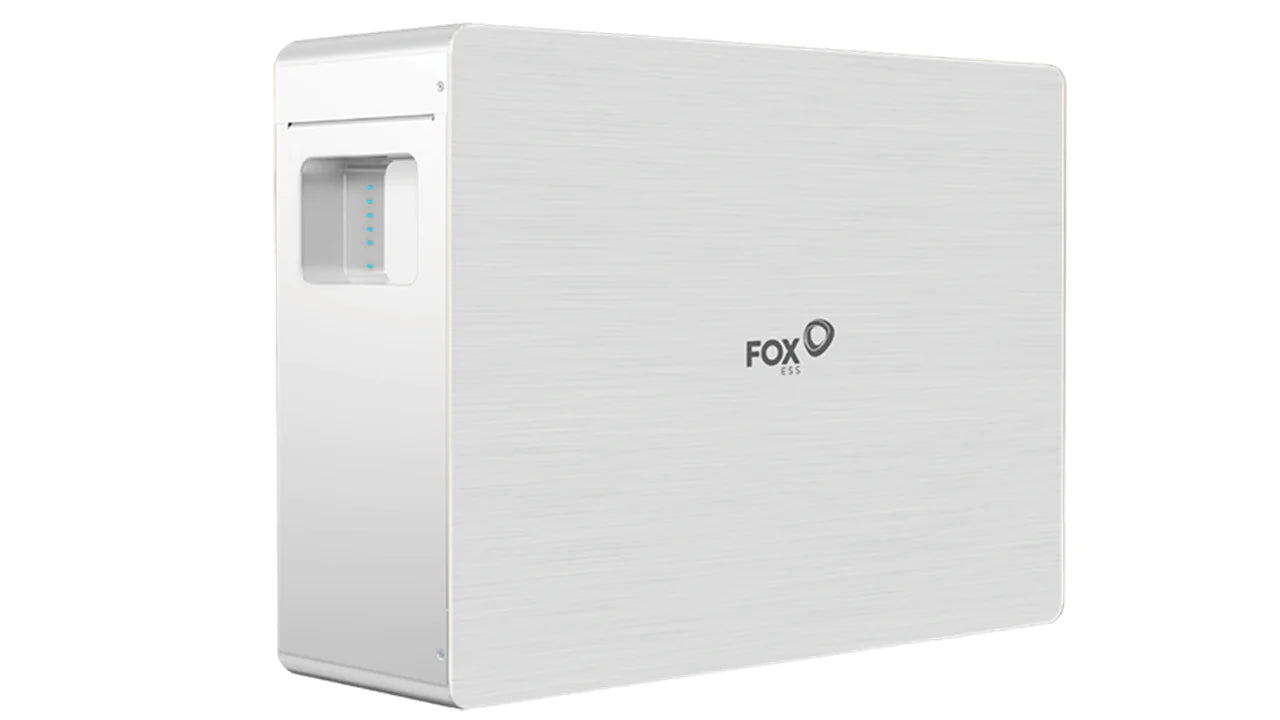

Fox LV52
The LV52 are high-performance, scalable, low-voltage battery storage modules. Rated life span of more than 6,000 cycles. Storage capacity is expandable to 42.56Wh. 95% charge/discharge efficiency. Easy, plug and play installation.
- 90% Depth of Discharge
- Wide Temperature Tolerance
- Easy Installation
- ≥6000 Life Cycles
- CAN/RS485 Communication
- Low Voltage
Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.
The LV52 and the LV54 ARE compatible with eachother.
When installing 2-4 batteries, two combiner box's will be required.
The LV52 is not compatible with the LV5200
Please note: The CAN cable currently shipped with the Fox ESS LV54 battery is made-up at one end only (the battery end). The Installer will need to make up the cable at the inverter end.
Pending Documents: Warranty.
- Supplier Part No: LV52
- Weight: 54 kg
- Battery Type: Lithium Ion
- Nominal Energy: 5120 Wh
- Depth of discharge: 90.00 %
- Voltage: 51 V
- Continuous Discharge Rate (Normal Use): 5120 W
- Maximum Discharge Rate (5 Minutes): 5120 W
- Surge Discharge Rate (15 Seconds): 7500 W
- Maximum Charge Rate (5 Minutes): 5120 W
