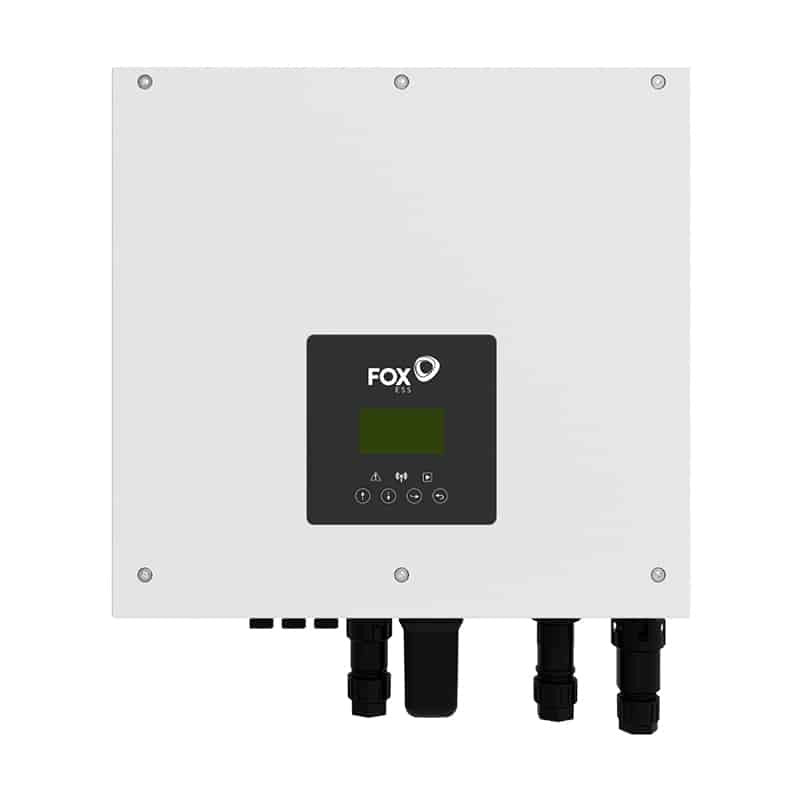

Fox H1 6.0kW Hybrid Inverter G2

Description

Part No: FE-H1-6.0-G2 Storage Systems - Hybrid Inverter

    The Fox system is easy to install and will save you time spent on installation. Remote monitoring is also available via your smartphone or web portal.

    The FoxESS inverters can be configured with the following batteries:

    CT Clamps and WiFi stick are included in the box. A second CT will be required if there's another generator set (i.e PV, wind or other).

    A meter will be required for >30m distance between inverter and incoming power connection point.

    Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.

    Supplier Part No: FE-H1-6.0-G2
    Weight: 23 kg
    Rated Power: 6,000 W
    Min PPT Voltage: 80 V
    Max PPT Voltage: 550 V
    DC Startup Voltage: 75 V
    DC Shutdown Voltage: 601 V
    Max Input Voltage: 600 V
    Max DC Power: 9,000 W
    Max AC Power (5 Minutes): 6,000 W
    Surge AC Power (1 Second): 6,600 W
    Max DC Current: 32 A
    Max DC Inputs: 2
    Has DC Fuses: 0
    Connector: MC4
    Included Connectors: 4
    Euro Efficiency: 97 %
    Transformer: None
    MPPT Quantity : 2
    Has Integrated DC Switch: No
    Warranty: 5 years
    Fox ESS
    Product form

    Part No: FE-H1-6.0-G2 Storage Systems - Hybrid Inverter The Fox system is easy to install and will save you time spent... Read more

    £684.45 Exc. VAT
    £821.34 Inc. VAT
